Disassembly
Disassembly
–
–
Drain Pump
Drain Pump

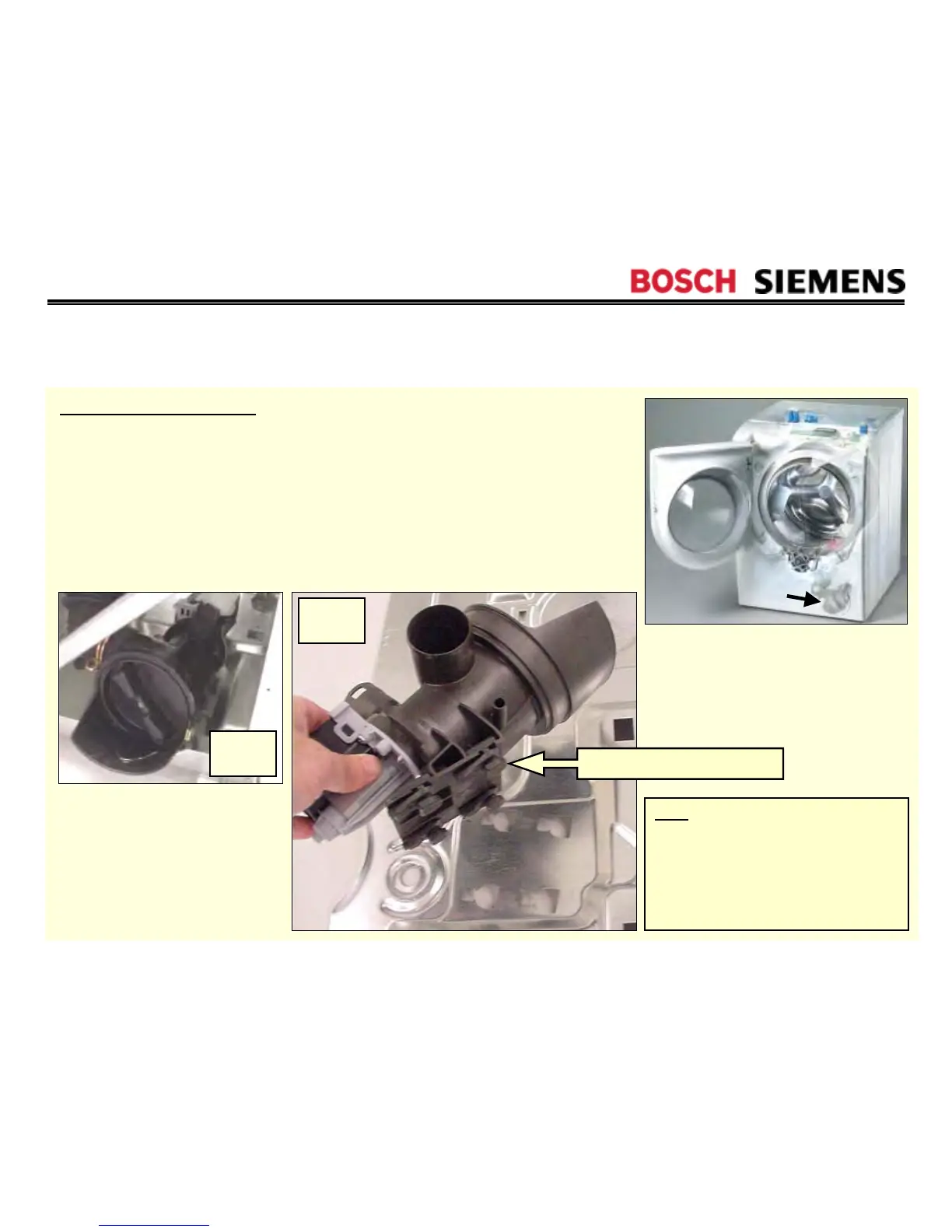

To remove drain pumps:
• Remove front panel
• Loosen and remove hoses
• Disconnect wire harness
• Carefully slide pump toward rear of washer,
then lift it out of washer (taking care to not
damage the four rubber feet).
HINT: Drain pumps are mounted on
four rubber feet to dampen vibration &
noise. To remove drain pumps,
carefully slide them toward rear of
washers. To install them, carefully
insert all four feet into notches in
washer base, then slide them forward.
Drain
pump
Note four mounting feet
Drain
pump
Current production pumps are beige
color – earlier WFMC pumps were black.
