Bosch WFMC3200UC - Disassembly: Drum Drive Motor; Removing the Drum Drive Motor

2nd Edition/Revision 0 (4/28/04)
R020031E
31
/
Disassembly
Disassembly
–
–
Drum Drive Motor
Drum Drive Motor

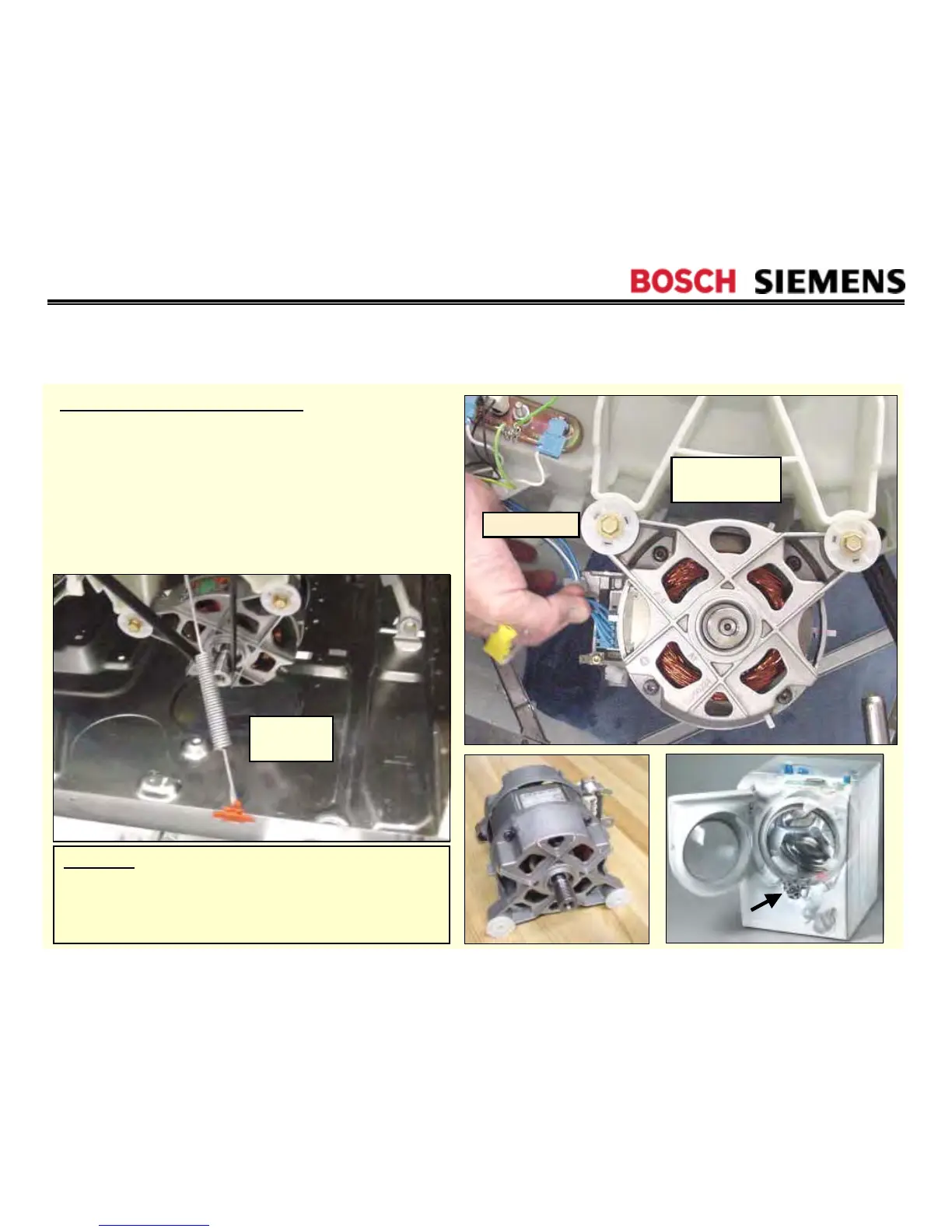

To remove drum drive motors:
• Remove rear panel
• Remove rear tub spring
• Remove drum belt
• Disconnect wire harnesses
• Remove two motor bolts, then pull motor out
toward rear of washer
WARNING: The drum drive motor & tub are grounded
through the motor control. Since the tub is plastic and
the motor is isolated from the frame, Its critical the
ground leads from the tub, drive motor & motor control
are connected properly.
Drum drive
motor
Rear tub
spring
10mm bolts
