Resetting Door Locks (2)
Resetting Door Locks (2)

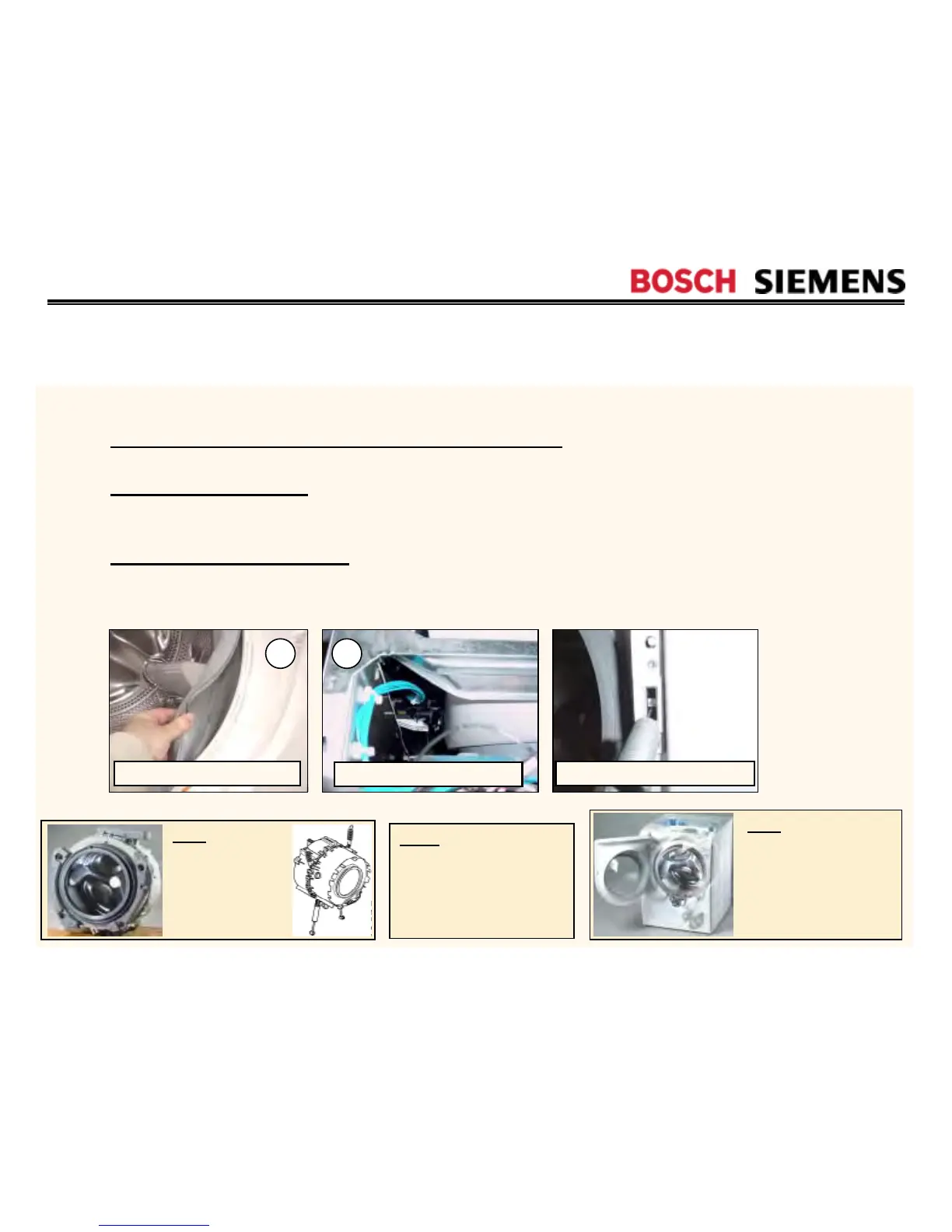

There are three ways to reset door locks (shown below) – each has advantages & disadvantages:
1. Access past door seal (shown on previous page) – eliminates any chance of cosmetic
damage, but requires reattaching door seal spring (which can be tricky).
2. Access from top panel
– provides access to door lock without removing door seal, but allows
scratching of fascia panel and screw caps. To access door lock from top, remove (4) fascia
panel screw caps, remove (4) fascia panel screws and carefully lift fascia panel up.
3. Pulling door lock latch out
– provides quickest repair & doesn’t require removing parts for
access, but allows scratching of door lock. To pull latch out, reach into lock with a strong steel
loop, place loop behind latch and pull latch out. Some force is required.
HINT: Locked doors
open when door
latches aren’t properly
seated into door locks.
Adjust door until latch
fits properly into door
lock.
NOTE: Doors can
become misaligned if
leaned on heavily.
Advise customers against
leaning on doors for
support.
Access past door seal
HINT: Tub is
suspended from
springs and can
easily be moved
back for better
access.
Access from top panel
Pulling door lock latch out
