Control
Control

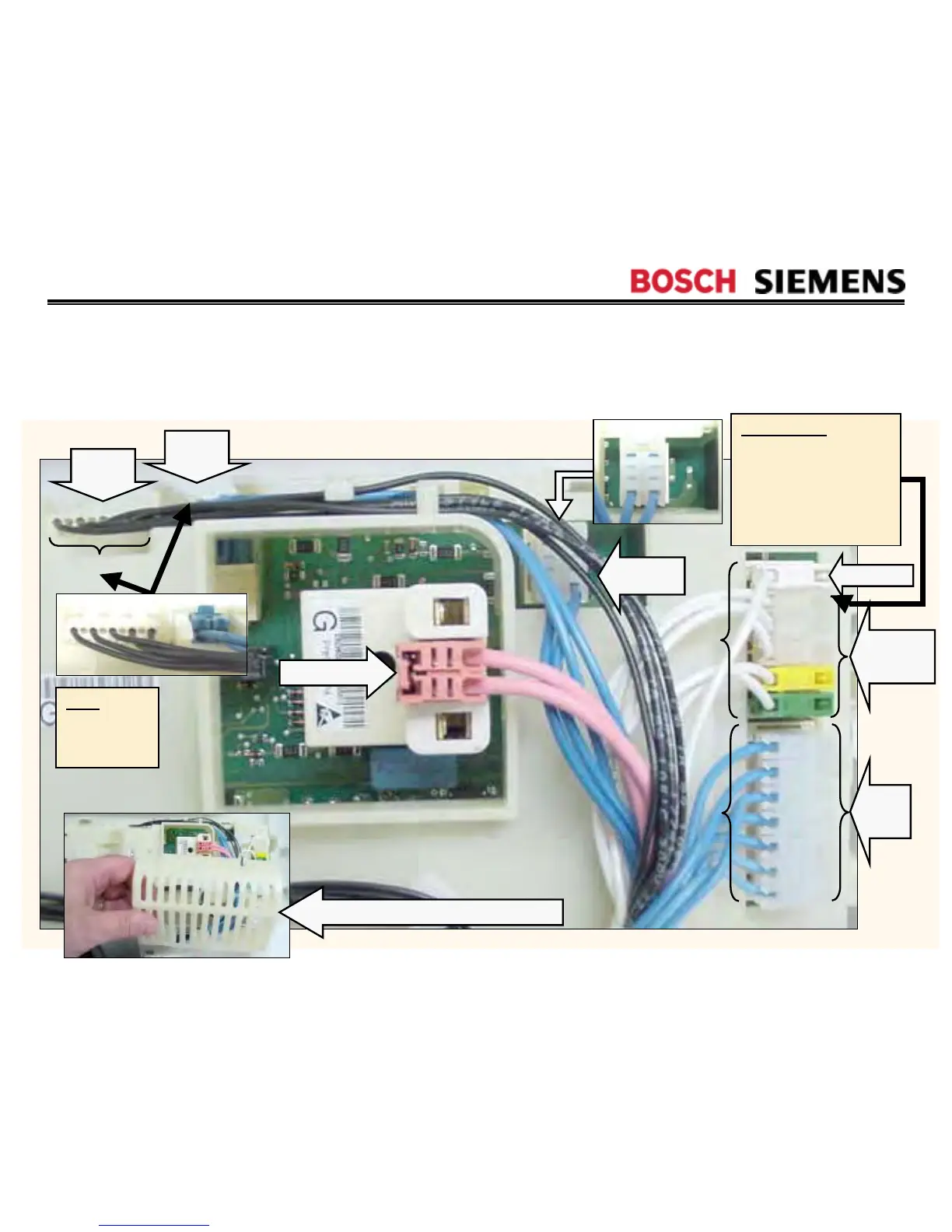

Module Wire & Terminal Colors
Module Wire & Terminal Colors
51
120V input
2-PK
5-BK
2-BL
6-WH
7-BL
WH
clear
YE
GN
WH
PK
BL
HINT: This
will help with
reconnecting
wires.
WH
To water
valves
To
pressure
switch
To
door
lock
To motor
control
To drain
pump
IMPORTANT: Its
possible to miswire the
WH, YE & GN
terminals. Make sure
the terminals are in the
right order & direction
(wires on left side).
2-BL
WH
Remove cover to access wires
BL
WH
/
To heater
