2nd Edition/Revision 0 (4/28/04)
R020031E
WFMC/WFXD Service Tips
WFMC/WFXD Service Tips
–
–
Test Program (2A): Fault
Test Program (2A): Fault
Code Displays
Code Displays
58

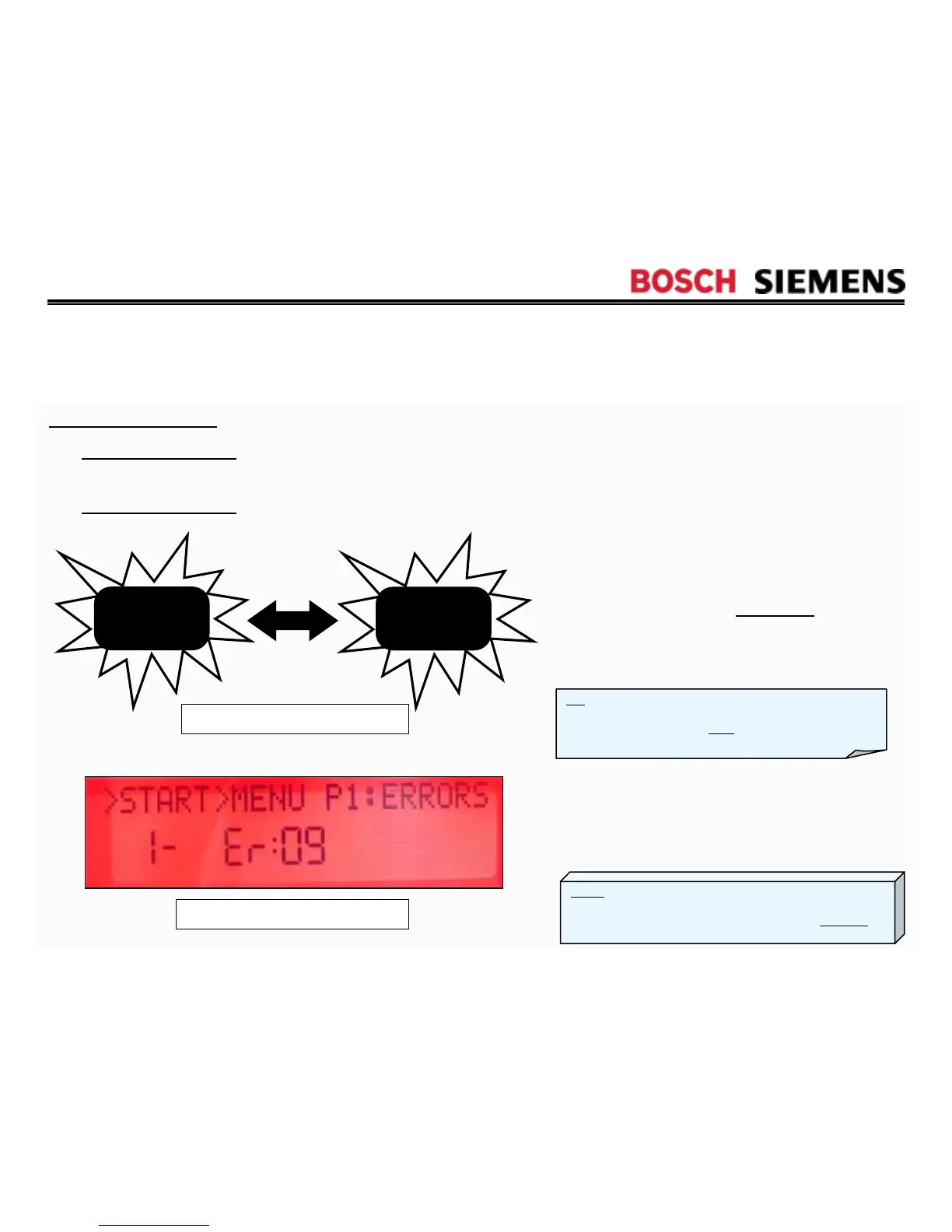

WFMC32/WFXD52 fault code
displays flash – alternating
between fault code (E:09) and
wash when fault occurred (C:01)
Viewing fault codes:
• WFMC32/WFXD52 displays alternate between fault code (e.g. E:01) & when fault occurred on in last 8
washes (e.g. C:00) – shows C:00 if fault didn’t occur.
• WFMC64/WFXD84 displays show fault code & when fault occurred on in last 8 washes (e.g. 0 - Er:01).
WFMC64/WFXD84 Displays
WFMC32/WFXD52 Displays
E:09
C:01
WFMC64/WFXD84 displays
show fault code (Er:09) and
wash when fault occurred (1)
NOTE: Some control modules have been replaced since
fault codes stored in module or motor control can’t be
cleared. Modules are operating properly and shouldn’t
be
replaced to clear fault codes.
/
TIP: Washers are designed to give a service history, not
show only latest fault codes. Since fault codes stored in
module or motor control can’t
be cleared, don’t expect
fault codes to be reset to “0” when repairs are made.
