WFMC/WFXD Service Tips
WFMC/WFXD Service Tips
–
–
Test Program (1E):
Test Program (1E):
WFMC64/WXFD84 Text Displays
WFMC64/WXFD84 Text Displays

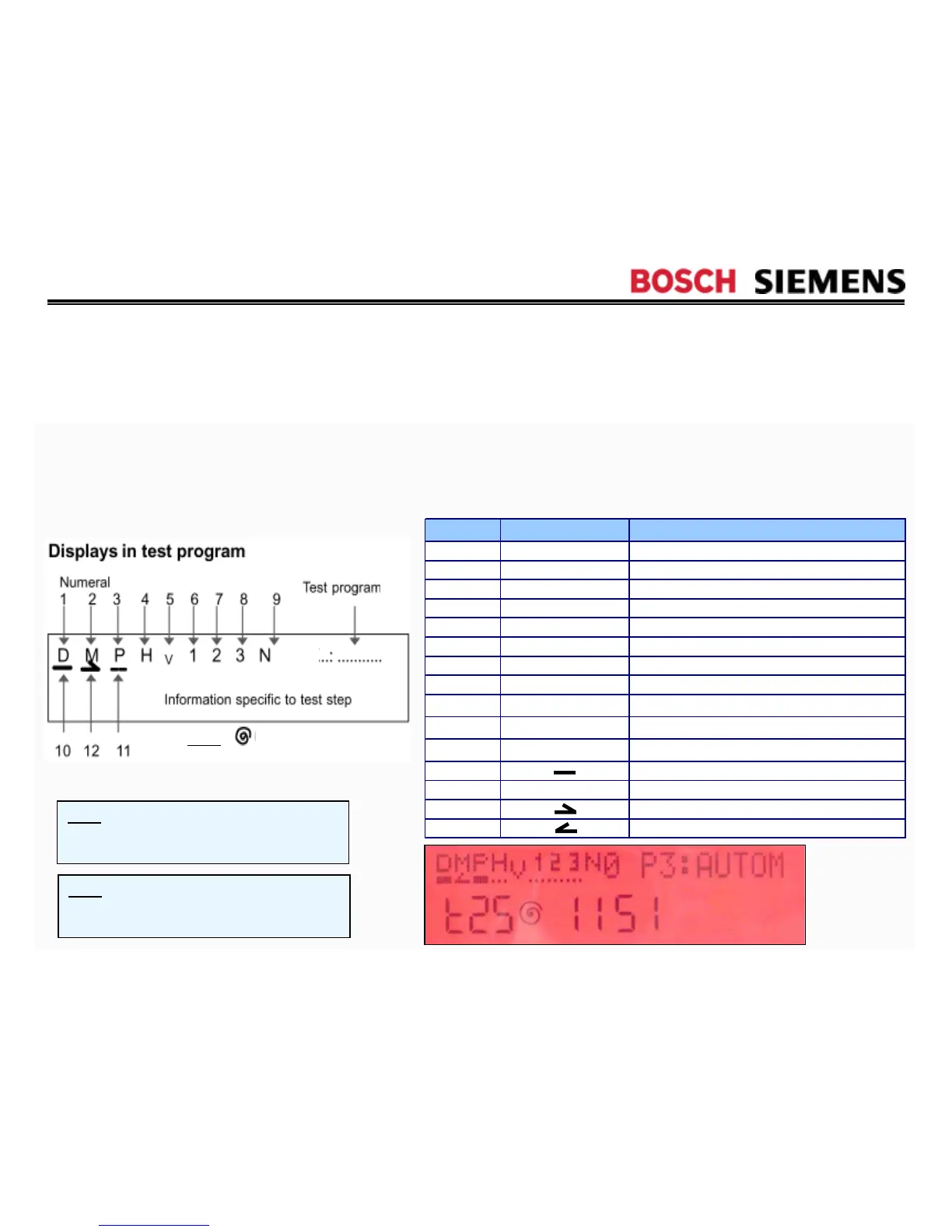

WFMC64/WFXD84 washers have full text displays showing which devices are running at each
point during each test. They’re helpful for visually determining whether washers are properly
filling, draining & spinning.
Numeral Displayed letter Component/Function
1DDoor
2MMotor
3PPump
4HHeater
5VValve
6 1 Cold water valve (1) - part of dual valve
7 2 Cold water valve (2) - part of dual valve
8 3 Hot water valve (3)
9N
0
No water -- below heating water level
9N
H
Heating water level (min. to heat)
9N
D
Door water level (reached door)
10 Component actuated
11 …… Component not actuated
12 Clockwise rotation (cw)
12 Counterclockwise rotation (ccw)
HINT: If Start/Pause light doesn’t come
on for some tests, door is open. Turn off
washer, then close door.
HINT: Using the test program can cut
down repair times & eliminate repeat calls
from misdiagnosing problems.
NOTE: “ ” = drum speed (RPM) &
“n” = pressure switch reading.
0
P
