Bosch WFMC64 - Top & Rear Panels Disassembly

Rev 0 (1/17/08)
4
Disassembly
Disassembly
–
–
Top & Rear Panels (1)
Top & Rear Panels (1)

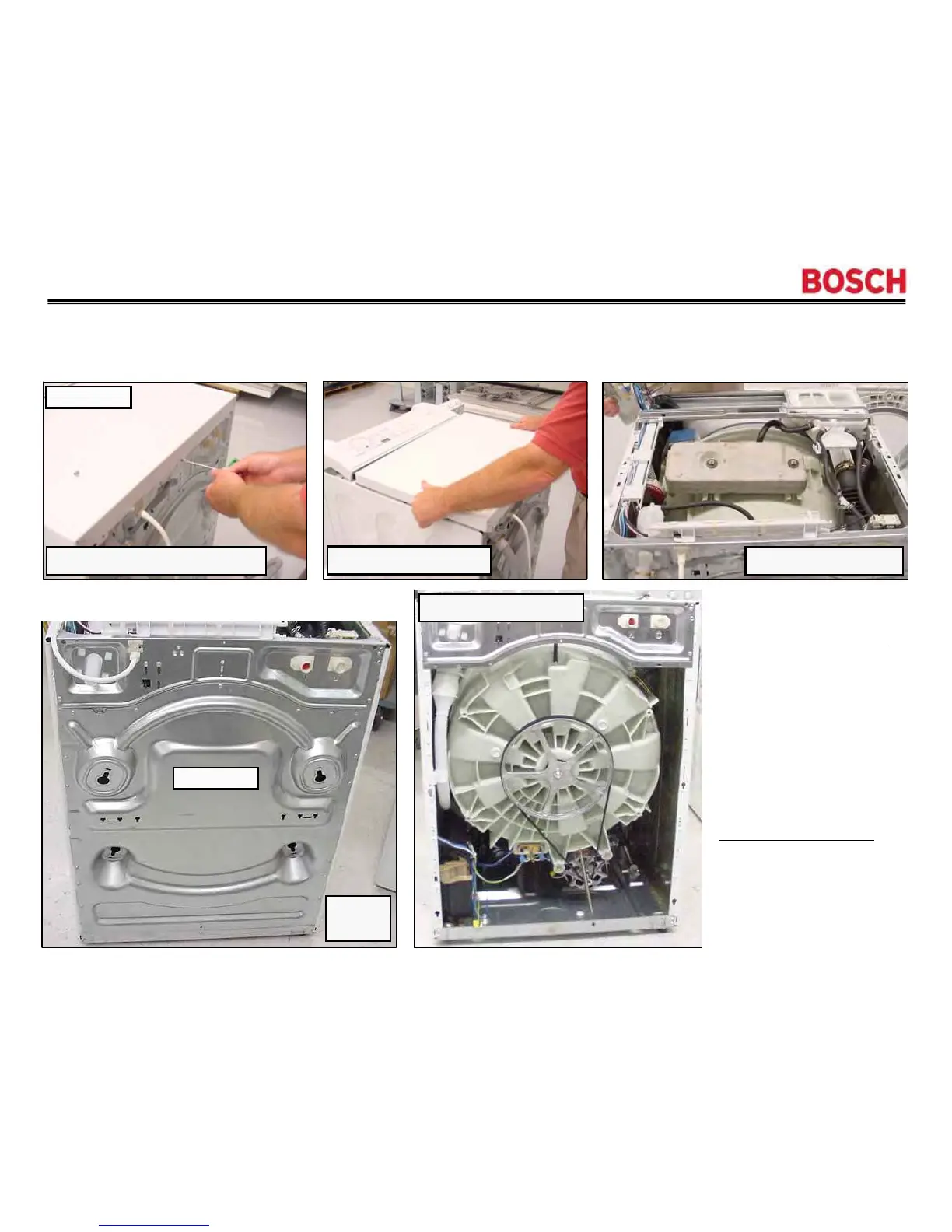

To remove rear panel to
access drive motor and
rear of drum, remove
(18) T-20 screws.
There’s no need to
remove the top rear
panel (with “H” & “C”
stampings).
To remove top panel
(for
easier parts access),
remove (3) T-20 screws
and slide panel to rear of
washer.
Remove top panel
Remove top panel screws
Rear
panel
Top panel removed
Rear panel removed
T-20 screws
T-20 screws
