Bosch WFMC64 - Drum Drive Motor Disassembly

Rev 0 (1/17/08)
6
Disassembly
Disassembly
–
–
Drum Drive Motor
Drum Drive Motor

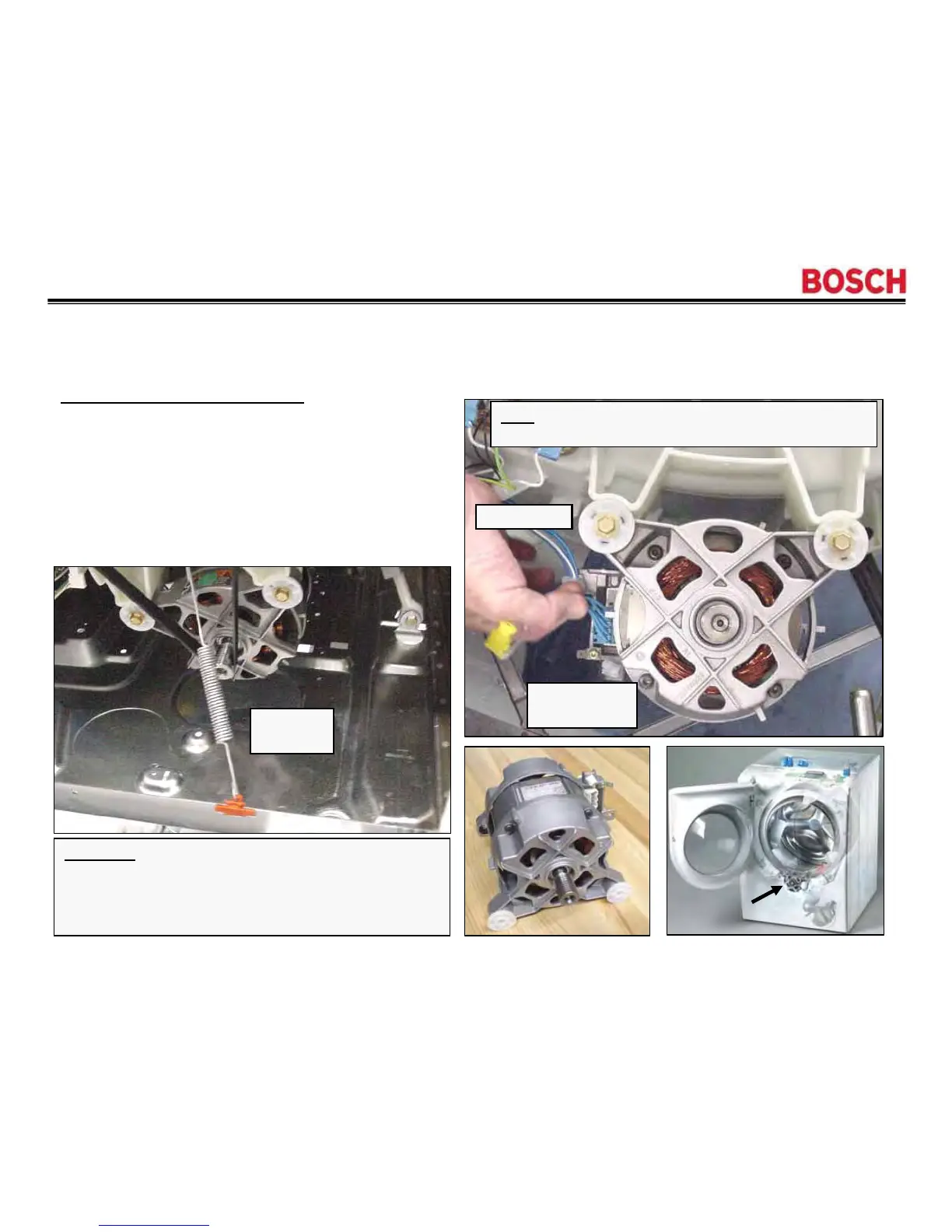

To remove drum drive motors:
• Remove rear panel
• Remove rear tub spring
• Remove drum belt
• Disconnect wire harnesses
• Remove two motor bolts, then pull motor out
toward rear of washer
WARNING: The drum drive motor & tub are grounded
through the motor control. Since the tub is plastic and the
motor is isolated from the frame, Its critical the ground
leads from the tub, drive motor & motor control are
connected properly.
Drum drive
motor
Rear tub
spring
10mm bolts
HINT: Drum drive motors and controls have changed a
few times – motors and motor controls can’t be mixed.
702_58300000133618_ara_en_a
