Disassembly
Disassembly
–
–
Front Panel (2)
Front Panel (2)

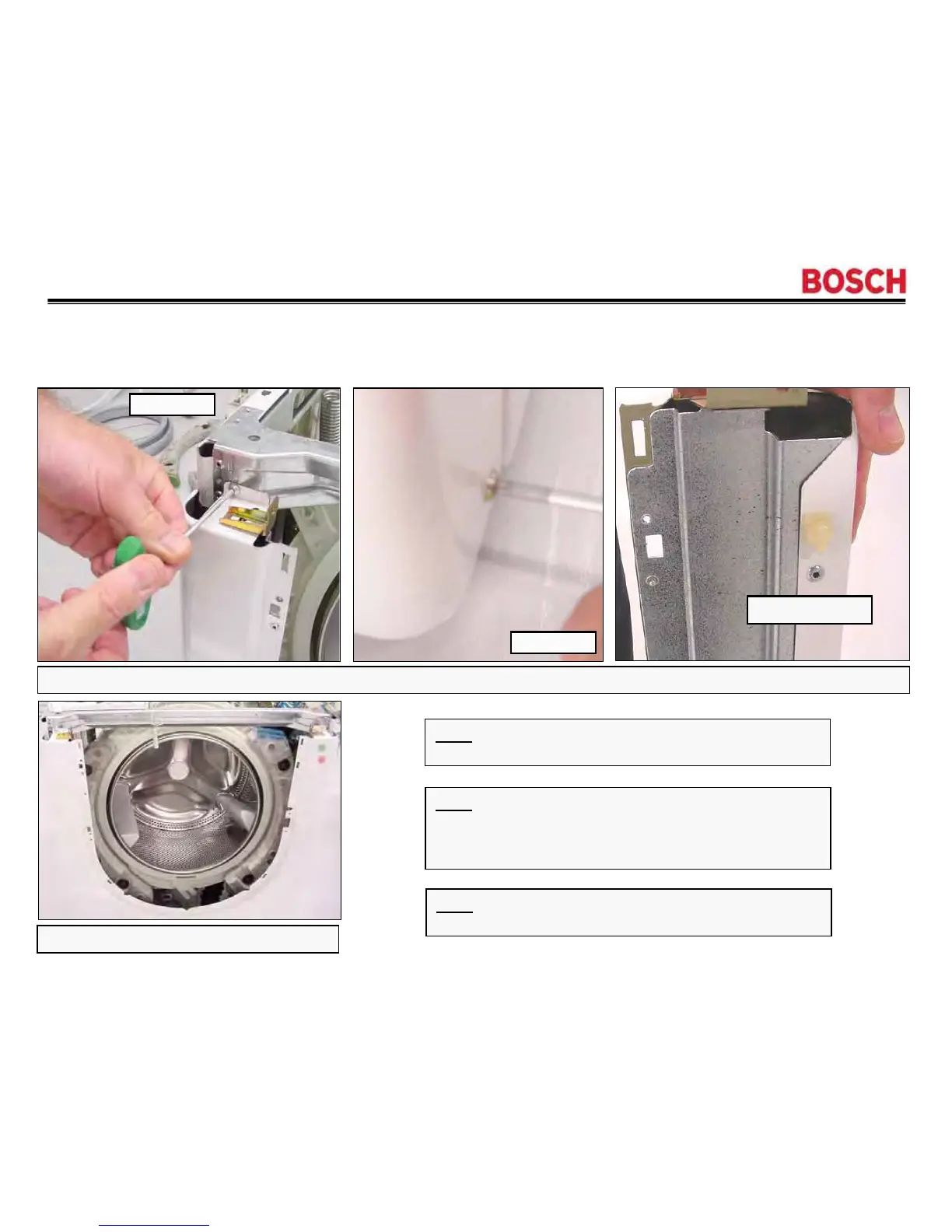

Front panel tab
Remove front panel
Remove top front panel screws Remove bottom front panel screws Note front panel mounting tabs
HINT: Removing front panel at this point will make
removing front counterweights easier.
HINT: Front panels are mounted using six (6) plastic tabs
– three (3) on each side. Lift front panels up to remove
them. When reassembling front panels, carefully align tabs
and don’t use excessive force to avoid breaking tabs.
HINT: Most washer screws require T-20 Torx
screwdrivers.
T-20 screws
T-20 screws
