Product features

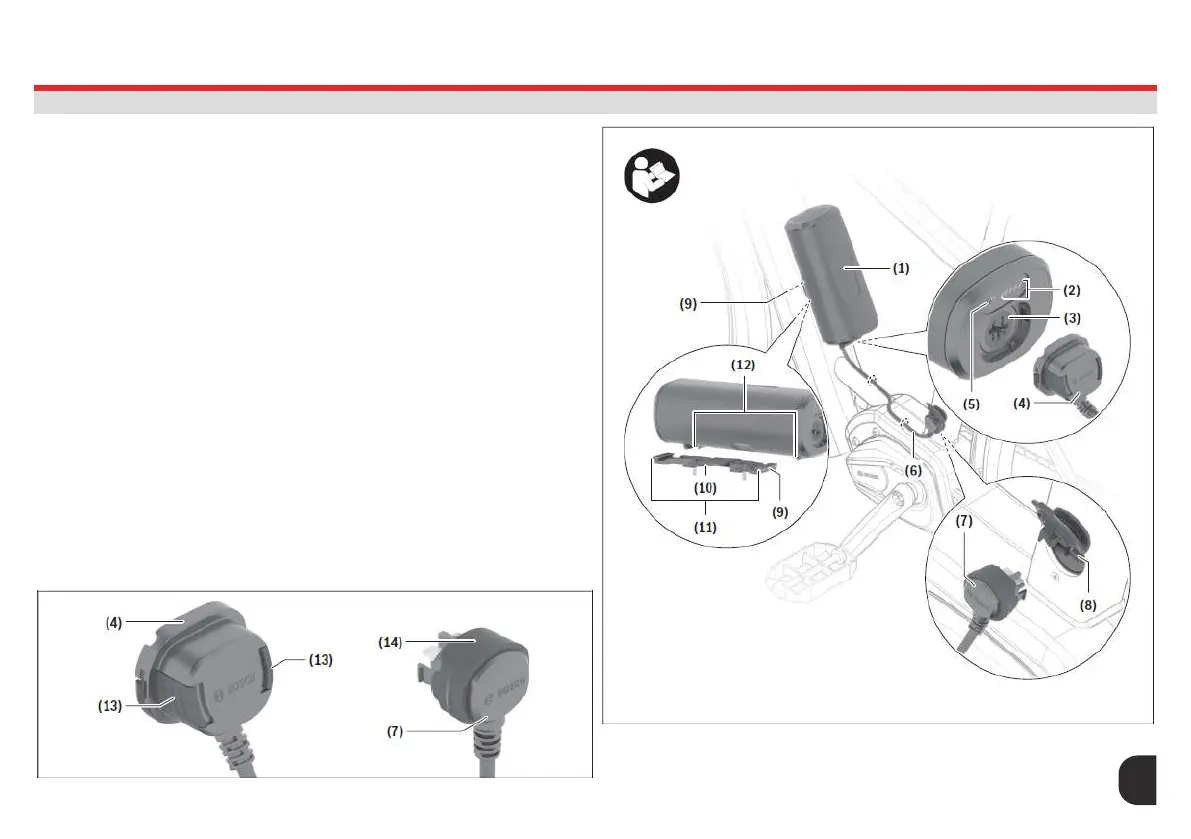

The numbering of the components shown refers to the illustrations on this
page. All representations of bicycle parts, apart from the eBike batteries
and their holders, are schematic and may differ from those on your own
eBike. In addition to the functions shown here, changes to software relating
to troubleshooting and functional modications may be introduced at any
time.
PRODUCT INFORMATION
RANGE EXTENDER
37
(1) PowerMore battery
(2) Status/battery charge indicator
(3) PowerMore battery connection socket
(4) PowerMore battery cable connector
(5) On/off button
(6) PowerMore battery cable
(7) eBike charging socket cable connector
(8) eBike charging socket
(9) PowerMore battery holder
(10) Release button for PowerMore battery holder
(11) Guide rail for PowerMore battery holder
(12) Guide grooves for PowerMore battery
(13) Release buttons for PowerMore battery cable connector
(14) Release mechanism for eBike charging socket cable connector
