(1) On/off button
(2) Select button
(3) LEDs for battery charge indicator
(4) ABS LED (optional)
(5) Assistance level LED
(6) Holder
(7) Diagnostics connection (for servicing purposes only)
(8) Button for decreasing support level –/walk assistance
(9) Button for increasing support level +/bike lights
(10) Button to reduce brightness/go back
(11) Button to increase brightness/go forward
(12) Ambient light sensor
Intended Use
The LED Remote operating unit is designed to control a Bosch eBike
system and control an on-board computer. The eBike Flow app can be
accessed via Bluetooth®.

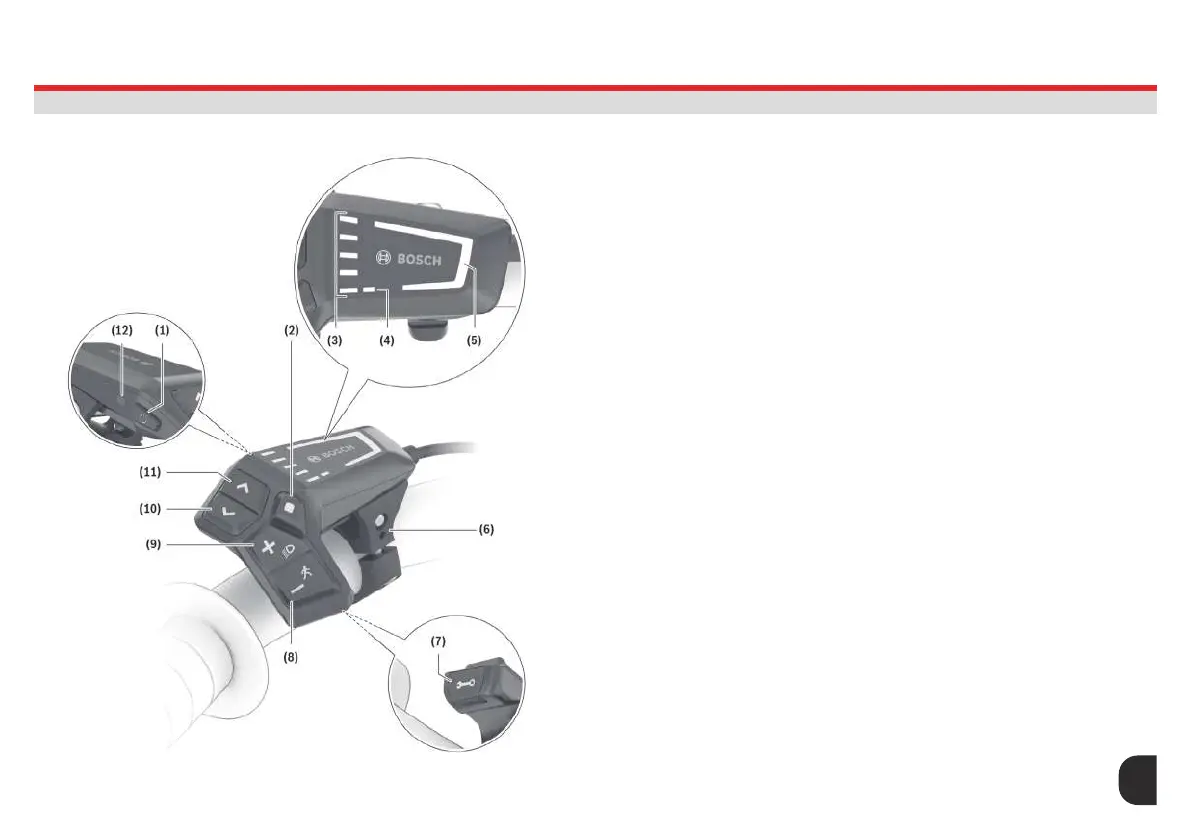

Product features The numbering of the components shown refers to the
illustrations on the left
REMOTE FUNCTIONS
LED REMOTE (BRC3600)
