Installation Guide
English 21
Remote Volume Control
pro.Bose.com
ControlCenter Zone Controllers
Remotely control the volume of the PS604A and PS404A amplifiers using the Bose® CC-1 ControlCenter zone controllers.
Controllers are available in two colors (white and black) for each of three regions (North America, Japan, and EU). The
North America and Japan controllers fit into any regional 1-gang electrical box, and do not include a wall plate cover. The
EU zone controllers come as a finished wall plate of size 86-by-86 millimeters, with 60 to 60.3 millimeter horizontal or
vertical screw spacing. Each zone controller also comes with a sheet of pre-printed labels, with two blanks for custom
labeling, and two screws for fastening the zone controller to the electrical box.
Direct CC-1 Zone Controller Connection to the Amplifier
Zone controllers can be ganged together and have a single home run back to the amplifier, using CAT 5 cables and
RJ-45 connectors. The PS604A and PS404A support up to four ganged CC-1 zone controllers. Each zone controller can be
independently configured to control any output, or combination of outputs, for bi-amping.
38 mm
1.5 in
105 mm
4.1 in
CC-1 North America Zone Controller
42 mm
1.7 in
110 mm
4. 3 in
CC-1 Japan Zone Controller
86 mm sq.
3.4 in sq.
CC-1 EU Zone Controller

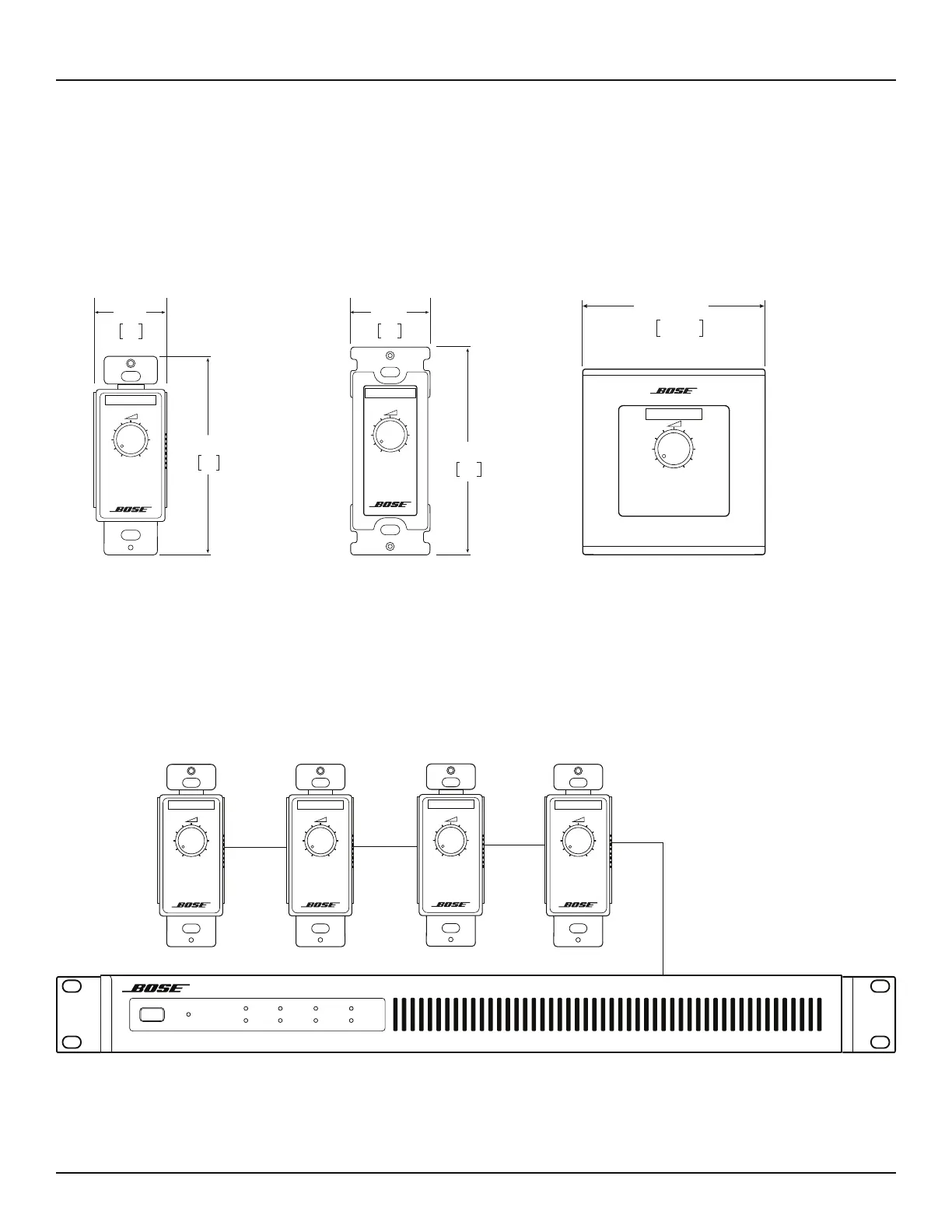

Figure 5. CC-1 ControlCenter zone controllers
Adaptable Power Amplier
LIMIT
SIGNAL
12 3 4
PowerShare
PS604A
POWER
CAT 5 cable
609.6 m (2000 ft) max total length
Figure 6. Direct CC-1 zone controller connection to amplifier
