Distributed CC-1 Zone Controller Connection to the Amplifier
For installations using multiple CC-1 zone controllers, you can also connect the zone controllers to the CV41 4-to-1
Converter, then create a single home run from the CV41 back to the amplifier. Create these connections using CAT 5 cables
and RJ-45 connectors.
The CV41 connects up to four CC-1 zone controllers to a PS604A or PS404A. Each zone controller can be independently
configured to control any output, or combination of outputs.
If only one CC-1 is used to control all outputs, then the CV41 is not required, as the PS604A and PS404A can accept one
RJ-45 connection.
CAT 5 cable
609 m (2000 ft) max
CAT 5 cable
7.6 m (25 ft) max
Adaptable Power Amplier
LIMIT
SIGNAL
12 3 4
PowerShare
PS604A
POWER

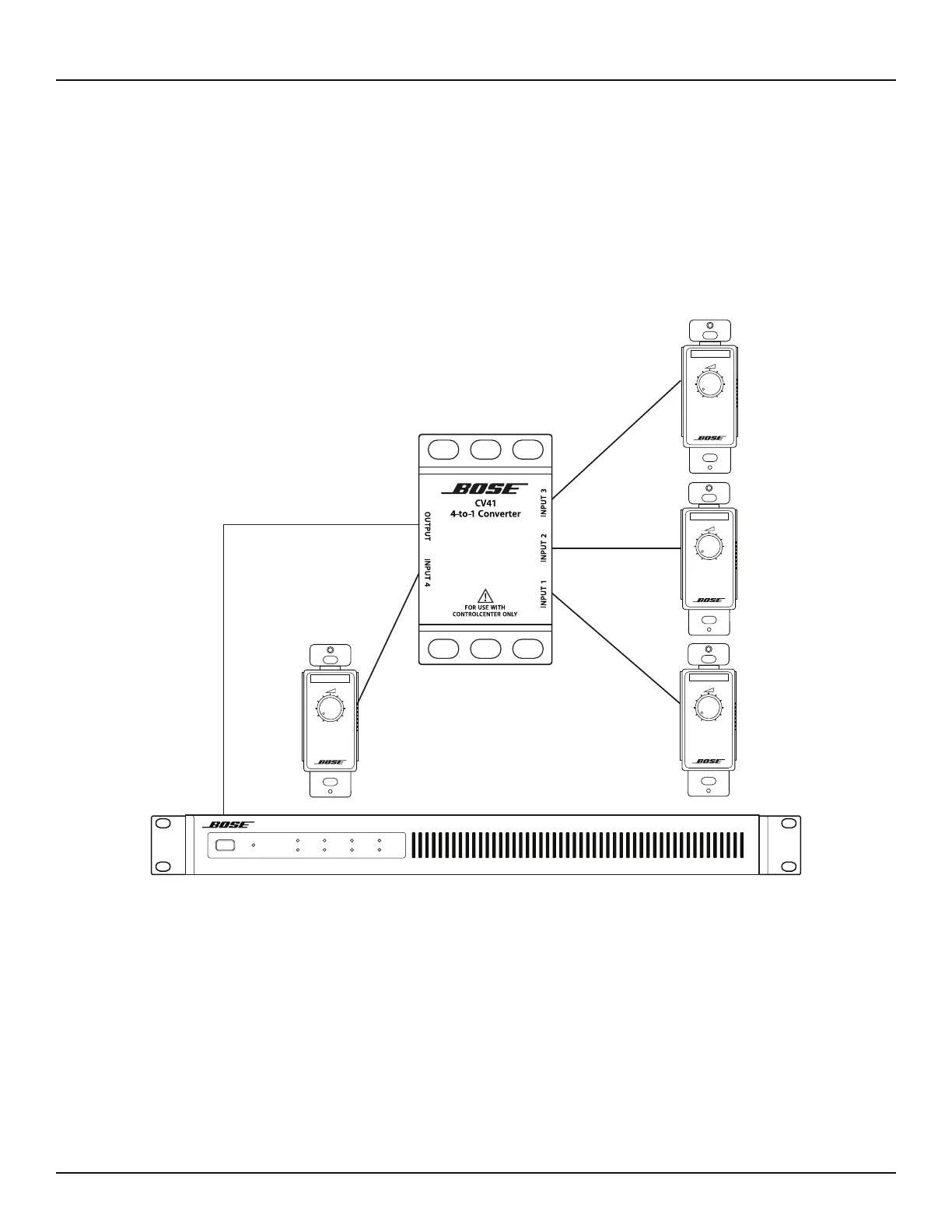

Figure 7. Distributed CC-1 ControlCenter zone controller connection to amplifier
