6
3
4
5
6
7
8
9
10
11
12
13
15
16
17
18
1
2
14
10
x2
x2
x2
x8
x4
x30
x30
x4
x2
x2
x4
x24

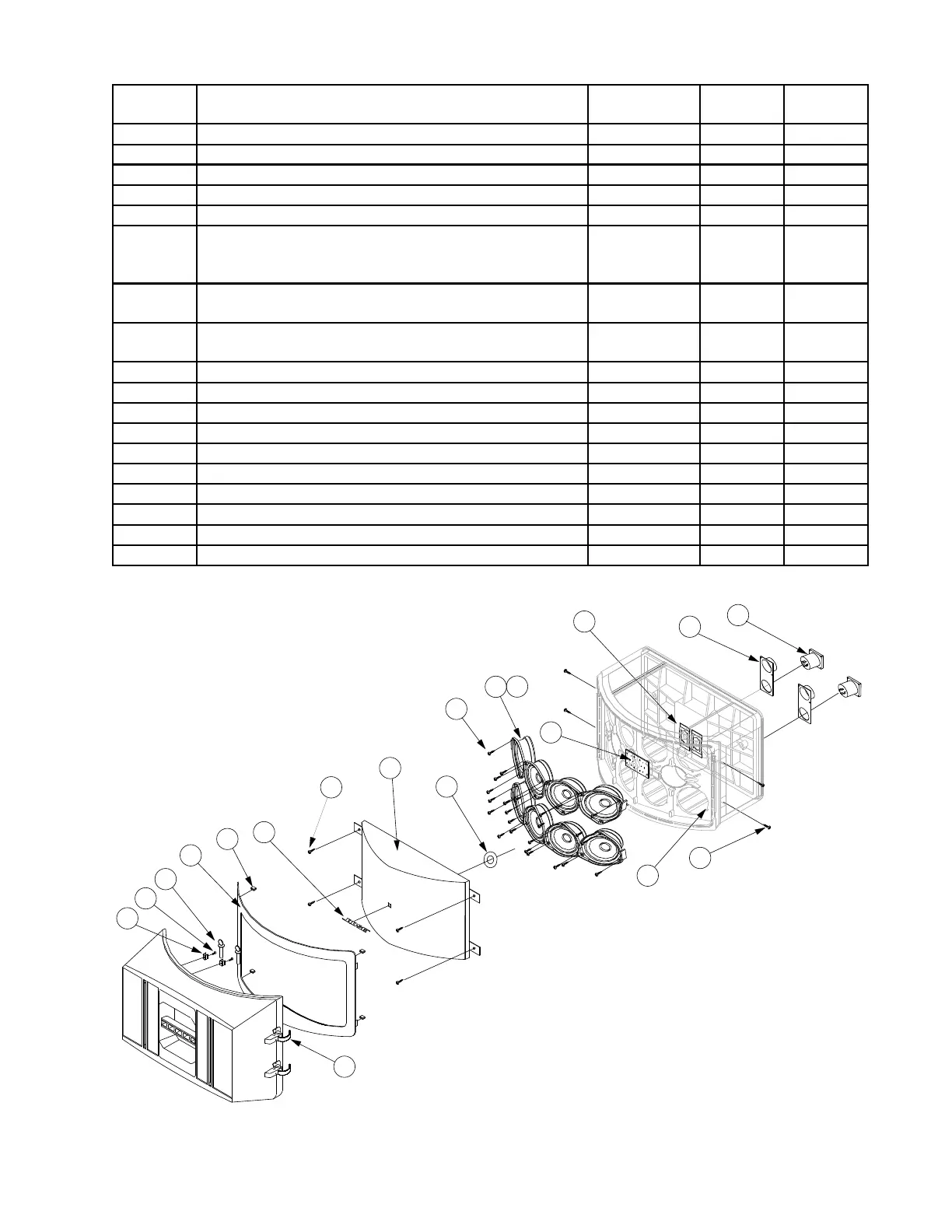

Figure 4. Exploded View
MAIN PART LIST
Item
Number
Description Part
Number
Qty. Note
1 DRIVER, 4.5" 290722-001 8 1
2 GASKET, 4.5" 259111 8
3 NETWORK, SHADING 291189-001 1
4 CONN, SPEAKON, PANEL MOUNT 254423 2
5 CLIP, TINNERMAN 187943 2
6 GRILLE, BLACK
GRILLE, ARCTIC WHITE
GRILLE, PRO GRAY
256350-001
256350-002
256350-004
1
7 NAMEPLATE, LOGO, BLACK
NAMEPLATE, LOGO, ARCTIC WHITE
254457-001
254457-002
1
8 RING TRIM, BLACK
RING TRIM, WHITE
256349-001
256349-002
1
9 SCREW, THUMB, M8 x 1.25 x 25mm 137050 2
10 SCREW, TAPP, 8-15, HEXW, SLOT 290290-12 30
11 COVER, NEUTRIK, SEALING 252384 2
12 CONN, FUSE CLIP, 1 POS, FEMALE 291366 2
13 NUT, J-TYPE, 8-32 109481 24
14 LATCH, SPRING 293290-001 4
15 CLIP, PUSH-ON, DIA .375 252379 2
16 SCREW, TAPP, 6-13x.5, PAN, XR 290294-08 4
17 CLIP, PUSH-ON, U-TYPE 290295-01 4
18 SCREW, TAPP, 6-20x.5, PAN, XR 290296-08 2
Note: When ordering a driver, also order a driver gasket.
