Bose Acoustimass-10 User Manual

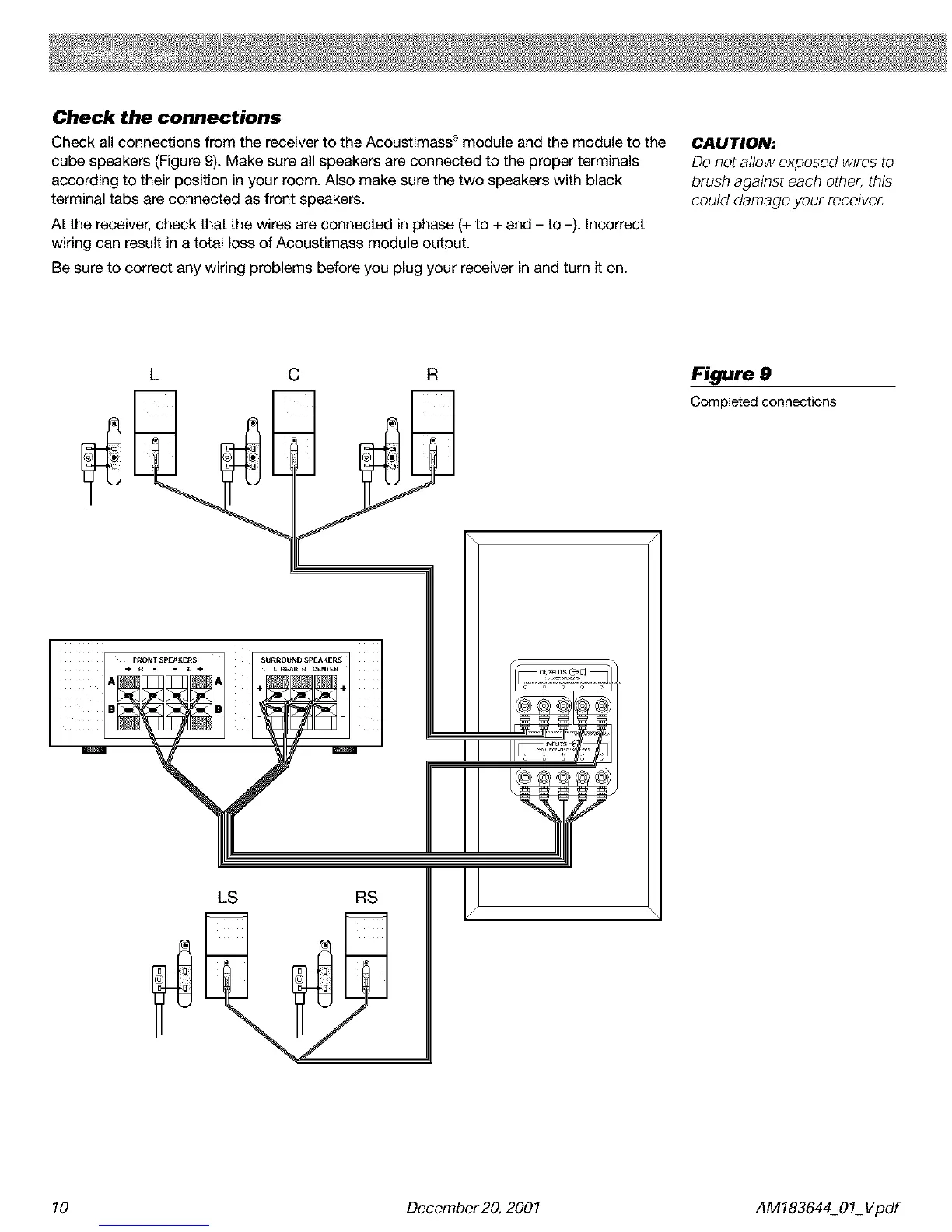

Check the connections
Check all connections from the receiver to the Acoustimass ®module and the module to the
cube speakers (Figure 9). Make sure all speakers are connected to the proper terminals
according to their position in your room. Also make sure the two speakers with black
terminal tabs are connected as front speakers.
At the receiver, check that the wires are connected in phase (+ to + and - to -). Incorrect
wiring can result in a total loss of Acoustimass module output.
Be sure to correct any wiring problems before you plug your receiver in and turn it on.
CAUTION:
Do not allow exposed wires to
brush against each other; this
could damage your receiver
L C R
Figure 9
Completedconnections
LS RS
L
10 December20, 2001 AM183644 01 Vpdf

Bose Acoustimass-10 Specifications

General

Product color	Silver
RMS rated power	- W
Audio output channels	5.1 channels
Center speaker weight	1100 g
Center speaker dimensions (WxDxH)	157 x 102 x 78 mm
Subwoofer weight	15800 g
Subwoofer dimensions (WxDxH)	206 x 414 x 643 mm
