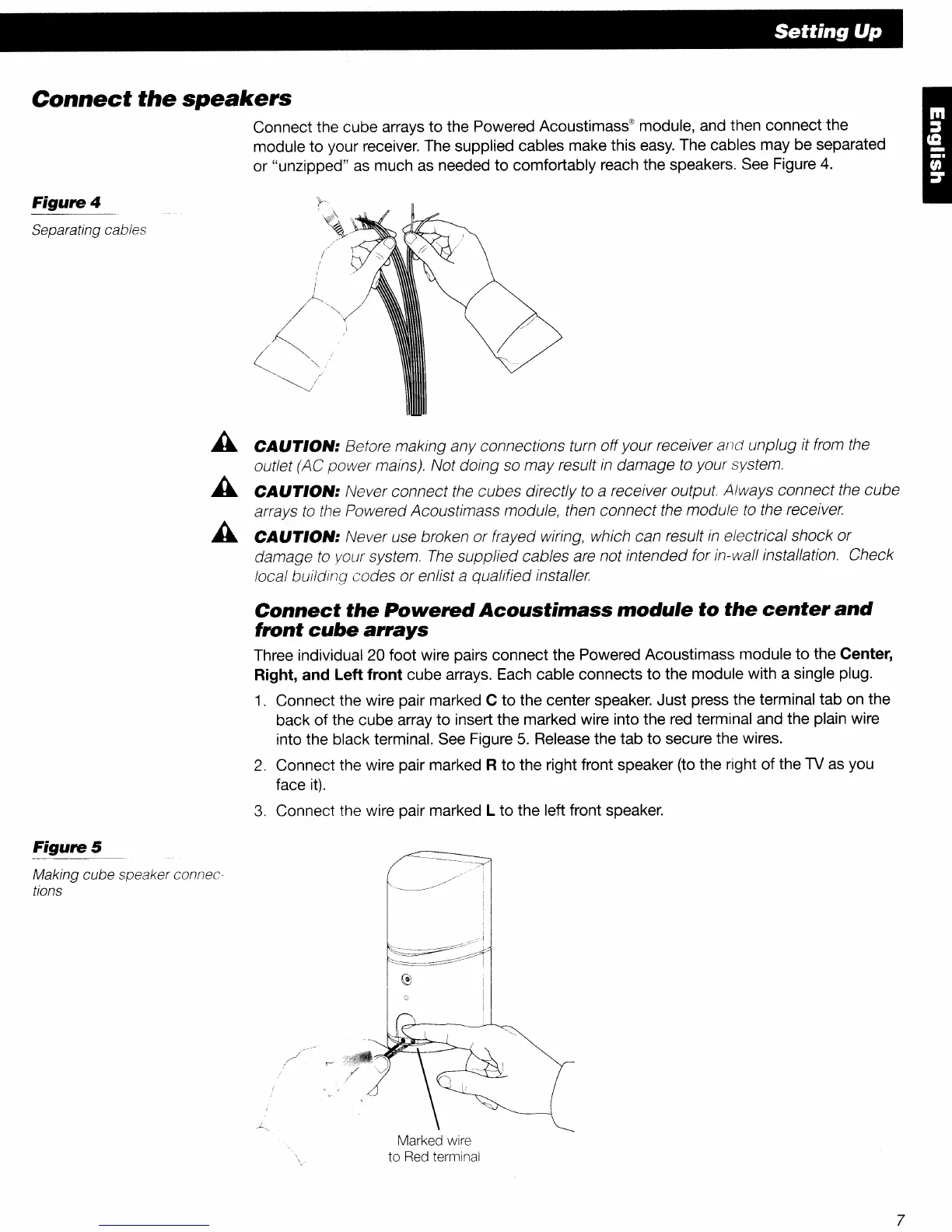

Setting
Up
Connect
the
speakers
Connect the cube arrays
to
the Powered Acoustimass® module, and then connect the
module
to
your receiver. The supplied cables make this easy. The cables may be separated
or "unzipped" as much as needed
to
comfortably reach the speakers. See Figure
4.
Figure
4
Separating cables
A
A
A
FigureS
Making cube speaker can
nee
tions
CAUTION:
Before making any connections turn offyour receiver and unplug it from the
outlet (AC power mains). Not doing
so may result
in
damage
to
your system.
CAUTION:
Never connect the cubes directly
to
a receiver output. Always connect the cube
arrays
to
the Powered Acoustimass module, then connect the module
to
the receiver.
CAUTION:
Never use broken or frayed wiring, which can result
in
electrical shock or
damage
to
your system.
The
supplied cables are not intended for in-wall installation. Check
local building codes or enlist a qualified installer.
Connect
the
Powered
Acoustimass
module
to
the
center
and
front
cube
arrays
Three individual 20 foot wire pairs connect the Powered Acoustimass module
to
the Center,
Right, and Left front
cube arrays. Each cable connects
to
the module with a single plug.
1.
Connect the wire pair marked C
to
the center speaker.
Just
press the terminal
tab
on the
back
of
the cube array
to
insert the marked wire into the red terminal and the plain wire
into the black terminal. See Figure
5.
Release the
tab
to
secure the wires.
2.
Connect the wire pair marked R
to
the right front speaker (to the right
of
the TV as you
face
it).
3.
Connect the wire pair marked L
to
the left front speaker.
Marked wire
to Red terminal
7
