Bose Acoustimass 5 User Manual

AM196451_05_V.pdf October 23, 2001 7
English
5. Connecting the Acoustimass
®
5 Series III system to your receiver
1. Select one of the remaining two pairs of wires, and locate the left channel terminals on the
Acoustimass module marked INPUTS FROM AMP OR RECEIVER. Depress the red,
positive (+) tab, insert the marked wire and release the tab. Repeat the process for the
black, negative (–) tab and the plain wire (Figure 5).
2. Then follow the same procedure for the right channel, using the last pair of wires.

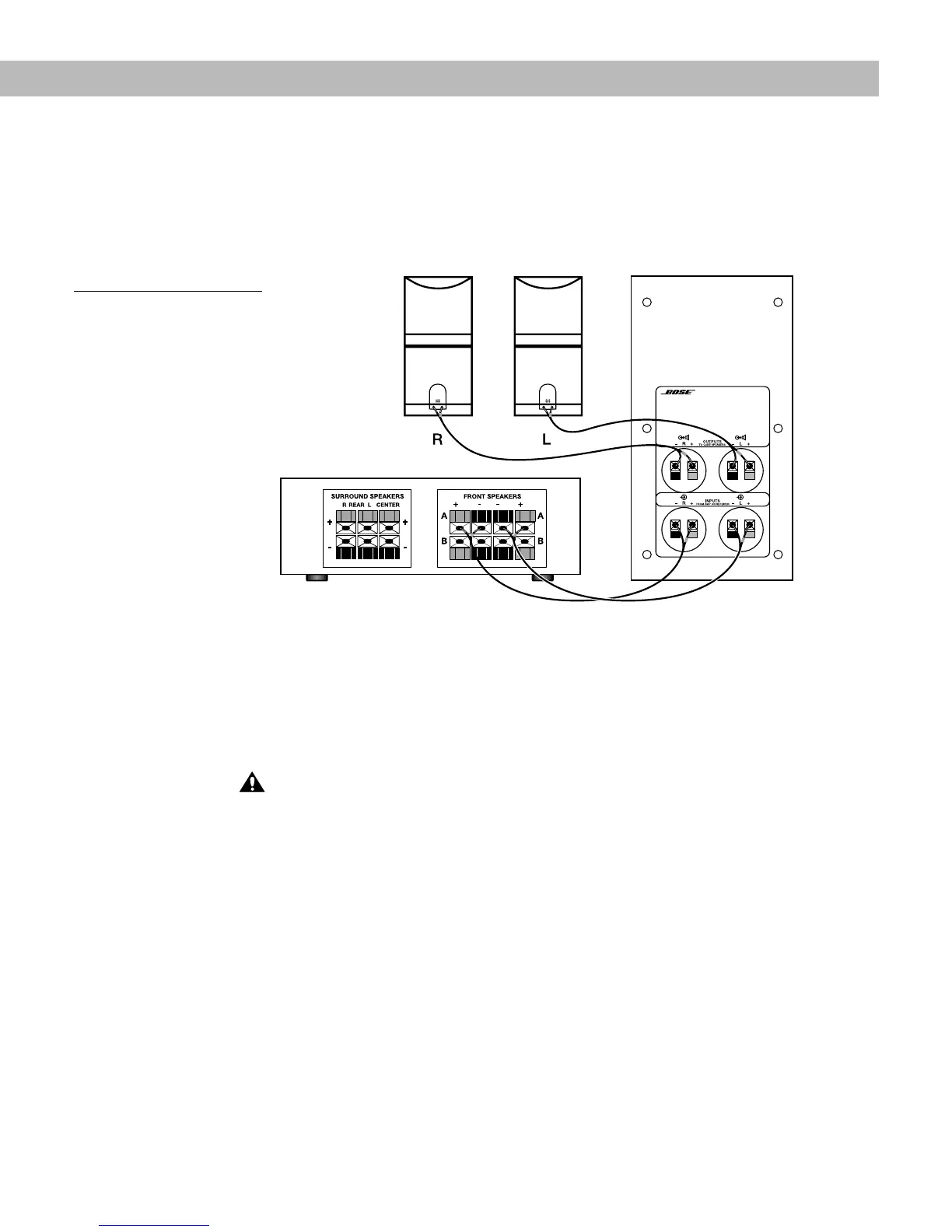

Figure 5
Connecting the Acoustimass
module to your receiver
Setting Up
R
L
3. Disconnect your receiver or amplifier from the AC power (mains) outlet.
4. Locate the speaker outputs on your receiver. Connect the other ends of the wire from the
left channel of the Acoustimass module to the terminals marked L or LEFT. Make sure that
the marked wire is connected to the positive (+) and the plain wire is connected to the
negative (–) terminal.
5. Repeat these last two steps for the right channel.
6. Your set-up is complete. Plug in your receiver, turn the system on, and enjoy your Acousti-
mass 5 Series III speakers!
CAUTION: Before you plug in your receiver or amplifier, make sure that no strands of wire
from any terminal are brushing against any other terminal. Such “bridged” wires create short
circuits which can damage your receiver or amplifier.

Bose Acoustimass 5 Specifications

General

Impedance	4-8 ohms
Satellite Speakers	2
Bass Module	1
System Type	2.1
Speaker Type	Satellite Speakers with Subwoofer
Speaker System Type	Acoustimass
Subwoofer Dimensions	14" H x 7.5" W x 19" D
Weight (Satellite)	2.4 lbs
Inputs	Speaker wire
