Bose AV28 - Setting-up a Computer to Issue TAP Commands; Hyperterminal Configuration for TAP Commands

31

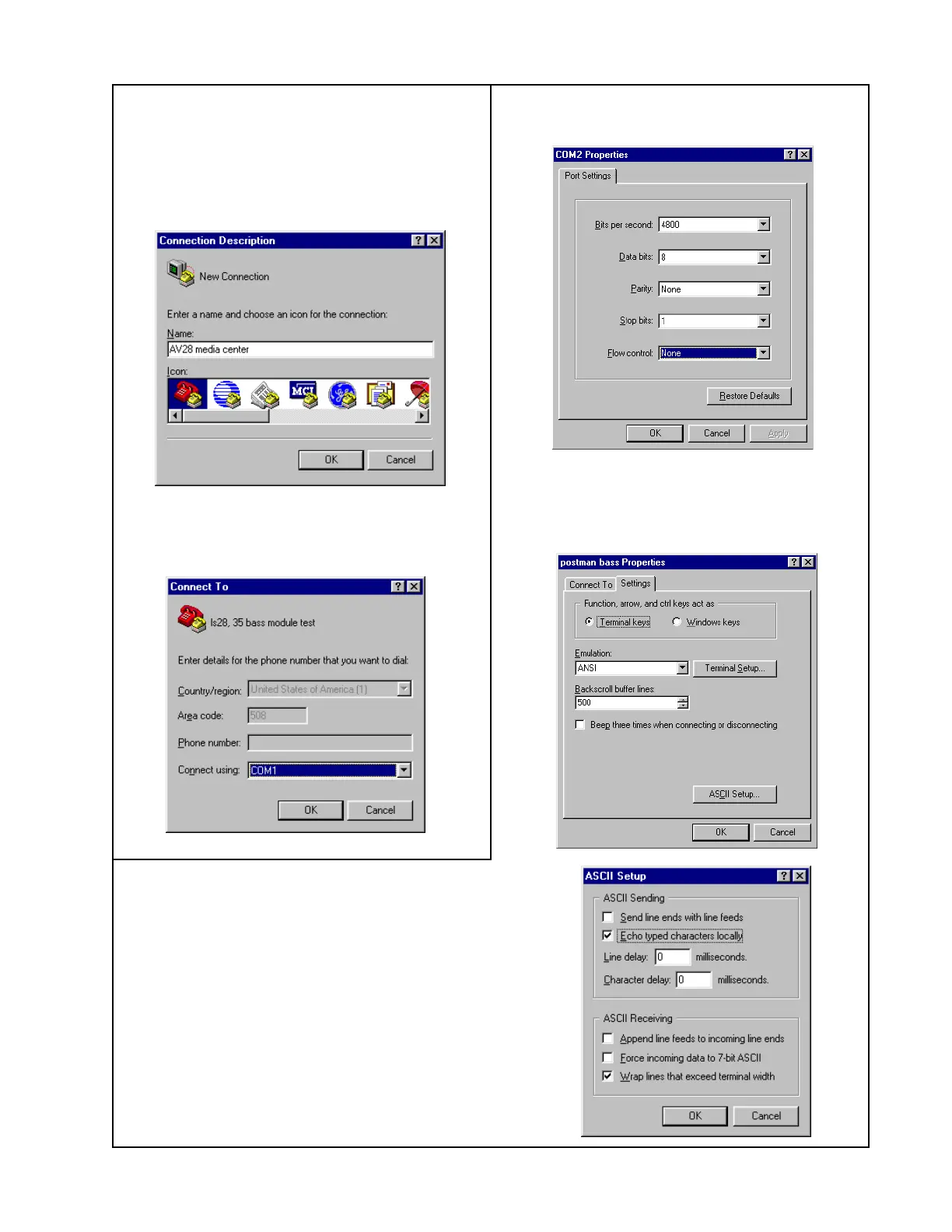

1. Open a terminal window. Click: Start/Pro-
gram/Accessories/Hyperterminal/Hyperterminal
2. In the “Connection Description” window, type
the name “AV 28 media center” then click “OK”;
any name may be entered.
3. In the “Connect To” window, select the COM
port on your computer that you will be connect-
ing the AV28 media center to and then click OK.
4. In the “COM1 Properties” window, make the
selections in the various fields as shown.
5. In the Hyperterminal window, click on File/
Properties. In the Properties window, click on
the Settings tab, make the selections in the
various fields as shown.
Setting-up a Computer to Issue TAP Commands
6. In the Settings window, click on
ACSII setup and make the selec-
tions and changes as shown.
Note: Terminal programs other than
hyperterminal can be used.
