Part List Notes
1. This part is not normally available from customer service. Approval from the Field Service
Manager is required before ordering.
2. The individual parts located on the PCB are listed in the part list.
3. This part is critical for safety purposes. Failure to use a substitute replacement with the
same safety characteristics as the recommended replacement part might create shock, fire and/or
other hazards.
4. When replacing the tuner or main PCB, the tuner alignments should be performed. The average
tuner alignment values are stored in FLASH memory, which is located on the main PCB, when the
main PCB is manufactured. The alignment procedures should be done to optimize the performance
of the tuner to compensate for PCB to PCB component variations.

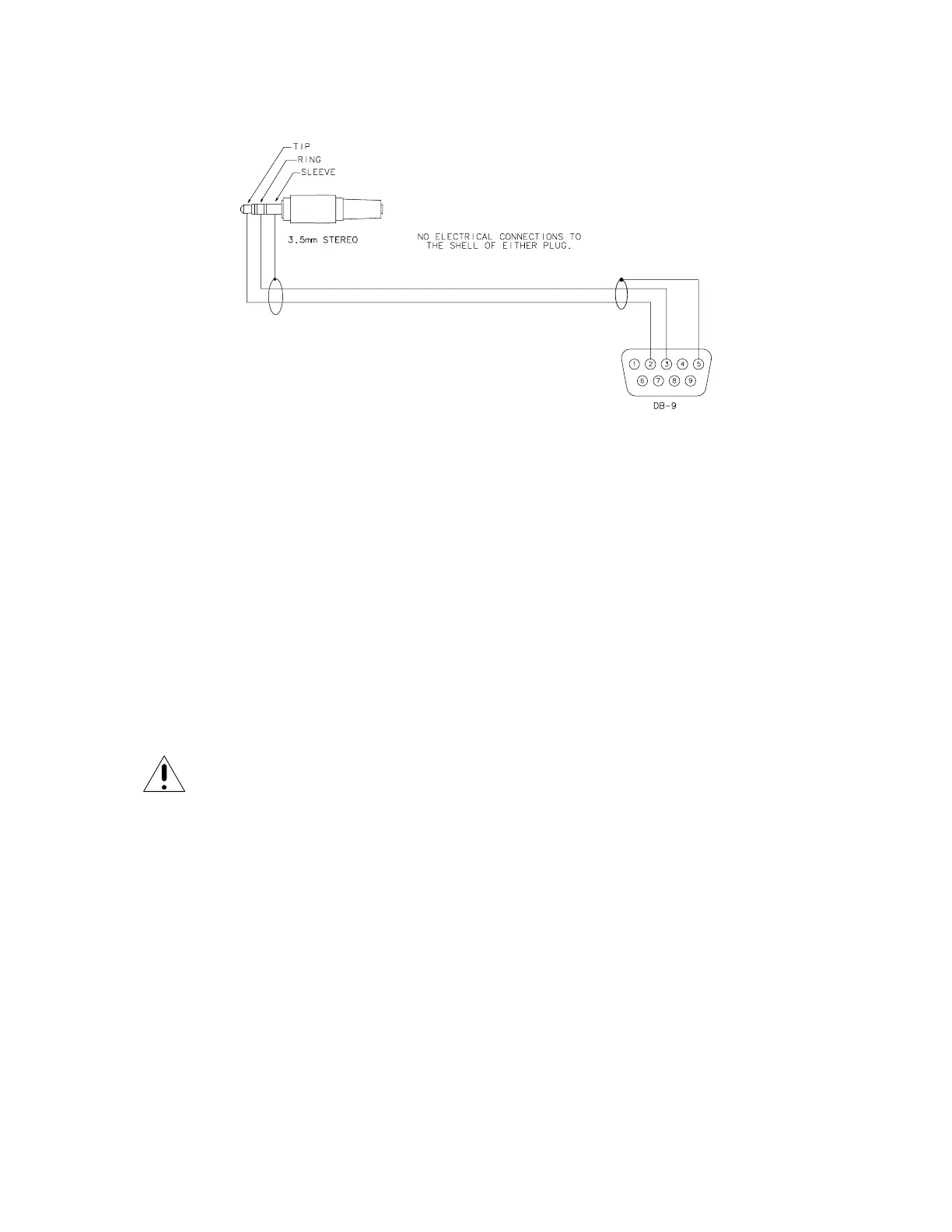

Figure 2. Tap Test Cable Part Number 264565
REAR VIEW
