Front and Rear Panels
pro.Bose.com

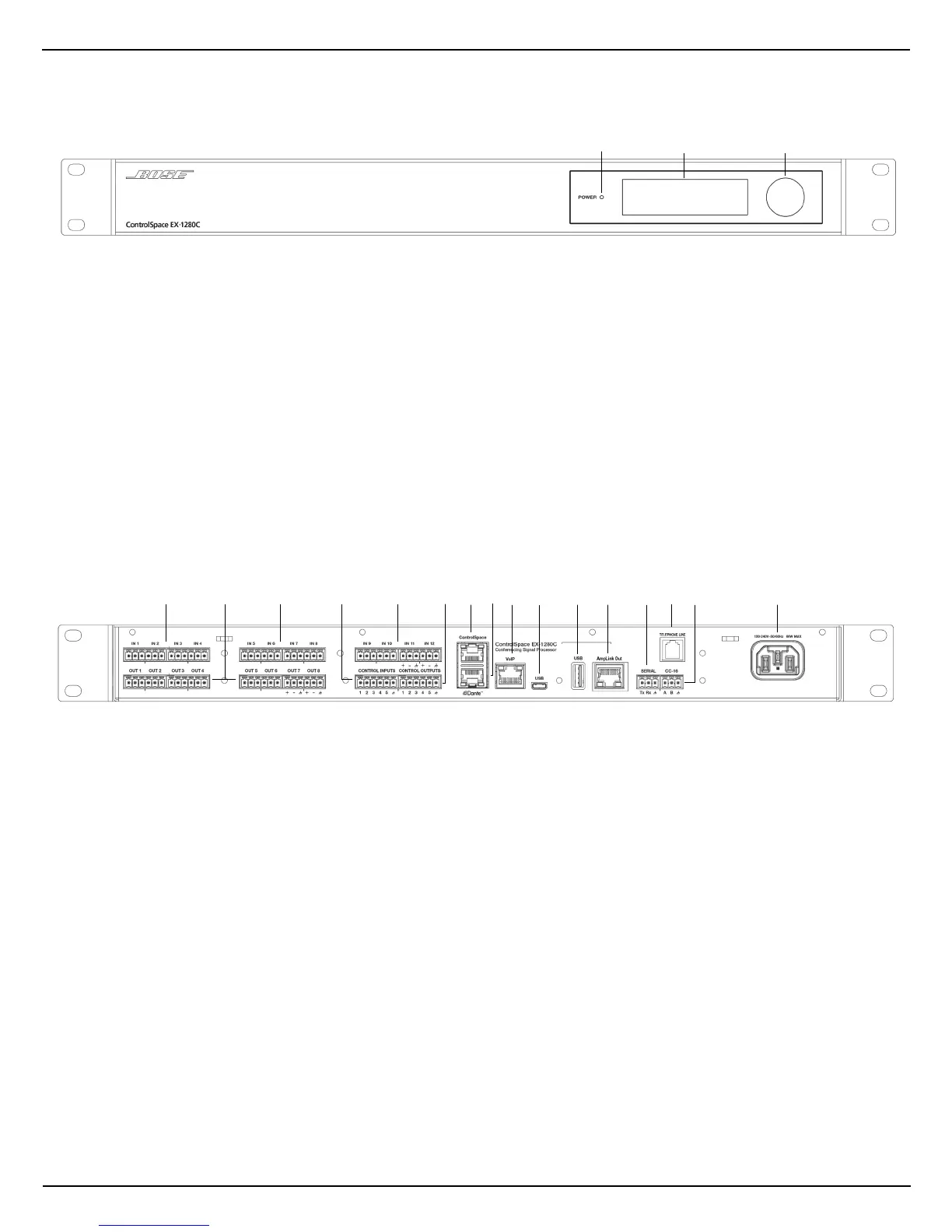

Front Panel
Figure 1. Front Panel view
q Power/Status Indicator: LED illuminates white when the unit is powered on. The LED may blink white or
change colors while the system is booting. However, if the LED illuminates and remains red after bootup is
complete, please see the Troubleshooting section on page 27.
w OLED Display: Displays metering and network information
e Rotary/Press Knob: Use to navigate menus, set IP information, etc.
Figure 2. Rear panel view
qet Analog Audio Input: Twelve (12) balanced audio inputs (3.81 mm, 6-pin Euro block), routable to automatic
echo cancellation (AEC) using ControlSpace® Designer
TM
software
w Analog Audio Output: Eight (8) balanced audio outputs (3.81 mm, 6-pin Euro block)
r General-Purpose Control Inputs: Five (5) general-purpose input controls (3.81 mm, 6-pin Euro block)
y General-Purpose Control Outputs: Five (5) general-purpose output controls (3.81 mm, 6-pin Euro block)
u ControlSpace Network Port: Connect to PC running ControlSpace Designer software, or to a third-party
controller, using an RJ-45 connection
i Dante Network Port: Dante digital audio (64 x 64 channel, 1 Gbps), using an RJ-45 connection
o VoIP Telephone Connection: SIP 2.0-compliant, using an RJ-45 connection
a Micro-B USB Port: Connect to PC for soft codecs with stereo input and output
s USB Port: Not currently supported; available for future updates to ControlSpace EX-1280C
d AmpLink Out: 8-channel uncompressed, ultra-low latency digital audio output
f Serial Port: 3-wire RS-232C (DTE) serial interface connection
g Telephone Line: Supports worldwide analog telephone connections, using an RJ-11 connection
h CC-16 Port: Supports Bose CC-16 zone controller, or other control interfaces that use a RS-485 connection
j AC Mains Power Cord Connection: IEC 60320-C14 inlet
