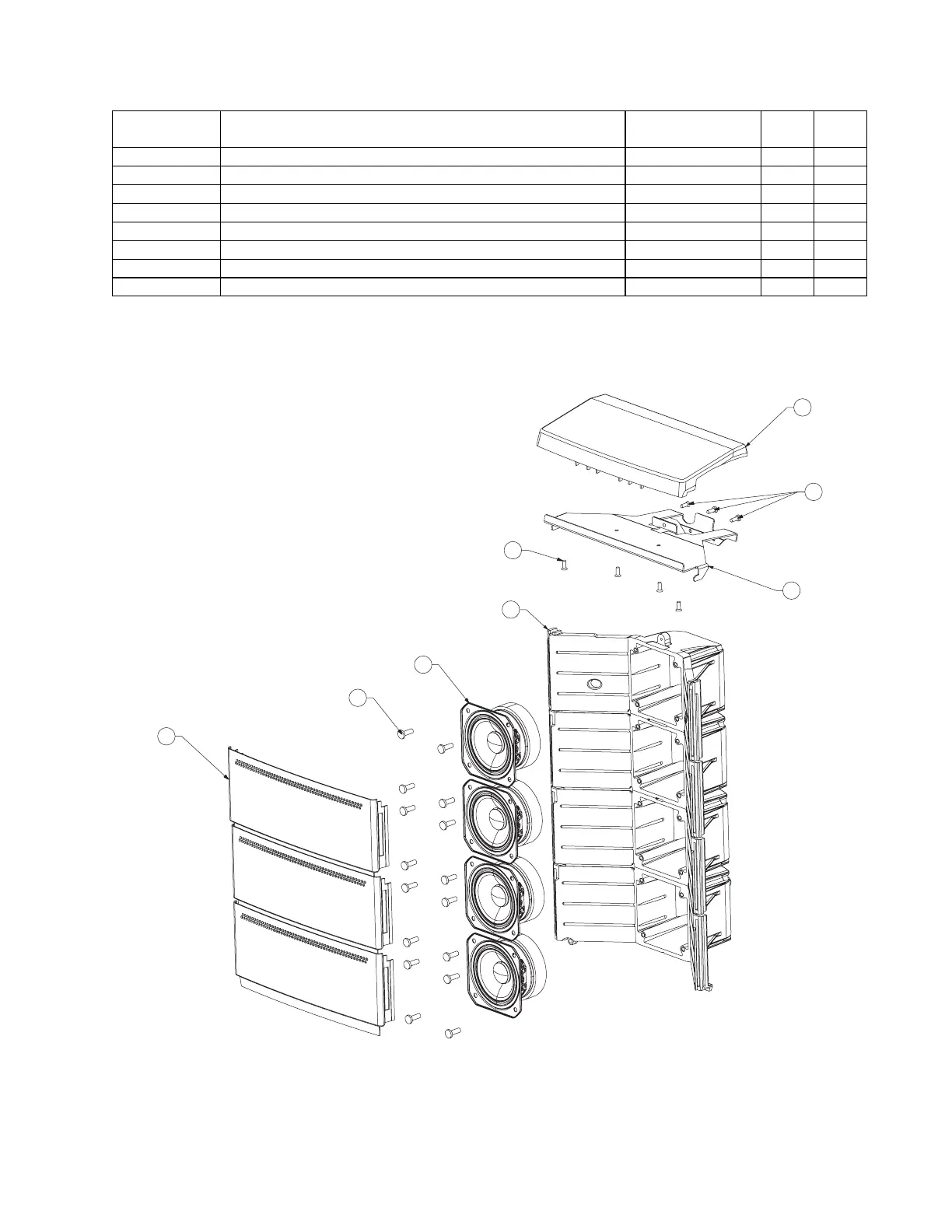

Figure 5. F1 Model 812P Loudspeaker - Array Section
MAIN PART LIST (CONT.)
F1 Model 812P Loudspeaker (refer to Figure 5)
6x 54
32x 60
8x 55
2x 56
8x 59
57 2x
59 6x
58 2x
Item
Number
Description Part Numbe
r
Qty. Note
53 SCREW, M4x1.5x11.5L, PH, TAPPING, BLK 757326-011S 2
54 GRILLE, ARRAY, SERV 625266-011S 6
55 TWIDDLER 2.5IN NEO TXX SERV 625262-001S 8
56 BAFFLE, ARRAY - 2
57 COVER, ARRAY, MH, SERV 625273-011S 2
58 BRACKET, ARRAY COVER - 2
59 SCREW, ARRAY COVER 766497-011S 8
60 SCREW, TWIDDLER, MH 757326-011S 32
Note: Part quantities are for two array sections. There are two sections used per loudspeaker.
