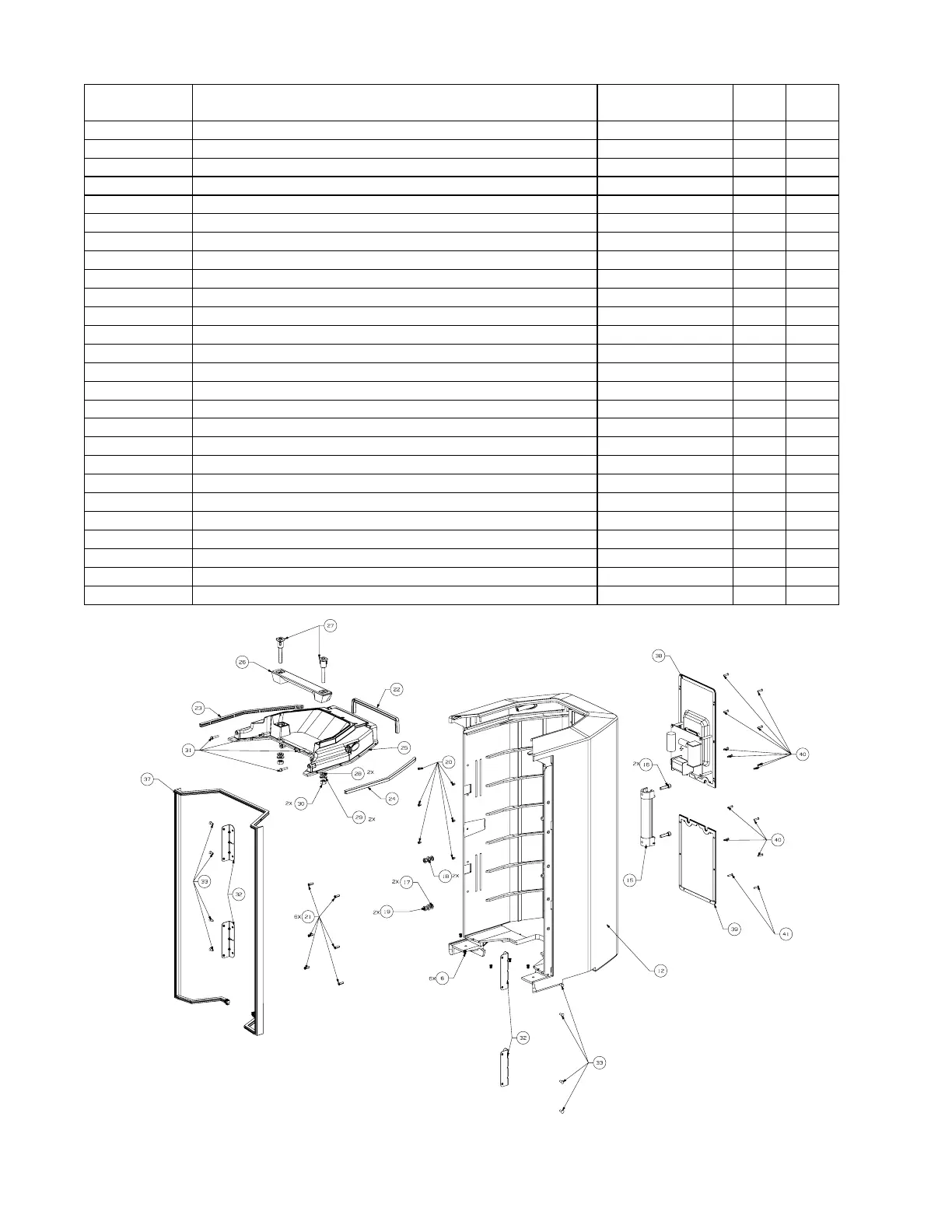

Figure 4. F1 Model 812P Loudspeaker - Cabinet
MAIN PART LIST (CONT.)
F1 Model 812P Loudspeaker (refer to Figure 4)
Item
Number
Description Part Numbe
r
Qty. Note
6 M4 INSERT - 8
12 ENCLOSURE, REAR, MH - 1
15 HANDLE, REAR, MH - 1
16 SCREW, M6-1.0x25, SHCS - 2
17 M6 FLAT WASHER - 2
18 M6 LOCK WASHER - 2
19 M6 NUT - 2
20 M3 INSERTS, 5.6MM, L - 6
21 M3 INSTERS, 10.4MM, L - 6
22 GASKET, ENCLOSURE, UPPER, REAR - 1
23 GASKET, ENCLOSURE, LEFT - 1
24 GASKET, ENCLOSURE, RIGHT - 1
25 HANDLE RECESS - 1
26 HANDLE, UPPER, MH - 1
27 INSERT, UPPER HANDLE - 2
28 M8 FLAT WASHER - 2
29 M8 LOCK WASHER - 2
30 M8 NUT - 1
31 SCREW, PARTICLE BOARD, M4x30, PH - 8
32 BRACKET, INTERNAL, MH - 4
33 SCREW, M4x8, FH, BLK - 8
37 GASKET, ENCLOSURE, MAIN, SERV 625294-011S 1
38 ASSY, CROSSOVER, MH PASSIVE, SVCE 757848-011S 1
39 LOWER PANEL, MH PASSIVE 745838-011S 1
40 SCREW, M3x14, FH, BLK - 12
41 SCREW, M3xxx, TAPPING, FH, BLK - 2
