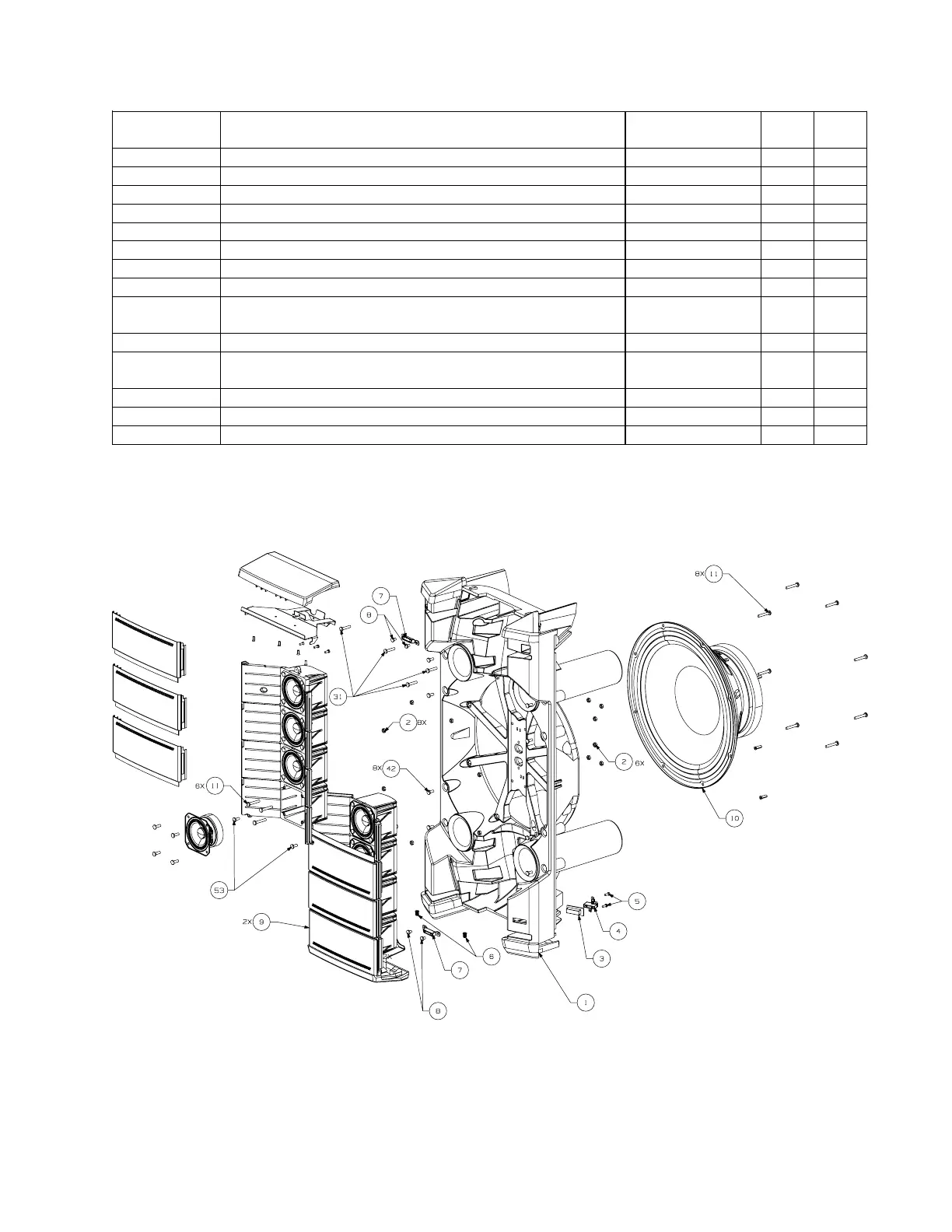

Figure 3. F1 Model 812P Loudspeaker - Baffle and Drivers
MAIN PART LIST (CONT.)
F1 Model 812P Loudspeaker (refer to Figure 3)
Item
Number
Description Part Number Qty. Note
1 BAFFLE, WOOFER - 1
2 NUT, M4 - 14
3 LENS, LED, SVCE 720413-001S 1
4 LIGHT GUIDE, LED, SVCE 720414-001S 3
5 SCREW, TAPPING, M3x5.84, PH - 2
6 M4 INSERT - 8
7 ASSY, POSITIONING MAGNET, SERV 628066-001S 2
8 SCREW, TAPPING, M3x7.5, PH, BLK - 4
9 ASSY, ARRAY, FLEX, PASSIVE (REFER TO ITEMS 54
TO 60 FOR INDIVIDUAL PARTS)
- 2
10 WOOFER, 12IN, MH, PASSIVE, SERV 745847-001S 1
11 SCREW, M4x25, PH, BLK
(FOOT, WOOFER, TWID ARRAY PLASTIC)
721717-001S 16
31 SCREW, PARTICLE BOARD, M4x30, PH - 8
42 SCREW, M4x15, PH, BLK - 8
53 SCREW, M4x1.5x11.5L, PH, TAPPING, BLK 757326-011S 2
