Figure 2. Crossover Top Side and Etch Layout
C1
RED
+
WOOFER
+
-
SATELLITES
-
BLACK
INPUT FROM
AMPLIFIER
LEFT (RIGHT)
RED
BLACK

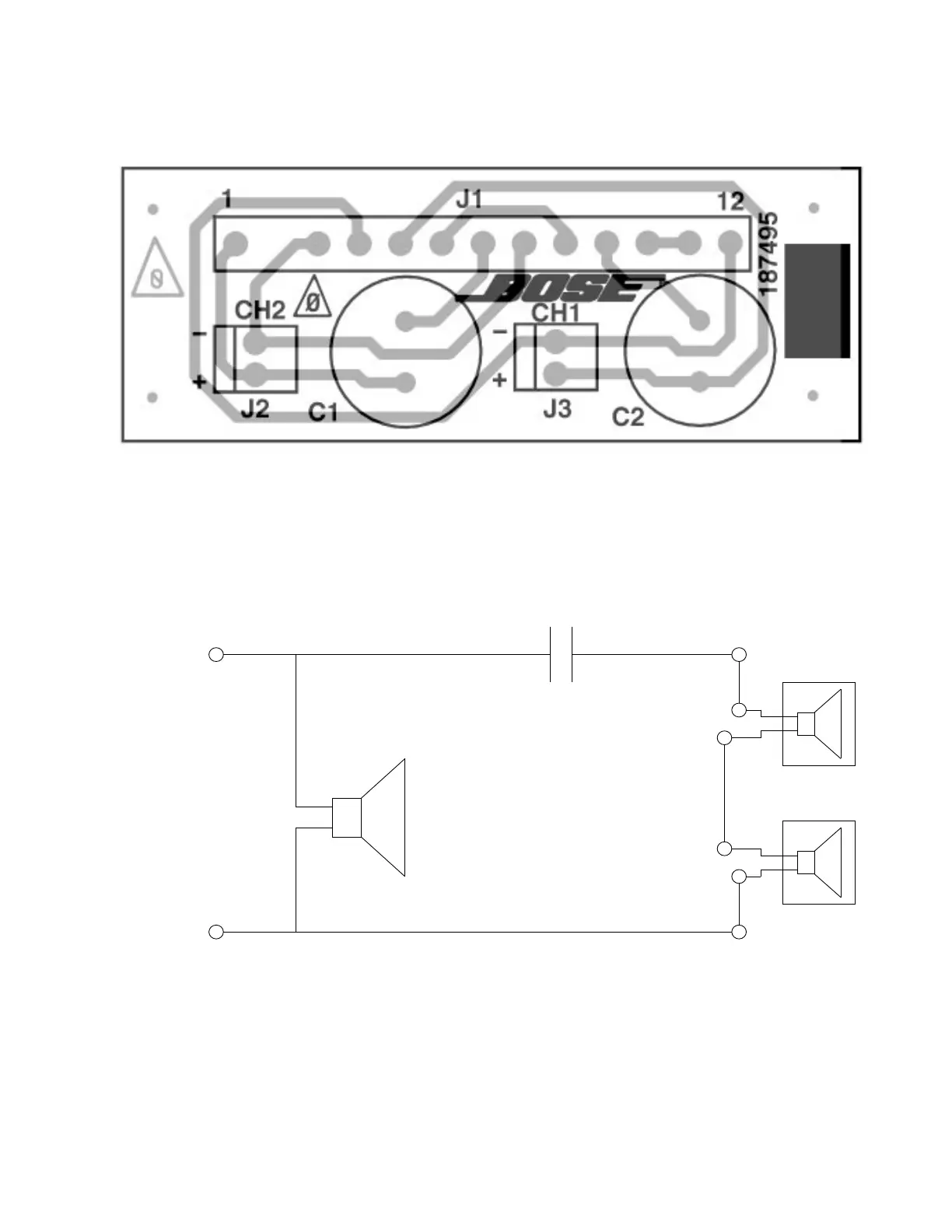

Figure 3. FreeSpace
®
Model 1B Acoustimass
®
Module Schematic Diagram
(one channel shown)
