Installation
2.2 Connecting the wires
This process varies according to the version of loudspeaker you are
using.
2.2.1 To the 4 ohm version
Caution: Install the 4 ohm Model 32SE loudspeaker in compliance
with local building and electrical codes. In the U.S., this version is
designed for installation using Class 2 wiring methods in accordance
with Articles 640 and 725 of NFPA 70, National Electrical Code.
Guidelines for Class 2 wiring methods are usually appropriate for
nonhazardous live circuits and wiring methods in many other coun-
tries.
2.2.2 To the 70V or 100V versions
Caution:
Install the loudspeakers in compliance with local building
and electrical codes. In the U.S., this version is designed for installa-
tion using Class 1, 2, or 3 wiring methods in accordance with
Articles 640 and 725 of NFPA 70, National Electrical Code. Guide-
lines for Class 2 wiring methods are usually appropriate for nonhaz-
ardous live circuits and wiring methods in many other countries. The
guidelines for Class 1 and 3 wiring methods are appropriate for
hazardous live circuits in those same countries.
MODEL 32SE
ENVIRONMENTAL SPEAKER
REFER TO YOUR INSTRUCTION MANUAL FOR PROPER INSTALLATION AND
OPERATING PROCEDURES.
4 OHM PASSIVE POWER RATING: 40W IEC
©2000 BOSE CORPORATION
SUITABLE FOR USE OUTDOORS AND IN WET LOCATIONS
SER. NO. 393560002BP
U.S. PAT. NOS. 4,158,756 4,061,890 RE.31.31,679
BOSE CORPORATION
FRAMINGHAM, MA 01701-9168 U.S.A.
MADE IN IRELAND 254377 REV. 00

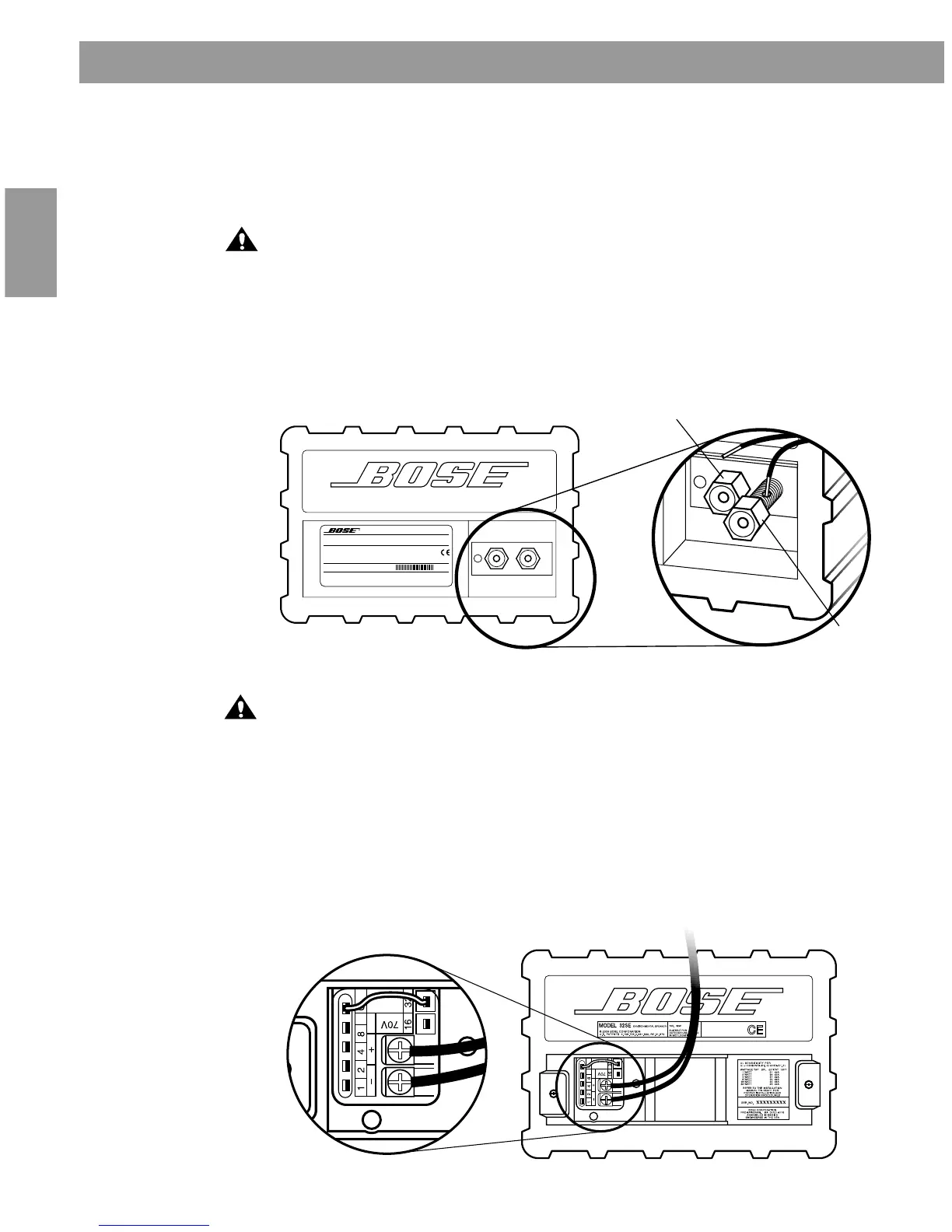

Red
(+)
Black
(–)
+
–
To Next Page
