Reference
Designator
Description Part Number Qty. Note
R1 6.2 Ohm, WW, 5W, 10% 125605-6R2 1
R2 2.4 Ohm, WW, 5W, 10% 125605-2R4 1
C1 47uF, EL, BP, 85, 50V, 20% 136548 1 4 Ohm version only
C2 10 uF, EL, BP, 85C, 50V, 20% 138365 1
L1 1.5 mH 139571 1
PTC1 Polyswitch, 60V, RXE135 190348-135 1 4 Ohm version only
- Screw, Mach, 6-32, PAN, XREC 181701-01 1
- Nut, HEX, 6-32 103234-632 1
- Washer, Fender, Non-Magnetic 181700-01 1
- Pin, Grooved, .52x.34x.045 129000-5234 2

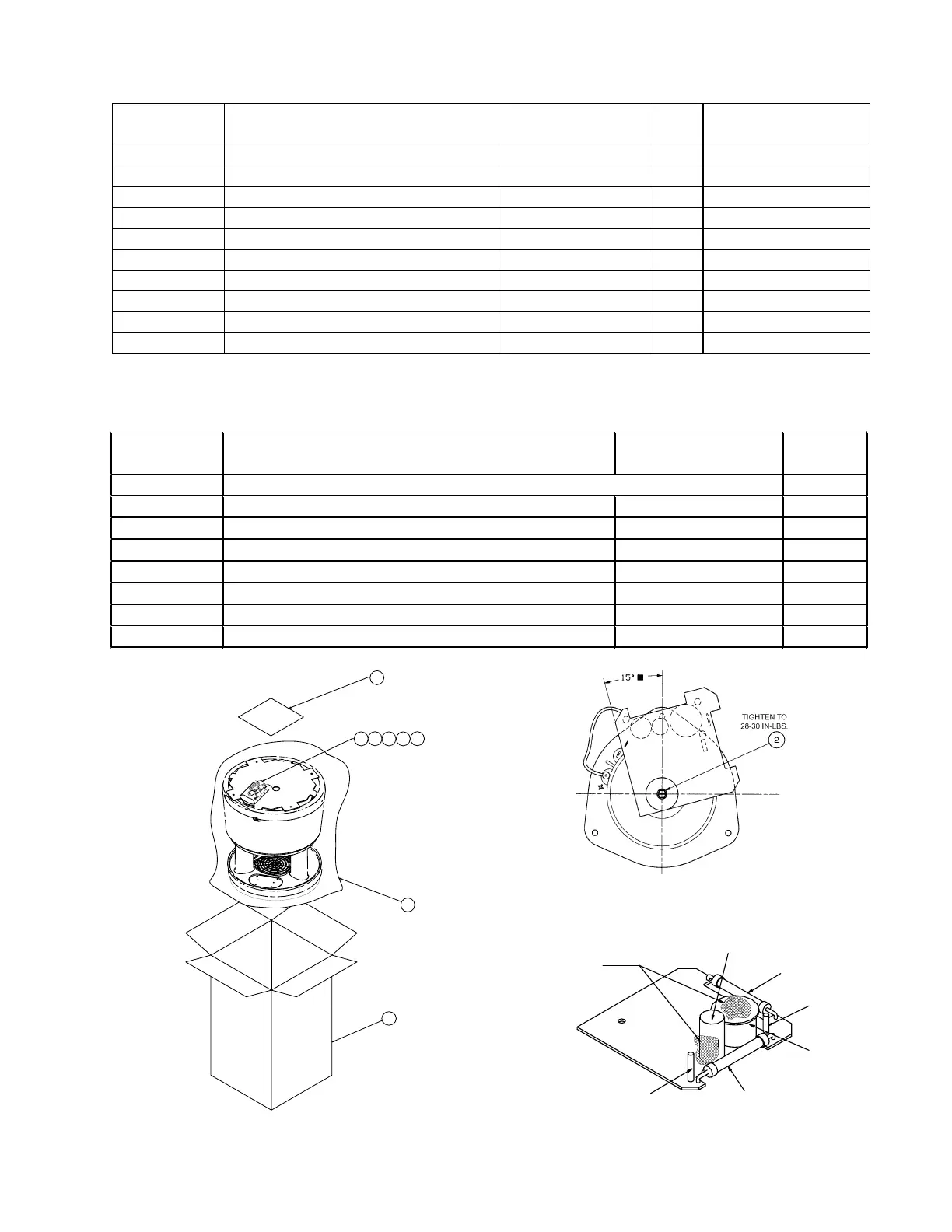

PACKAGING PART LIST
Figure 5. Packaging View
EQUALIZER PCB PART LIST
(Passive version)
17
16
15
19
20
21
22
18
Item
Number
Description Part Number Qty.
15Manual, Owner’s 254405 (PRO installer) 259124 (end user) 1 each
16 Carton 254393 1
17 Bag, Poly, 48X24X14X2 Mil 128238 1
18 Connector, Wire Nut, 16-22 AWG 188199-001 2
19 Bag, Poly, 3x3x2 Mil 107305 1
20 Screw, Tapp, 8-11, PAN, XREC, 1.75 193902-28 4
21 Washer, Flat, .438” Diameter, #8 137923-08 4
22 Connector, Butt Splice, 10-22 AWG 198380-2218 1
HOT MELT SHOULD NOT COVER
RESISTORS OR WIRE WRAP PINS.
E4
R1
L1
E2
+ INPUT
+ OUTPUT
C2
R2
Figure 7. Equalizer PCB Component Layout
Figure 6. Position of EQ PCB on Driver
7
