Mechanical Parts Lists
Item
Number
Description Part Number Qty. See Note
1 Plate-I/O 145538 1
2 Gasket-I/O Plate 145545 1
3 Connector-Barrier Strip,8 pos. 145542-8 2
4 Screw-Tapp,6-32 x 3/4,PAN,XREC 146093-12 4
I/O PCB Assembly Mechanical Parts List (Figure 9)

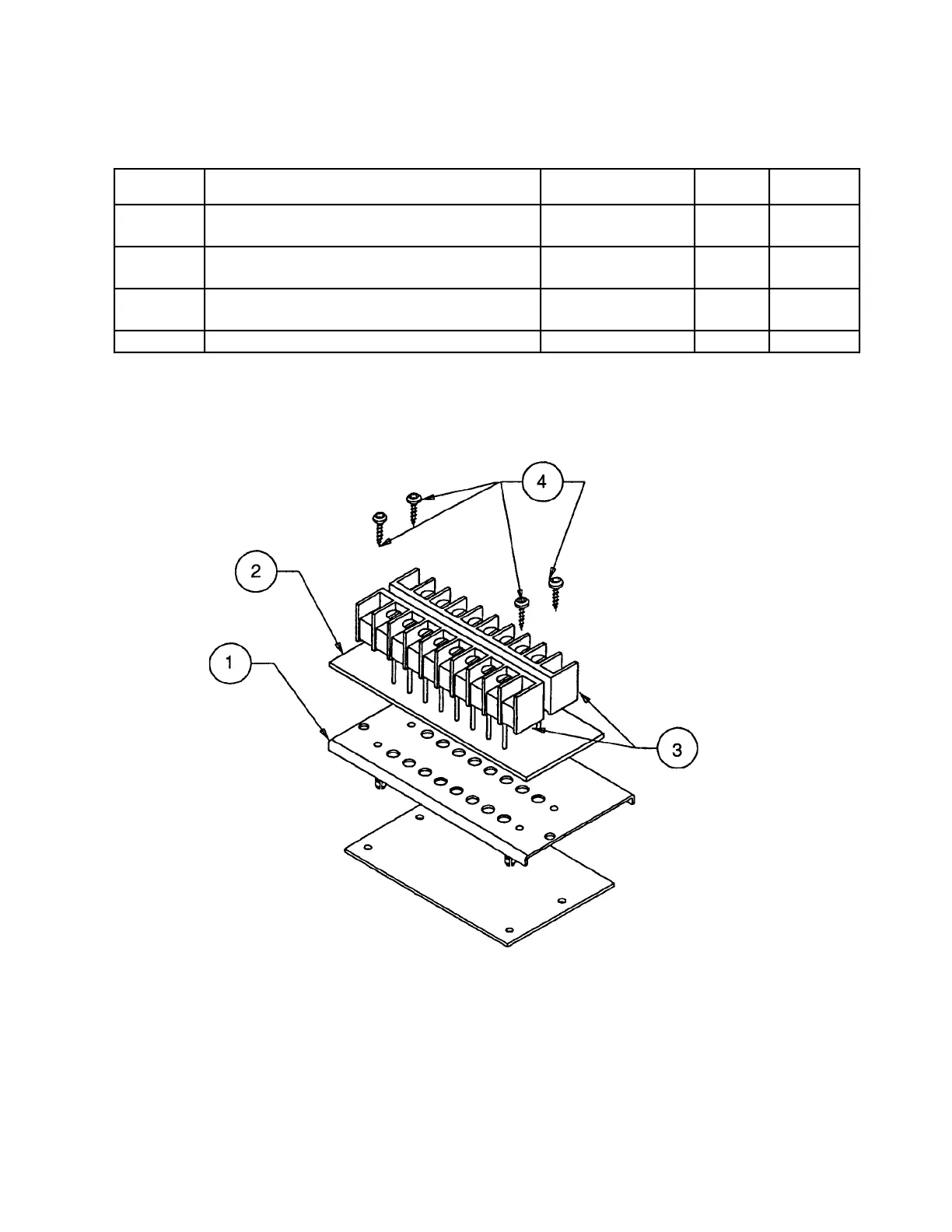

Figure 9. I/O PCB Assembly Exploded View (Mechanical Parts)
