Specifications
Electrical
Power Handling: 16W
Nominal Impedance (transformer bypass): 8 Ohms
Sensitivity at 1W @ 1m 84dB SPL
Maximum SPL: 96 dB SPL
(pink noise at 1m at rated power) 102 dB SPL (peak)
Frequency Range ( -3dB): 90 Hz - 16 kHz
Beamwidth ( -6 dB point, average 1 -4 kHz): 140 degrees conical
Mechanical
Driver Complement: One 2.25” (57mm) full-range driver
Construction Features: Enclosure: PC/ABS rated at UL94 5VA
Grille: Power coated steel
Integral quick-install mounting features
Three mounting points at the rear of the housing
for pendant mounting
Dimensions: Outer flange diameter: 9.4” (239mm)
Ceiling hole diameter: 8” (203mm)
Height to top of housing: 6.2” (158mm)
Weight: Product: 4.4 lb (1.9kg)
Shipping: 6 lb (2.7kg)
Finish: Textured black or white finish with a contoured,
powder coated steel grille. Both the enclosure
and grille can be painted.
Connectors: Three-terminal barrier strip with a pre-wired
ceramic connector

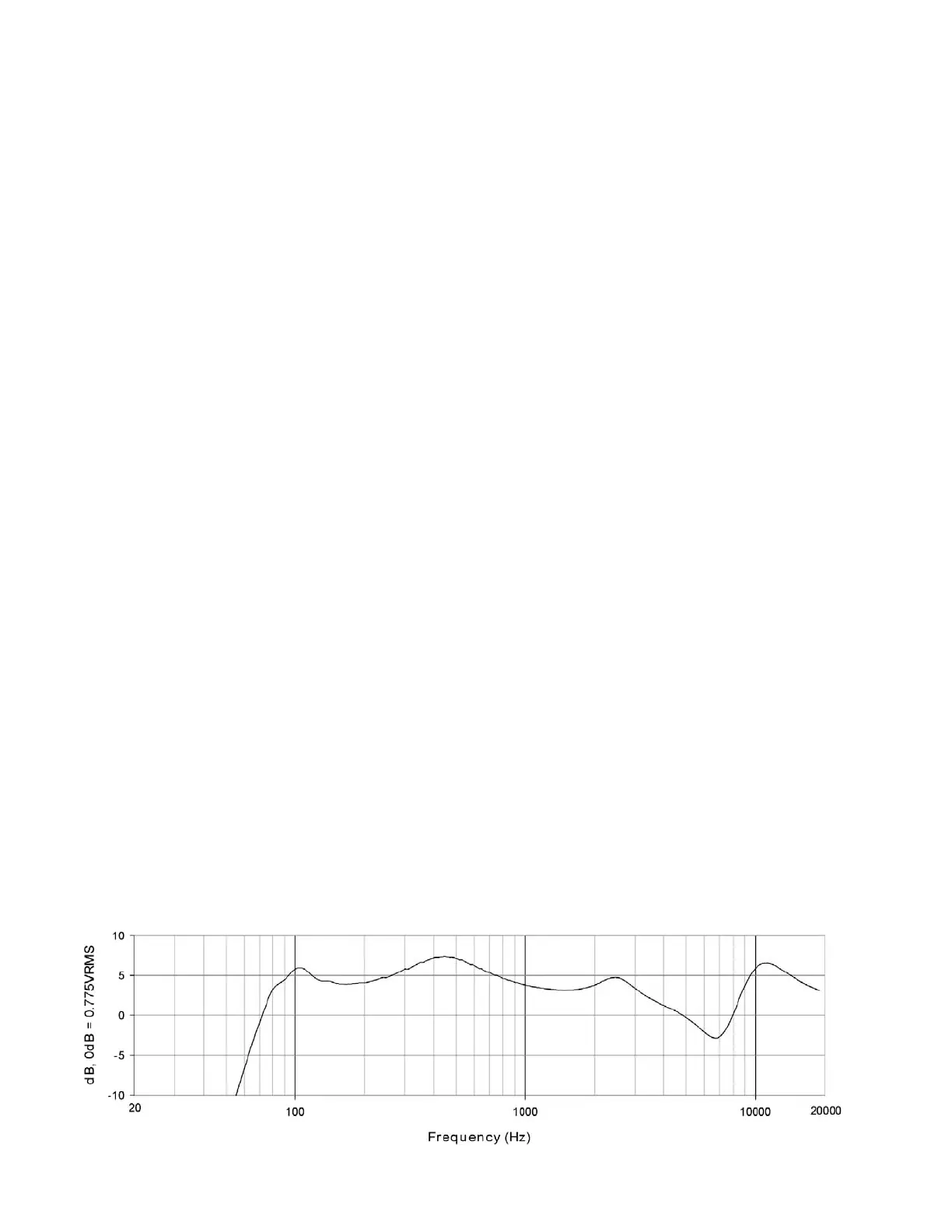

Recommended Loudspeaker Equalization Curve
