Page #7 background image
7
Disassembly Procedures

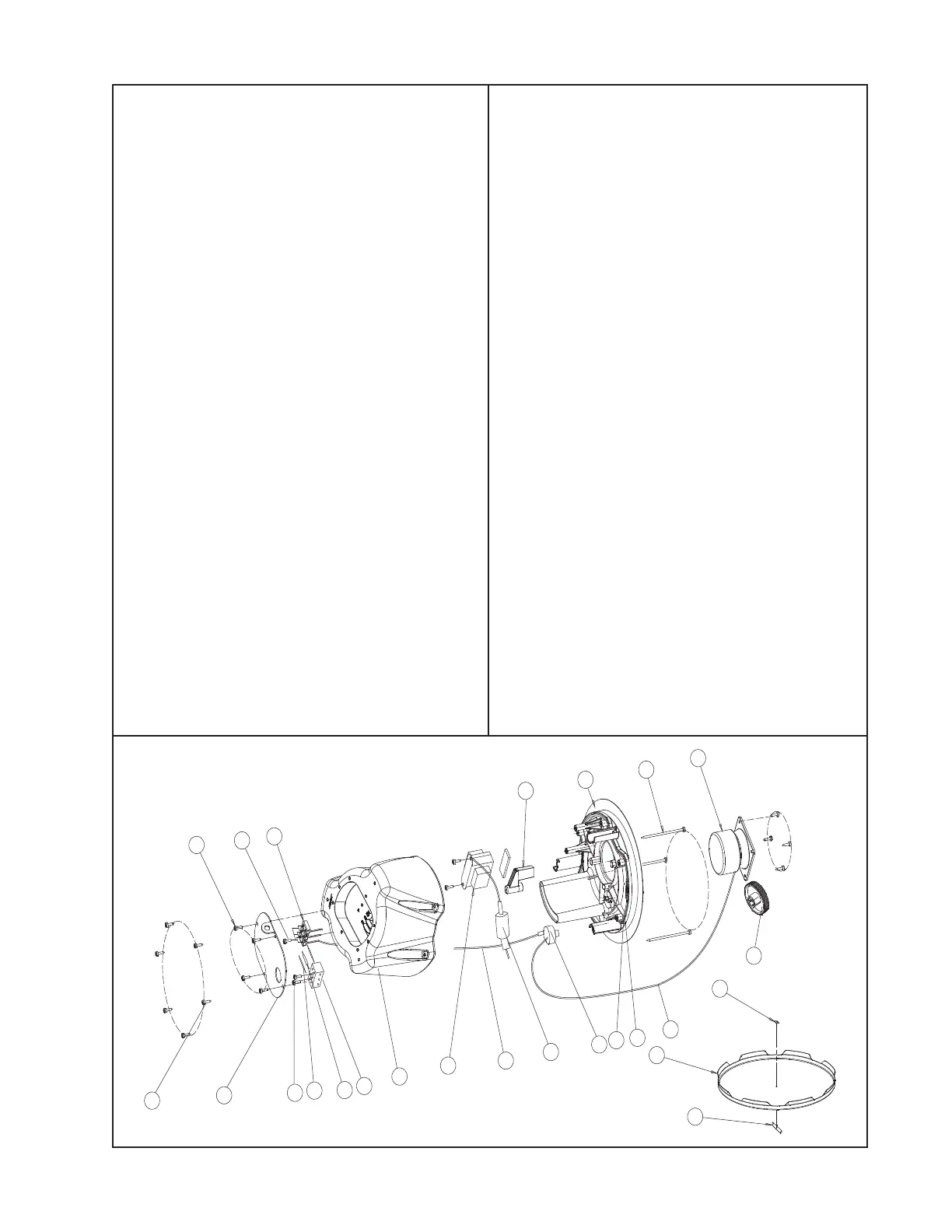

Note: Refer to the figure below for the
following procedures.
1. Grille Removal
1.1 Carefully pull the grille (23) away from the
baffle (5). Take care to not mark the surface
of the grille or the baffle.
2. Driver Removal
2.1 Perform procedure 1.
2.2 Remove the four screws that secure the
driver (7) to the baffle (5).
2.3 Unplug the two faston connectors from
the wiring harness. Lift out the driver.
3. Rotary Switch Removal
3.1 Perform procedure 1.
3.2 Remove the TAP select knob (8).
3.3 Remove the six screws that secure the
baffle (5) to the enclosure (16).
3.4 Make a note of the wiring configuration
and unplug the three wires from the input
terminals.
3.5 Remove the nut that secures the rotary
switch (12) to the baffle. Lift out the rotary
switch.
Re-assembly Note: Be sure the rotary
switch is facing the correct direction and be
sure the lock washer is at "7" position when
you place the rotary switch onto the baffle.
4. Transformer Removal
4.1 Perform procedure 1.
4.2 Remove the six screws that secure the
baffle (5) to the enclosure (16).
4.3 Make a note of the wiring configuration
and unplug the three wires from the input
terminals.
4.4 Remove the nut that secures the rotary
switch (12) to the baffle.
4.5 Remove the screws that secure the
transformer (15) to the baffle. Lift out the
transformer.
Re-assembly Note: Be sure the rotary
switch is facing the correct direction and be
sure the lock washer is at "7" position when
you place the rotary switch onto the baffle.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
22
23
24
