Bose FreeSpace DS 16F Service Manual

6
Main Part List
FreeSpace
®
Model 16F

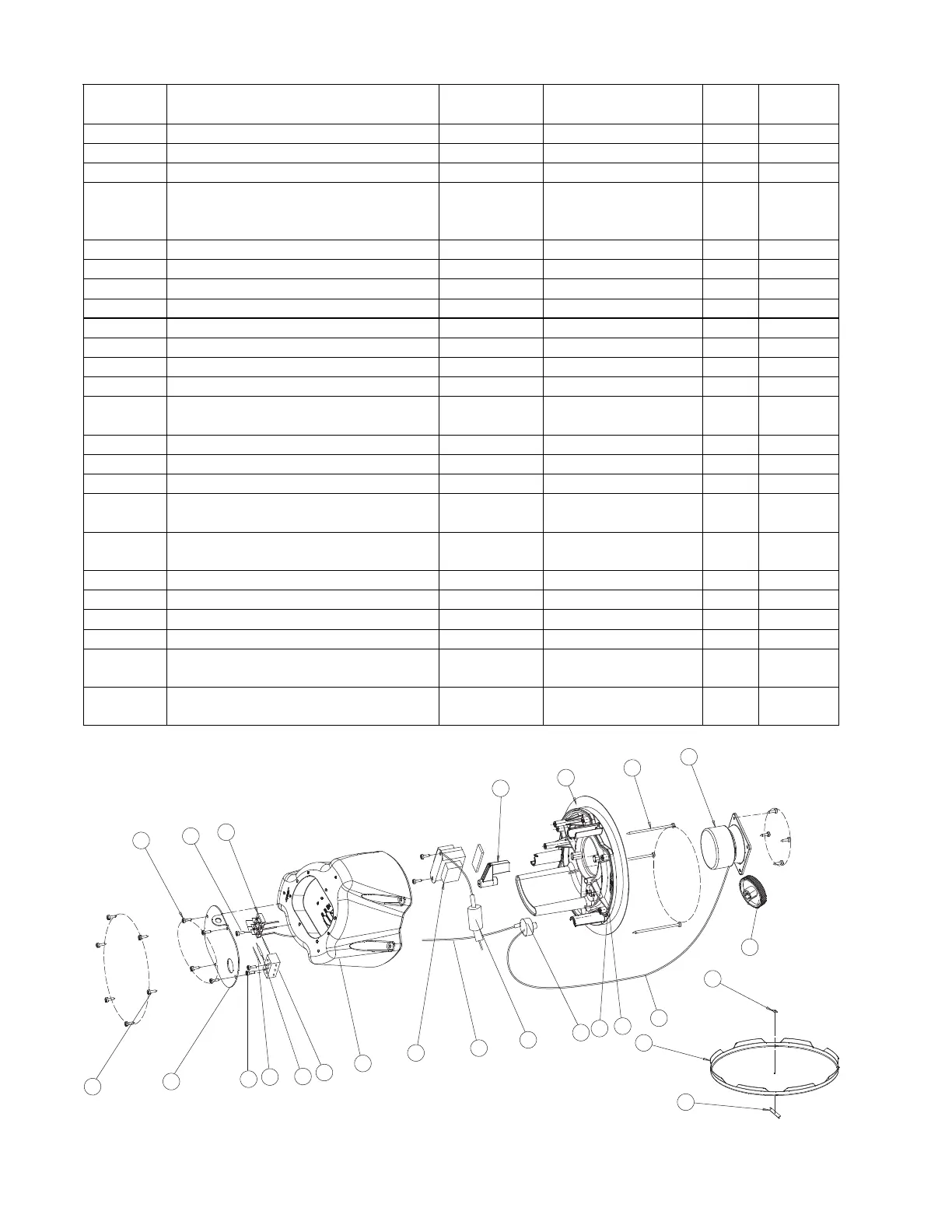

Figure 2. FreeSpace DS16F Exploded View
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
22
23
24
Item
Number
Description
Bose
®
®®
®
Part
Number
Vendor Part
Number
Qty.
Note
1 WOOD SCREW, M4x12, 6.8 - 2910-4012+3000 16 4
2 SCREW, #8-32, WIRE CLAMP - 2AZZ-0007+ZZZZ 6 4
3 TERMINAL, 20x30x10, BS02XC 4135-6241+0 3
4 ANCHOR
BLACK
WHITE
303892
303893
4154-4982+1
4154-4981+1
3
4 WIRE, CON, #20, UL1015, L160 - 7012-6999+0 1
5 BAFFLE, WHITE - 4154-5064/5+6 1 4
6 SCREW, CLASS 1, PAN, M3.5x7 - 2A10-3575+3000 3 4
7 DRIVER, 2.25” (57MM) INDOOR 298081 8900-3840+0 1
8 KNOB 295898-003 2447-3602+1 1
10 EVA GASKET, 5x500 - 4153-3331+0 1.5 4
11 EVA GASKET, 3x515 - 4149-0311+0 1.5 4
12 SWITCH, ROTARY 5200-4933+1 1
13 CAP, ELECTROLYTIC, 200uF,
63V, 10%, NP, ALUM
- 8910-0810+0 1
14 WIRE ASSY, W110&SLEEVE - 7012-6369-+0 1
15 XFMR, AUDIO, 70/100V 296602 1806-3573+5 1
16 ENCLOSURE, DS16F - 4154-5051/2+2 1 4
17 TERMINAL, CERAMIC BLOCK - 2113-1956+0 1 3
18 THERMAL FUSE, RATED 100C - 8910-3595+1 1 3
19 UL 1007, WHITE - 1681-0090+C 0.1
20 SCREW, T4.0x20MM, TAPPING - 2910-4020+3000 2 4
21 JUNCTION BOX, BS02XC - 1404-6501+1 1
22 CLIP, RETAINING - 4135-2391+0 1
23 GRILLE, BLACK 296711 4135-2262+1 1
GRILLE, WHITE 296712 4135-2263+1
24 BOSE LOGO, BLACK 303977 4154-4992+0 1
BOSE LOGO, WHITE 303895 4154-4991+0

Bose FreeSpace DS 16F Specifications

General

Tweeter	-
Speaker type	Full range
Driver diameter	57 mm
Number of drivers	1
Speaker enclosure	Ported
Speaker placement	Ceiling-mountable
Audio output channels	1.0 channels
Product color	Black
Recommended usage	Universal
Suitable for outdoor use	No
Impedance	8 Ω
Sensitivity	84 dB
Frequency range	80 - 19000 Hz
RMS rated power	16 W
Peak Music Power Output (PMPO)	64 W
Connectivity technology	Wired

Weight and Dimensions

Weight	1900 g
