5. Approved adhesives for use with this connector are Ciba-Geigy Uralane 5754-
A/B, Lord 710, or VTCS-6 Vibratite. Do not let any cyanoacrylate-based
adhesives (e.g., Loctite), flux remover, or other caustic compounds come into
contact with the installed connector body. These chemicals will cause
deterioration and/or irreparable damage to the connector. For information on
chemical compatibility and connector part number, contact LEMO USA, Santa
Rosa, CA
at 1-800-444-5366.

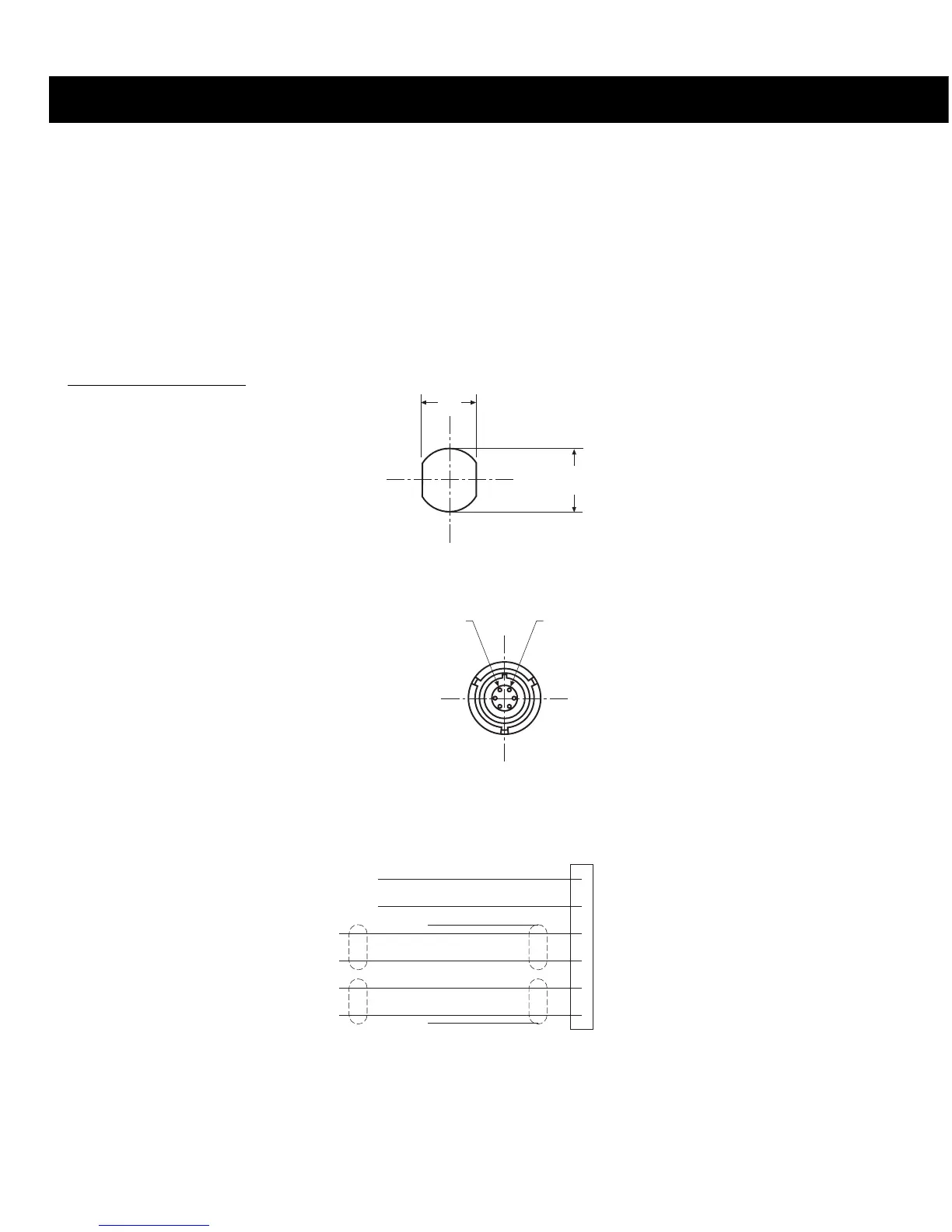

Figure 9
Connector technical
information
PIN 6
PIN 1
PANEL HOLE REQUIRED
AIRCRAFT INTERFACE SCHEMATIC
RED
•
1 V+IN
BLK
•
2 GND
WHT
•
3 COMM L
BLK
•
4 COMM R
WHT
•
5 MIC HI
WH/BLU
•
6 MIC LO
BLK
BLK
12.6mm
.5"
14.1mm
.56"
RECEPTACLE - PINOUT (FRONT VIEW)
