Bose Panaray MA12 Service Manual

5
Main Part List
Panaray
®
MA12 Loudspeaker System (see Figure 2)
Part Number Item
Number
Description
Black White
Qty
Note
1 SCREW, CONNECTOR, M3x13 - - 4 4
2 CONNECTOR, NEUTRIK 298548 298548 2
3 GASKET, ENDCAP 259133 259133 2
4 SCREW, ENDCAP, M3.5x13 - - 12 4
5 ENDCAP 259132-001 259132-002 2
6 GASKET, DRIVER 298549 298549 12
7 DRIVER, 2.25” 298550 298550 12
8 SCREW, BAFFLE, M4.5x12 - - 16 4
9 SCREW, DRIVER, M3.5x8 - - 48 4
10 U-CHANNEL, GRILLE - - 2M 4
12 LOGO, BOSE 298552-001 298552-002 1
11 GRILLE 298551-001 298551-002 1
13 U-CHANNEL FOR GRILLE COVER - - .35M 4
14 GRILLE TRIM - - 2 4
15 BARRIER TERMINAL - - 1 4
16 SCREW, BARRIER TERMINAL,
M3x14
- - 2 4
- CVT-12 TRANSFORMER
(ACCESSORY ITEM)
040190 040191 1

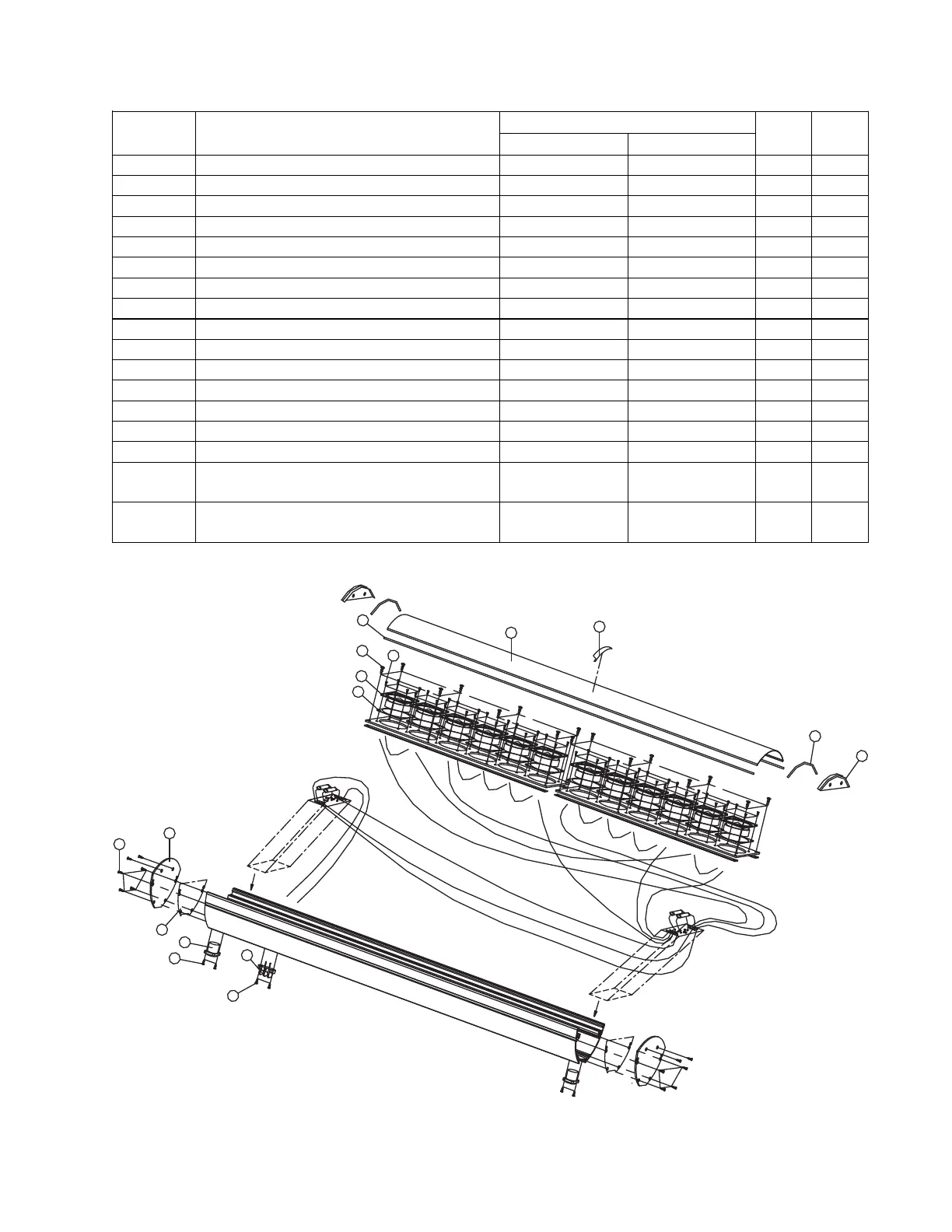

Figure 2. Panaray
®
MA12 Loudspeaker System Exploded View
3
3
1
2
6
5
4
7
8
9
01
11
2
1
31
4
1
61
5
1

Bose Panaray MA12 Specifications

General

Product color	Black
Recommended usage	-
Driver diameter	64 mm
Number of drivers	12
Audio output channels	- channels
Mid-range driver diameter (imperial)	2.25 \
Impedance	8 Ω
Sensitivity	88 dB
Frequency range	100 - 16000 Hz
RMS rated power	300 W
Peak Music Power Output (PMPO)	1200 W
Bluetooth	No
Connectivity technology	Wired

Weight and Dimensions

Depth	128 mm
Width	105 mm
Height	984 mm
Weight	8500 g
