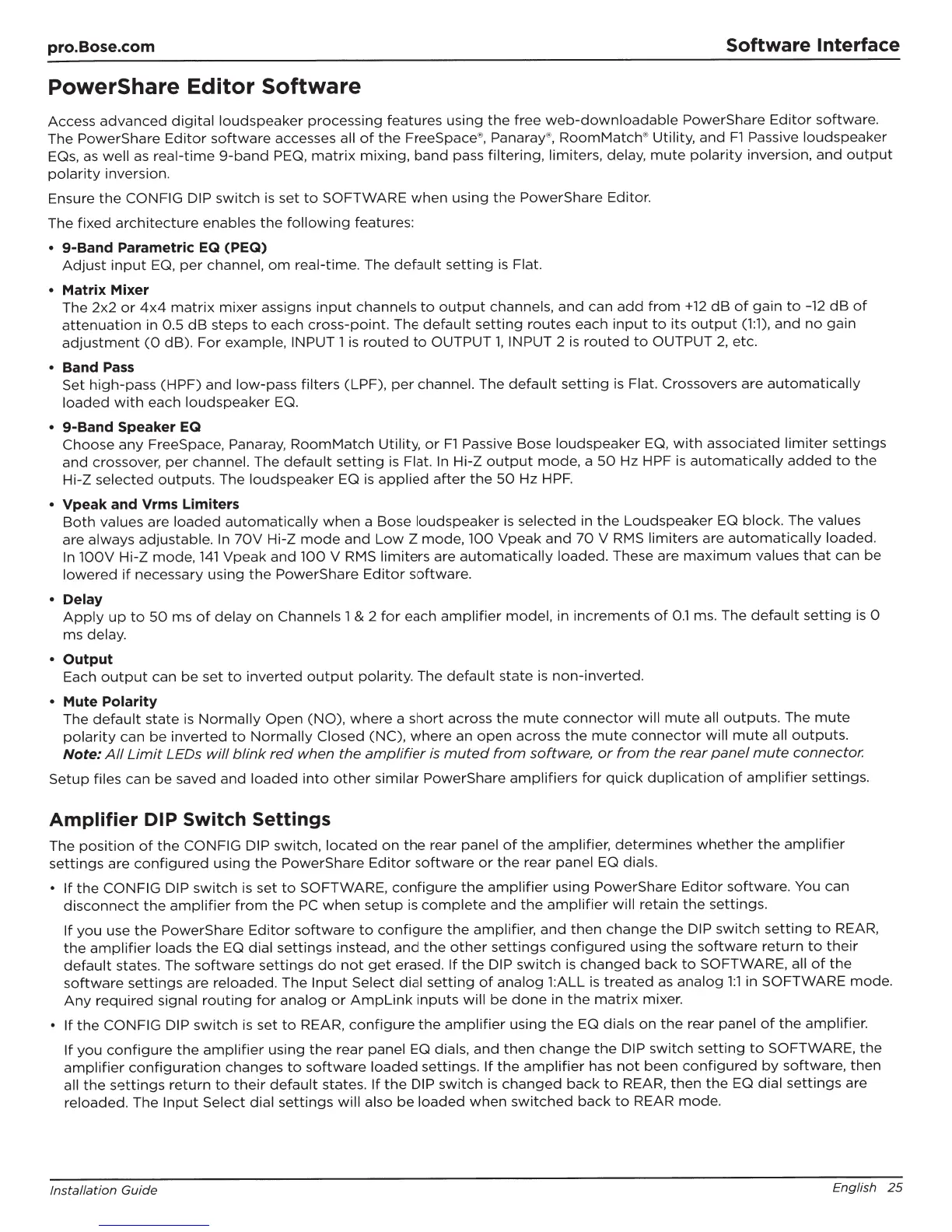

Software Interface
PowerShare Editor Software
Access
advanced
digital
loudspeaker
processing
features
using
the
free
web-downloadable
PowerShare
Editor
software.
The
PowerShare
Editor
software
accesses
all
of
the
FreeSpace®, Panaray®,
RoomMatch
®
Utility,
and
F1
Passive
loudspeaker
EQs,
as
well
as
real-time
9-band
PEQ,
matrix
mixing,
band
pass
filtering,
limiters, delay,
mute
polarity
inversion,
and
output
polarity
inversion.
Ensure
the
CONFIG DIP
switch
is
set
to
SOFTWARE
when
using
the
PowerShare Editor.
The fixed
architecture
enables
the
following
features:
•
9-Band Parametric EQ
(PEQ)
Adjust
input
EQ,
per
channel,
om
real-time.
The
default
setting
is
Flat.
•
Matrix Mixer
The
2x2
or
4x4
matrix
mixer assigns
input
channels
to
output
channels,
and
can
add
from
+12
dB
of
gain
to
-12
dB
of
attenuation
in
0.5
dB
steps
to
each
cross-point.
The
default
setting
routes
each
input
to
its
output
(1:1),
and
no
gain
adjustment
(0
dB).
For
example, INPUT
1
is
routed
to
OUTPUT
1,
INPUT 2 is
routed
to
OUTPUT
2,
etc.
• Band
Pass
Set high-pass
(HPF)
and
low-pass
filters (LPF),
per
channel. The
default
setting
is
Flat.
Crossovers are
automatically
loaded
with
each
loudspeaker
EQ.
•
9-Band Speaker EQ
Choose
any
FreeSpace, Panaray,
RoomMatch
Utility,
or
F1
Passive
Bose
loudspeaker
EQ,
with
associated
limiter
settings
and
crossover,
per
channel. The
default
setting
is
Flat.
In
Hi-Z
output
mode,
a
50
Hz
HPF
is
automatically
added
to
the
Hi-Z
selected
outputs.
The
loudspeaker
EQ
is
applied
after
the
50
Hz
HPF.
•
Vpeak and
Vrms
Limiters
Both
values
are
loaded
automatically
when
a Bose
loudspeaker
is
selected
in
the
Loudspeaker
EQ
block.
The values
are always
adjustable
. In
70V
Hi-Z
mode
and
Low
Z mode,
100
Vpeak
and
70
V
RMS
limiters
are
automatically
loaded.
In
100V
Hi-Z
mode,
141
Vpeak
and
100
V
RMS
limiters
are
automatically
loaded.
These are
maximum
values
that
can
be
lowered
if
necessary using
the
PowerShare
Editor
software.
• Delay
Apply
up
to
50
ms
of
delay
on
Channels
1
&
2
for
each
amplifier
model,
in
increments
of
0.1
ms. The
default
setting
is
0
ms
delay
.
• Output
Each
output
can
be
set
to
inverted
output
polarity.
The
default
state
is
non-inverted.
•
Mute
Polarity
The
default
state
is
Normally
Open
(NO),
where
a
short
across
the
mute
connector
will
mute
all
outputs.
The
mute
polarity
can
be
inverted
to
Normally
Closed (NC),
where
an
open
across
the
mute
connector
will
mute
all
outputs.
Note:
All
Limit
LEOs
will
blink
red
when
the
amplifier
is
muted
from
software
,
or
from
the
rear
panel
mute
connector.
Setup
fil
es
can
be
saved and
loaded
into
other
similar
PowerShare
amplifiers
for
quick
duplication
of
amplifier
settings.
Amplifier DIP Switch Settings
The
position
of
the
CON
FIG
DIP
switch,
located
on
the
rear
panel
of
the
amplifier,
determines
whether
the
amplifier
settings
are
configured
using
the
PowerShare
Editor
software
or
the
rear
panel
EQ
dials.
•
If
the
CON FIG DIP
switch
is
set
to
SOFTWARE,
configure
the
amplifier
using
PowerShare
Editor
software.
You can
disconnect
th
e
amplifier
from
the
PC
when
se
tup
is
complete
and
the
amplifier
will
retain
the
settings.
If
you use
the
PowerShare
Editor
software
to
configure
the
amplifier,
and
then
change
the
DIP
switch
setting
to
REAR,
the
amplifier
loads
th
e EQ
dial
settings
instead, a
nd
the
other
settings
configured
using
th
e
software
return
to
their
default
states. The
software
settings
do
not
get
erased.
If
the
DIP
switch
is
changed
back
to
SOFTWARE, all
of
the
s
oftware
settings
are
reloaded.
The
Input
Select dial
setting
of
analog
l:ALL
is
treated
as
analog
1:1
in
SOFTWARE
mode.
Any
required
signal
routing
for
analog
or
AmpLink
inputs
will
be
don
e in
the
matrix
mixer
.
•
If
the
CONFIG DIP
switch
is
set
to
REAR,
configure
the
amplifier
using
the
EQ
dials
on
th
e rear
panel
of
the
amplifier.
If
you
configure
the
amplifier
using
th
e rear
pan
el EQ
dials,
and
then
c
hange
th
e
DIP
switch
setting
to
SOFTWARE,
the
a
mplifi
er
co
nfiguration
changes
to
s
oftware
load
ed se
ttings.
If
th
e
a
mplifier
has
not
been
co
nfigured
by
software,
then
all
the
s~ttings
return
to
their
default
states.
If
the
DIP
switch
is
changed
back
to
REAR,
then
the
EQ
dial
settings
are
reloaded.
The
Input
Select dial
settings
will
also
be
loaded
when
switched
back
to
REAR
mode.
Insta
ll
a
ti
on G
uid
e
E
ngli
sh
25
