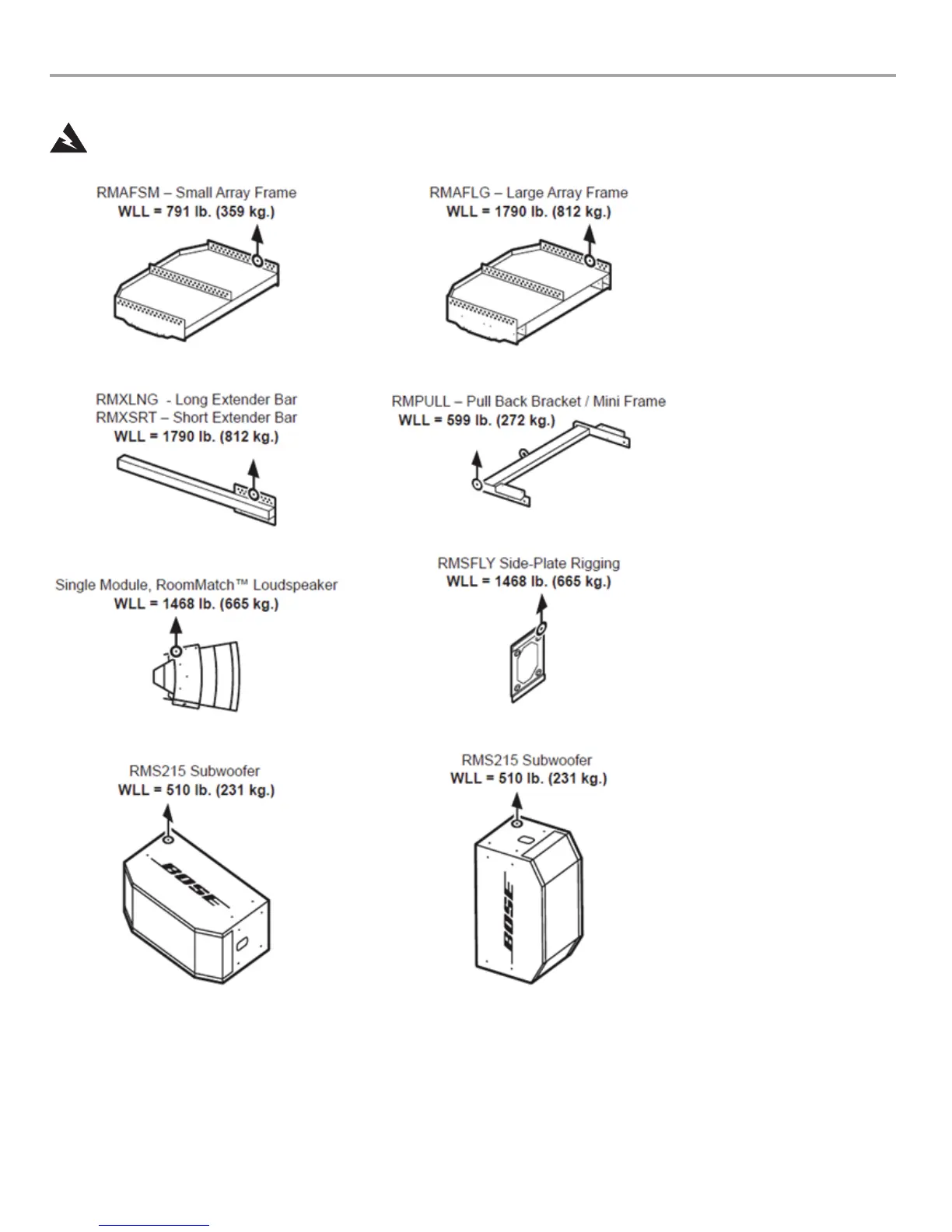

Figure 6. Working Load Limit, Single-Point, 10:1 Design Factor (In Accordance with ANSI E1.8-2005
WARNING! Never apply a force that exceeds the Working Load Limit of any of the loudspeaker modules, rigging com-
ponents, or complete loudspeaker arrays as described in this document.
Module System Working Load Limits
The above chart shows the Per-Point Working Load Limits for RoomMatch modules and accessories. To calculate the System Work-
ing Load Limit for the component, the per-point value is multiplied by the effective number of attachment points that contribute to load
bearing. While each module side plate requires 4 physical fastener connections (2 per side), the effective load is supported by only 2
connections per module (1 per side) due to the location of the centers of gravity and fastener locations. Therefore, the System Working
Load Limit of the full-range module is rated at: 2 x 1468, or 2936 lbs. This rating is identical for the RMS215 subwoofer with RMSFLY kit.
When the RMS215 subwoofer is suspended using the integral threaded inserts, the effective System Working Load Limit is 2 x 510, or
1020 lbs.
