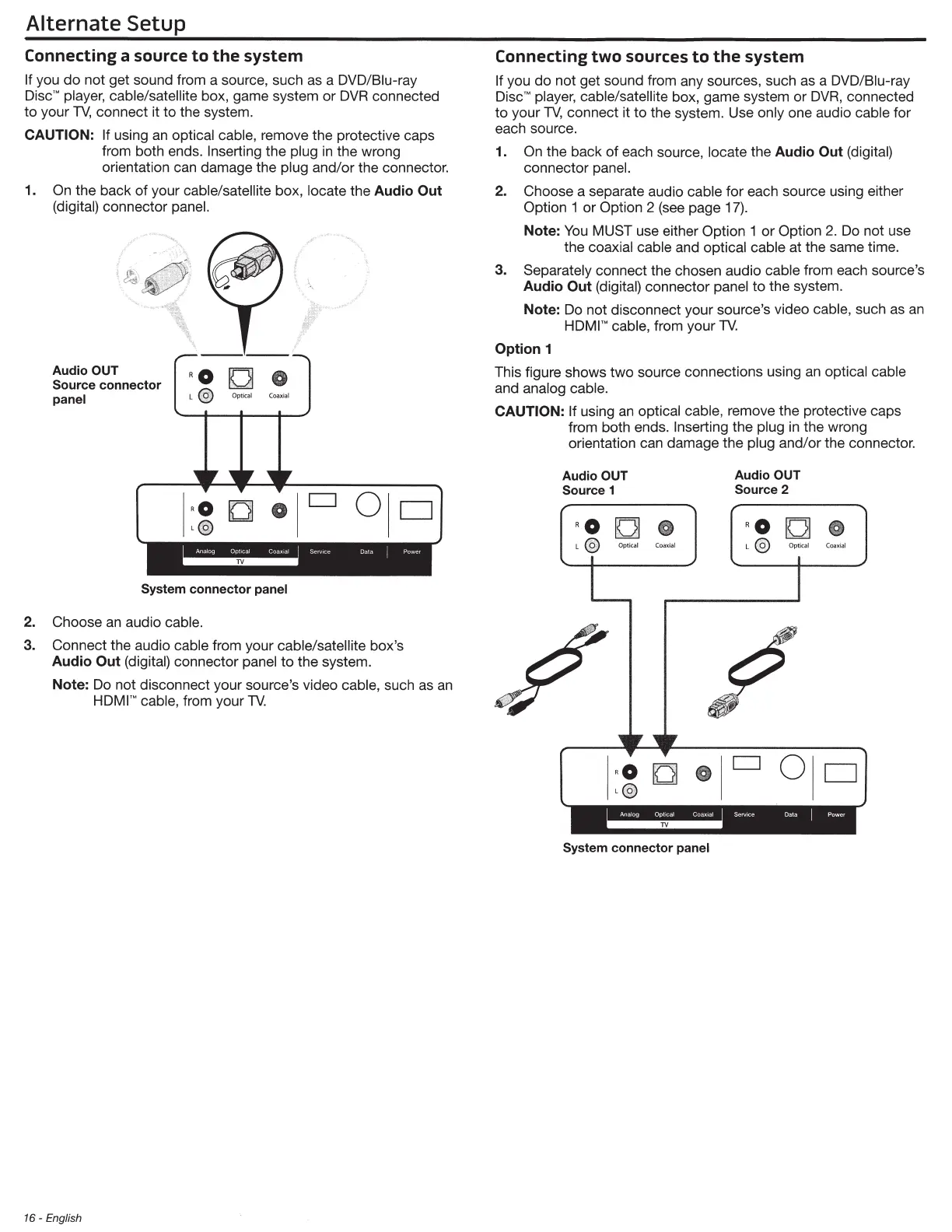

Alternate
Setup
Connecting
a source
to
the
system
If you
do
not get sound from a source, such as a DVD/Biu-ray
Disc
'"
player, cable/satellite box, game system or
DVR
connected
to
your
TV,
connect it to the system.
CAUTION: If
using
an
optical cable,
remove the protective caps
from both ends.
Inserting the
plug
in the wrong
orientation can damage the plug
and/or the connector.
1. On
the back
of
your cable/satellite
box,
locate the
Audio
Out
(digital)
connector
panel.
Audio
OUT
Source
connector
panel
·o D o
L
@
Opti
ca
l
Coax
ia
l
System
connector
panel
2. Choose
an
audio
cable.
,-
-'
3. Connect the audio cable
from your
cable/satellite
box's
Audio
Out
(digital) connector
panel
to
the system.
Note:
Do
not disconnect your source's video
cable, such as
an
HDMI
'"
cable, from your
TV.
16
- English
Connecting
two sources
to
the
system
If
you
do
not get sound from any sources, such
as
a
DVD
/Biu-ray
Disc
'"
player, cable/satellite
box, game system or
DVR,
connected
to your
TV
, connect it
to
the system. Use
only one audio
cable
for
each source.
1.
On
the back
of
each source,
locate
the
Audio
Out
(d
igital)
connector panel.
2.
Choose a separate audio
cable
for each source using either
Option 1 or Option 2
(see
page 17).
Note:
You
MUST use either Option 1
or
Option 2. Do not use
the
coaxial cable
and
optical cable
at the same time.
3.
Separately connect the chosen audio cable from each source's
Audio
Out
(digital) connector panel
to
the system.
Note: Do not disconnect your source's video cable,
such
as
an
HDMI'" cable,
from your
TV.
Option
1
This figure shows
two
source connections using
an
optical cable
and
analog cable.
CAUTION: If
using an
optical cable, remove the protective caps
from both ends.
Inserting
the
plug
in
the wrong
orientation can dama
ge
the
plug and/
or
the connector.
Audio
OUT
Audio
OUT
Source 1
Source 2
·o
[Q]
@
·o
OJ
0
L@
Optical
Coaxi
al
L@
Optical
Coaxial
Se
rv1
ce
Data
I
Power
System
connector
panel
