Option
2

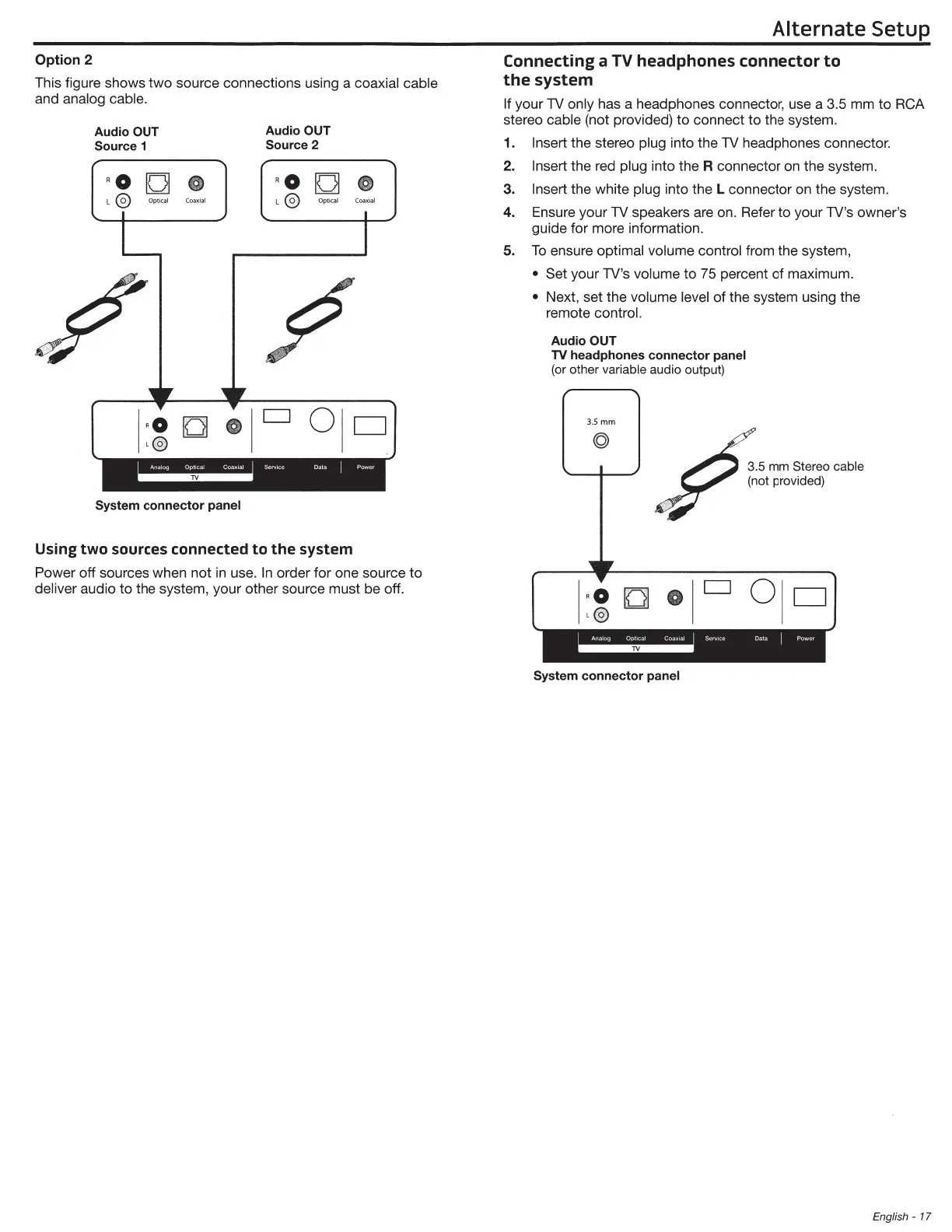

This figure shows
two
source connections using a coaxial cable
and analog cable.
Audio
OUT
Audio
OUT
Source
1
Source
2
Ro
D
0
Ro
D
@
L@
Opti
ca
l Coaxial
l@
Optical Coaxial
System
connector
panel
Using
two
sources connected
to
the
system
Power off sources when not in use.
In
order for one source
to
deliver audio
to
the system, your other source must be off.
Alternate
Setup
Connecting a TV headphones connector
to
the
system
If your
TV
only has a headphones connecto
r,
use a 3.5 mm
to
RCA
stereo cable (not provided) to connect
to
the system.
1. Insert the stereo plug into the
TV
headphones connector.
2. Insert the
red
plug into the R connector on the system.
3. Insert the white plug into the L connector on the system.
4.
Ensure your TV speakers are on. Refer to your TV's owner's
guide for more information.
5.
To
ensure optimal volume control from the system,
• Set your TV's volume
to
75
percent
of
maximum.
• Next, set the volume level of the system using the
remote control.
Audio
OUT
TV
headphones
connector
panel
(or other variable audio output)
3.5 mm
3.5 mm Stereo cable
(not provided)
~
Se
~
ce
D"
" I P
ow"
System
connector
panel
Engl
ish-
17
