USB UPDATE PROCEDURE
The SoundDock Digital Music System changed
the way it charges the iPod in October of 2008.
The system now charges via the USB charge
pins on the iPod.
This change was based on information received
from Apple describing a change to the iPod
charge circuit. iPods manufactured before 8/08
have the ability to charge via Firewire and USB,
some new iPods introduced in November of
2008 will not support the Firewire charge circuit.
It is possible to upgrade SoundDock systems
built before 8/08 from Firewire to USB charging
by replacing the Dock and DSP boards with the
upgraded versions. Use this procedure to up-
grade older systems to USB charging.
Equipment Required
a. DSP board / Cradle Assy -
Black - 279103-008
White - 279103-010
b. Phillips-head screw driver
c. Bose Logo
Black - 277381-002
White - 277381-001

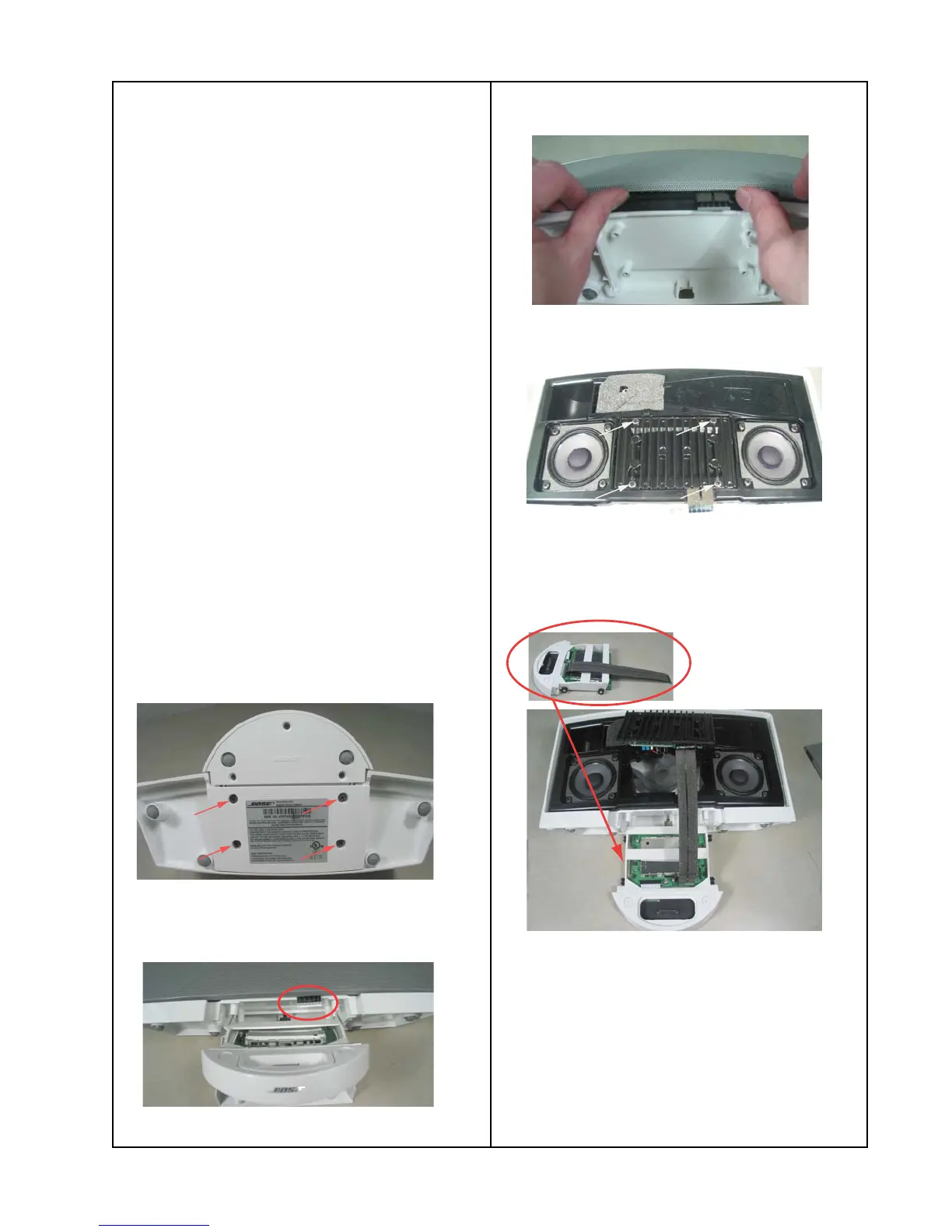

1. Original Dock Removal
1.1 Remove the four Phillips-head screws
securing the bottom cradle cover.
1.2 Remove cable connected to J300.
2. Grille and Amplifier board Removal
2.1 Remove the grille by pushing upward as
shown above.
2.2 Remove the four Phillips-head screws
securing the amp board to the acoustic
enclosure.
3. Install the DSP/Cradle Upgrade Assembly
3.2 Connect the flex cable to J300 on the new
upgrade assembly and install the cradle along
with the amplifier board.
3.3 Install Bose logo on the front of the cradle.
3.4 Fully test with iPod to confirm correct
operation.
