DISASSEMBLY PROCEDURE
Battery removal Removal (Continued)
2.8 Lift the battery up and away from the enclo-
sure. The battery will still be connected to the boost
board but cannot be fully removed until the end of
the procedure.
2.9 As shown in Figure 11, insert your thumb into
the battery cavity and press upward on the rear
baffl e.
2.10 Hold the FFC against the transducer through
the battery opening while rocking the baffl e back/
forth as you slide it out of the cabinet. The FFC will
slide out of the slot in the rear baffl e while extract-
ing the baffl e in this way.
Note: Placing strain on the FFC Main PCB con-
nector can damage the connector if the FFC is not
held.
2.11 Using your thumb, push up on the Amp PCB
as shown in Figure 13 to release it from the boost
board.
2.12 Disconnect the speaker wire harness from the
AMP PCB.
2.13 Release the Boost board from the main board
connector by pushing upward. Figure 14, left.
2.14 Once the connector is unplugged, pull outward
on the boost board to release it from the slot. Figure
14, right.
2.15 Lift the battery away from the enclosure by
twisting the boost board to allow it to exit from the
assembly along with the battery.

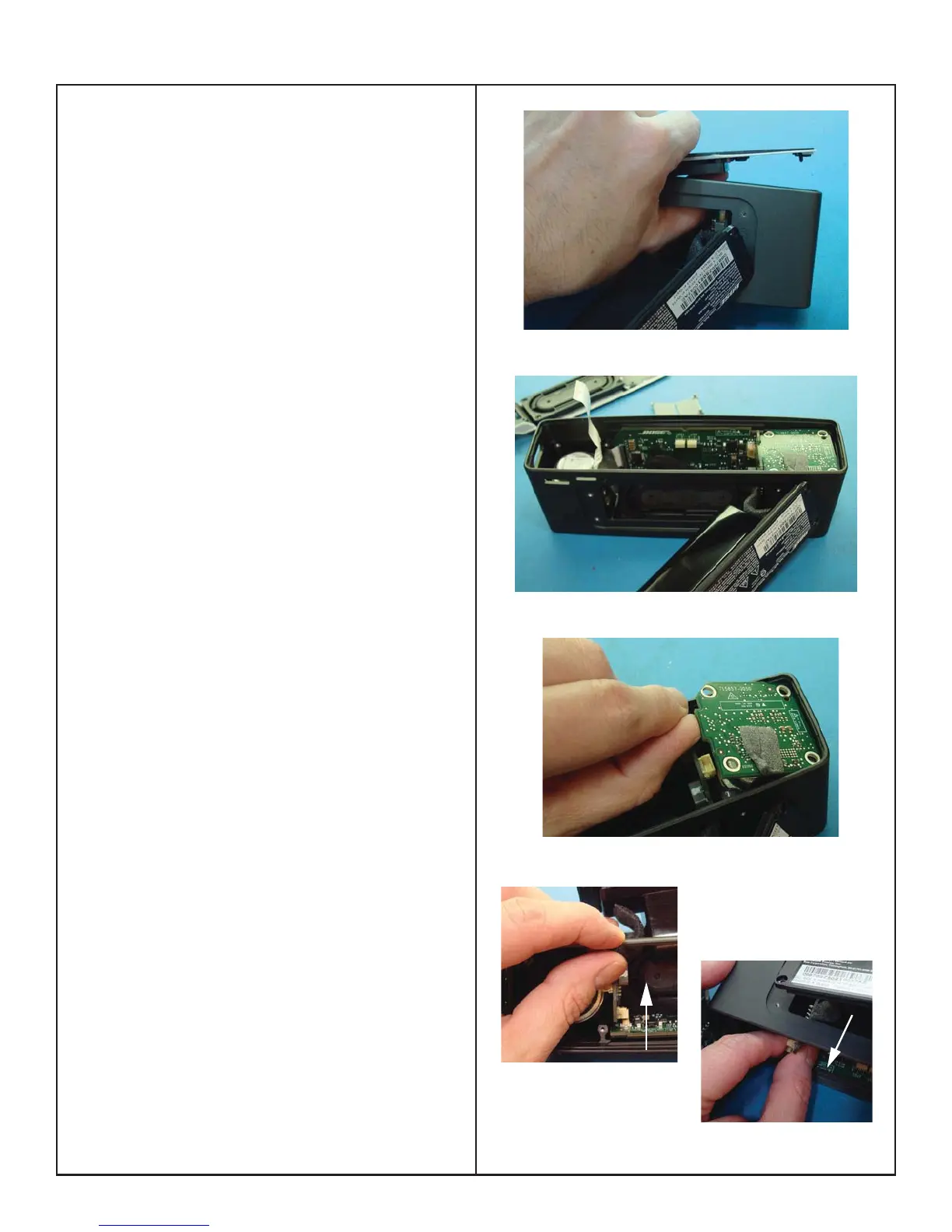

Figure 11.
Figure 12.
Figure 13.
Figure 14.
