24

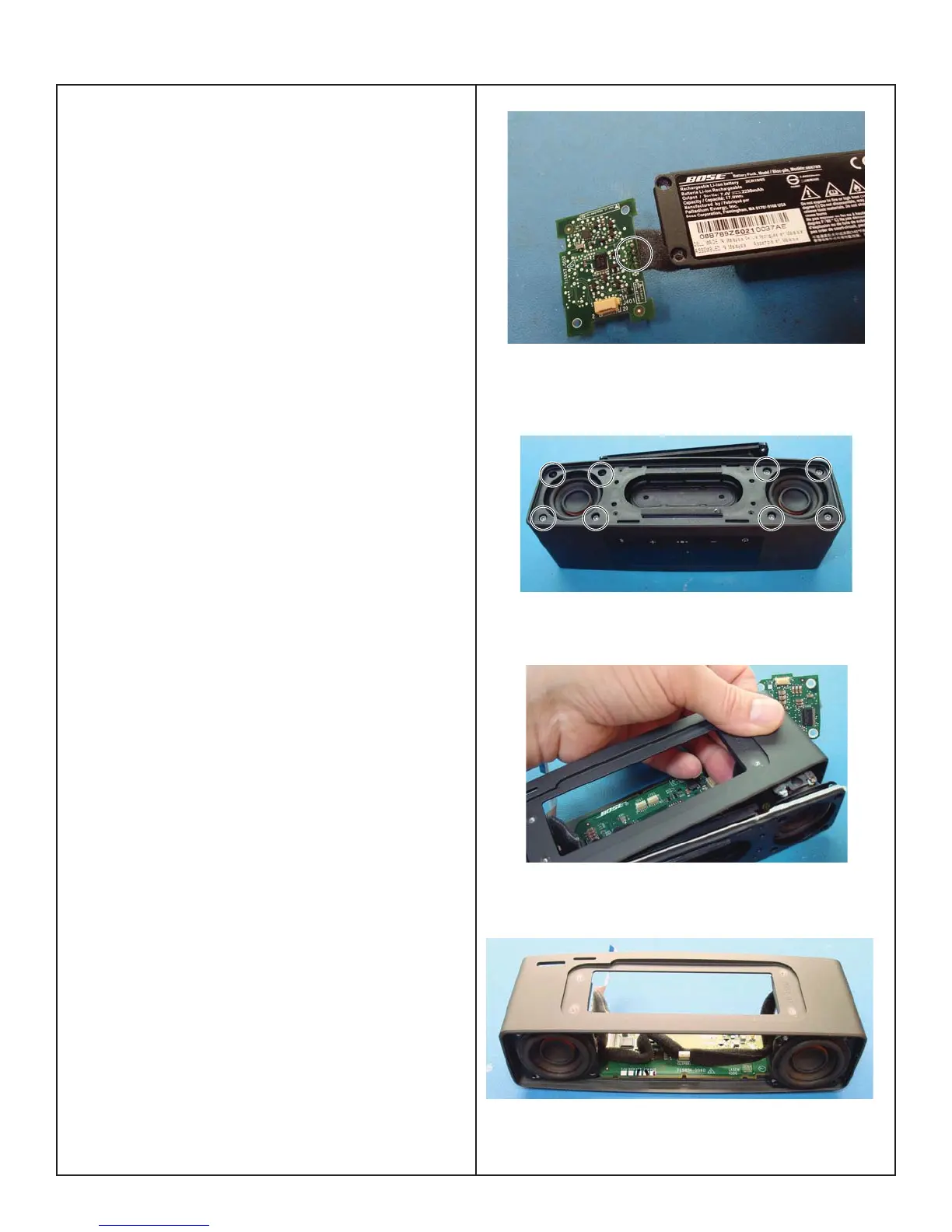

Battery removal Removal (Continued)
2.16 Once the battery and boost board are removed
from the enclosure, the battery cable can be unsol-
dered and a new battery can be installed. Figure 15
shows the solder connections for the battery cable.
3. Driver Removal
3.1 Remove the eight screws securing the front
baffl e. Figure 16.
3.2 As shown in Figure 17, insert your thumb into
the back of the unit or the battery cavity and push
the front baffl e out of the cabinet.
3.3 Lift the left driver out of the cabinet. With a
plastic tool, such as a spudger, release the speaker
harness cable from the AMP PCB.
Figure 15.
Figure 16.
Figure 17.
Figure 18.
DISASSEMBLY PROCEDURE
