Bose SoundLink Mini

8
Place serial number label here
when replacing the foot.
8
9
10
11 12
13
14
7
6
5
4
3
1
30
31
32
2
21
22
2324
25
26
27
28
29
15
18
19
20
16
17
33

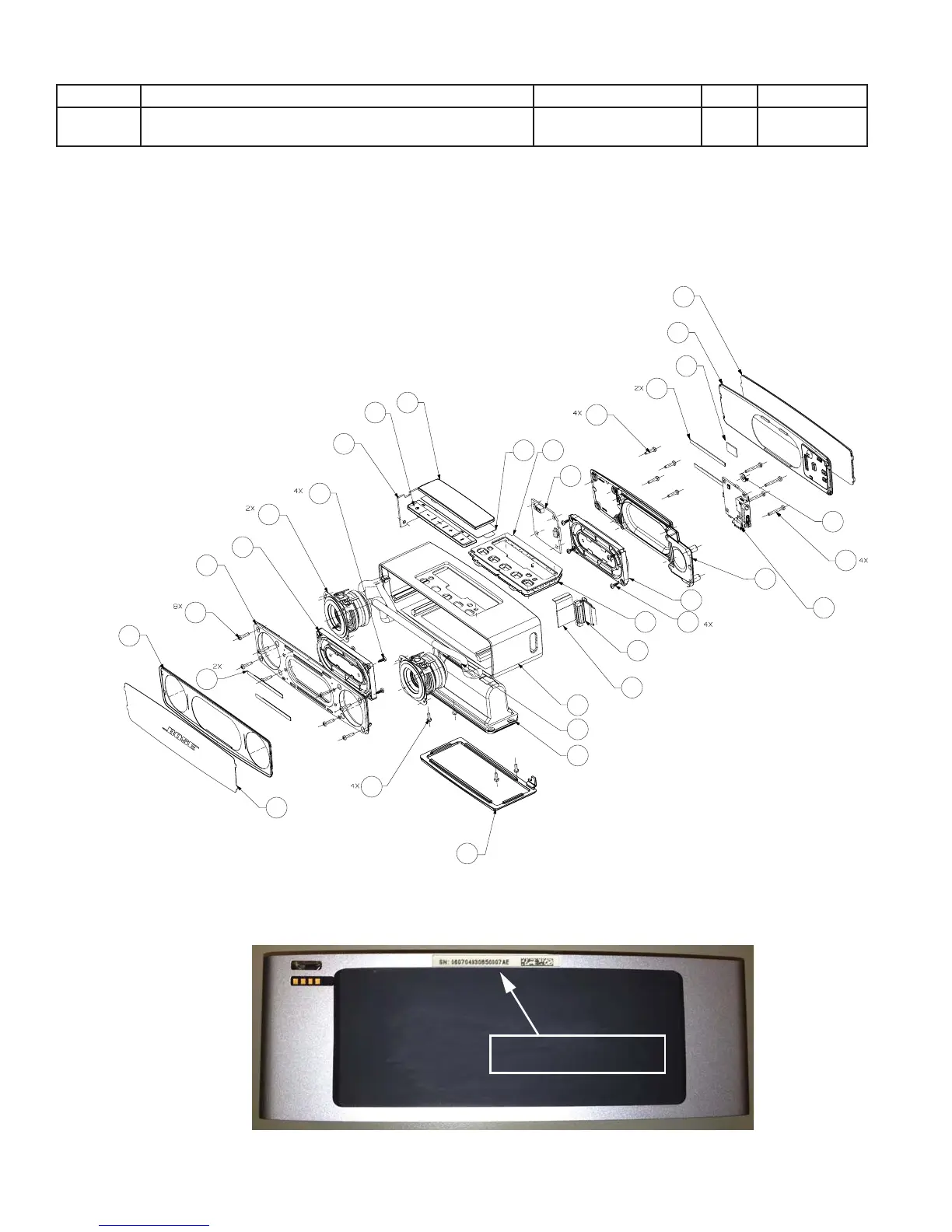

EXPLODED VIEW
Figure 2. SoundLink Mini II Main Assembly, Exploded View
SoundLink Mini II Serial Number Placement (when replacing the foot)
*The replacement foot/battery cover does not have a serial number
printed on it. Print the serial number on a small label and install on the unit above the foot. See Figure 2 on next page.
33 TAPE, FOAM 373978-0010 1
- VELCRO, 6MMX78MM, BLK (Use when replacing the Main
board - see service bulletin 725192-B2)
638167-1078 1
