Bose Surround Speakers User Manual

12
|
ENG
WIRELESS RECEIVER SETUP

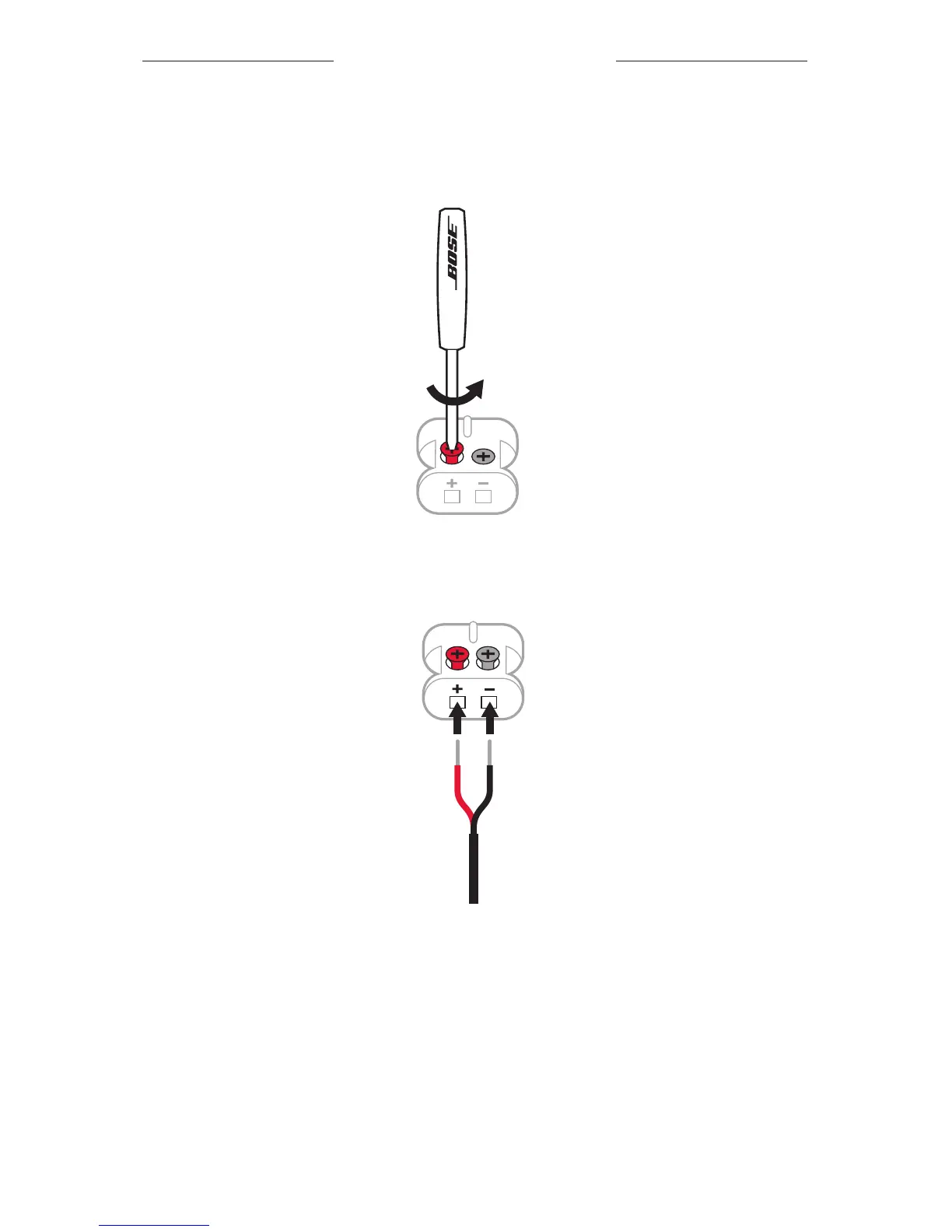

CONNECT THE ADAPTERS
1. Using the screwdriver, turn the screws to the left (counter-clockwise) to loosen the
wire terminals.
2. Insert the red, stripped end of the two-pin cable marked H into the red H terminal.
3. Insert the black, stripped end of the two-pin cable into the silver z terminal.
NOTE: Be sure to only insert the stripped and tinned portions of each exposed
wire to avoid clamping the wire’s insulation.
4. Using the screwdriver, turn the screws to the right (clockwise) to secure the wires
into the terminals.
5. Repeat steps 1 – 4 to connect the other adapter.

Bose Surround Speakers Specifications

General

Certification	CE, FCC
Product color	White
Recommended usage	Home
Speaker type	-
Speaker position	Back
Speaker placement	Floor, Stand-mountable, Tabletop/bookshelf, Wall-mountable
Audio output channels	2.0 channels
RMS rated power	- W
Compatible products	Bose Soundbar 700 Bose Soundbar 500 SoundTouch 300 soundbar
Wi-Fi	Yes
Connectivity technology	Wired & Wireless
Cables included	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	30 W

Weight and Dimensions

Width	- mm
Height	100 mm
Weight	- g
