INSTALLATION(CONT.)
3
Uninstall the Main Unit
1.
Remove the plastic trim out from the main unit.
2. Insert a bracket key into the left and right side of the main unit and draw the
unit out of the mounting sleeve.
- Only support speakers of 4 ohms or above.
- The maximum current of the auto antenna is 200mA.
- The equipment shall be protected by the circuit with max. 10
Amperes of the front end of DC source.
Connect all wiring harness and slide the head unit into the mounting
collar until it clicks into place.

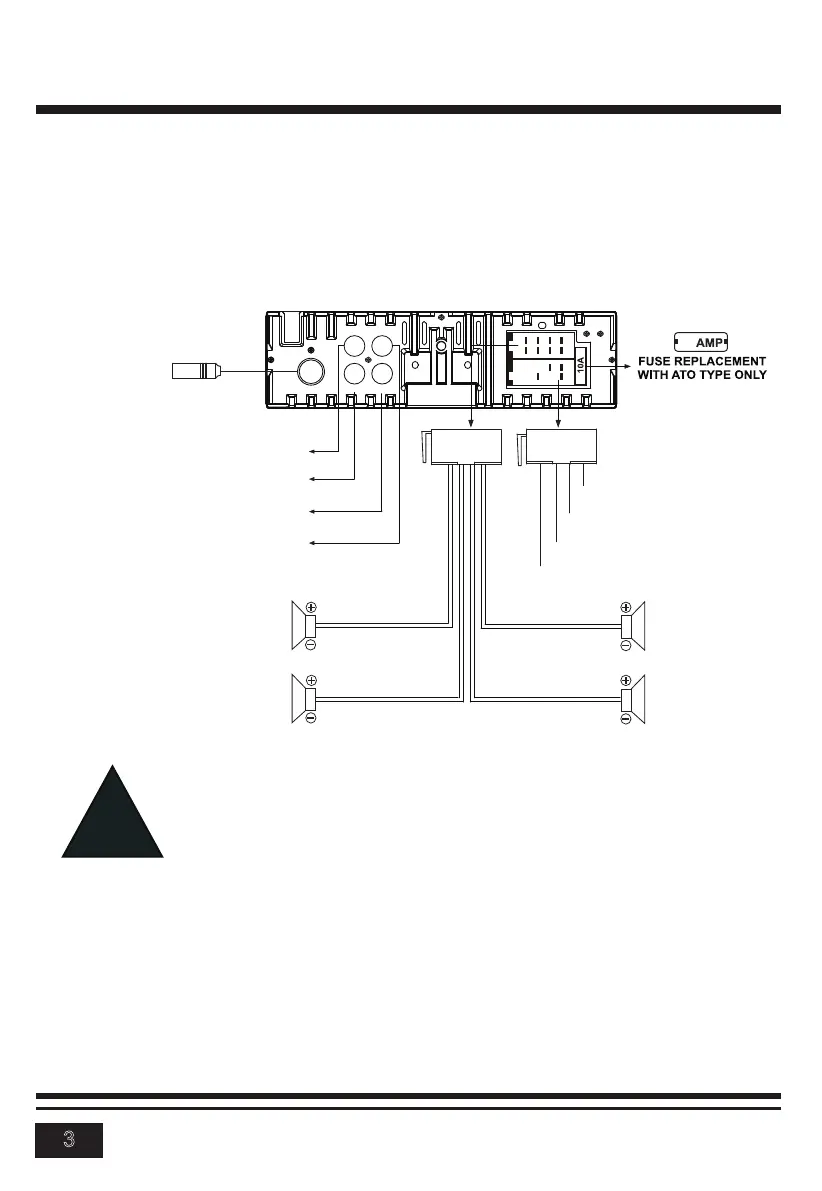

Wiring Connections
ANT
F-R R-R
F-L R-L
10
Radio Antenna
White
Front Left
Speaker
Rear Left
Speaker
Front Right
Speaker
Rear Right
Speaker
White/Black
ACC + (Red)
GND - (Black)
ANT + (Blue)
Power B+ (Yellow)
Gray/Black
Purple
Purple/Black
Green
Green/Black
Gray
Red: Front Right PRE-AMP Output
White: Front Left PRE-AMP Output
White: Rear Left PRE-AMP Output
Red: Rear Right PRE-AMP Output
To Next Page
