12
Connections

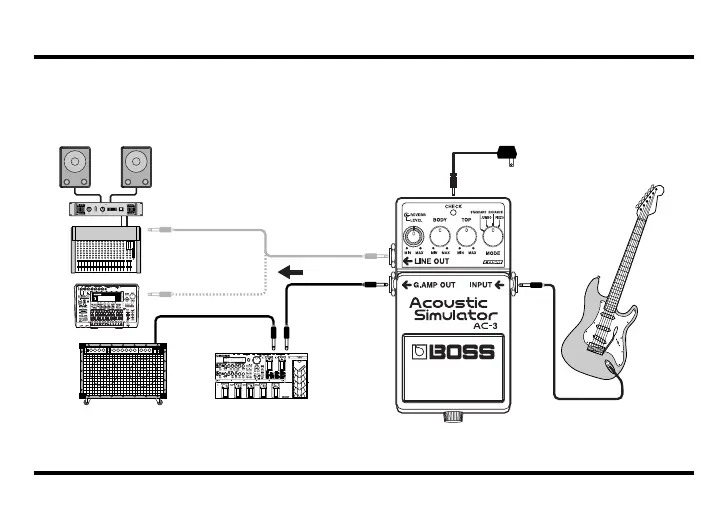

■ With Effect Off
The CHECK indicator is off, the guitar sound (with effect off) is output from the AC-3: G.AMP
OUT jack, and the output from the LINE OUT jack is muted.
fig.11_02
PA System
Recorder
Guitar Amp Multiple Effects, etc.
AC Adaptor
BOSS PSA-series
(sold separately)
Electric Guitar
Guitar sound
(Direct sound)
Mute
