Boss CEB-3 User Manual

10
Operating the Unit

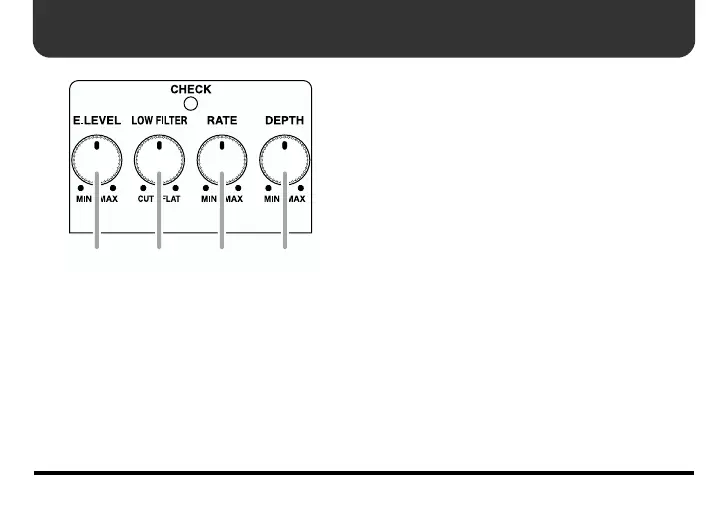

fig.05
1. When you have made the necessary
connections, set the knobs as shown in
the illustration.
2. Depress the pedal switch to turn the
effect on. (Make sure that the CHECK
Indicator lights.)
3. Adjust the speed of the chorus effect
using the RATE Knob.
4. Adjust the depth of the chorus effect
using the DEPTH Knob.
5. Using the LOW FILTER Knob, adjust
the frequency band to which the cho-
rus effect should be applied.
6. Adjust the volume of the processed
sound using the E. LEVEL Knob.
56 3 4

Boss CEB-3 Specifications

General

Effect Type	Bass Chorus
Input Impedance	1 M ohm
Output Impedance	1 k ohm
Bypass	Buffered Bypass
Recommended Load Impedance	10 k ohm or greater
Controls	Rate, Depth, Low Filter
Connectors	INPUT jack, OUTPUT jack, AC Adaptor jack
Power Supply	DC 9V
Dimensions	73 (W) x 129 (D) x 59 (H) mm
Accessories	Owner's Manual, Dry Battery 9V type (6F22/9V)
