Boss DS-1 Distortion User Manual

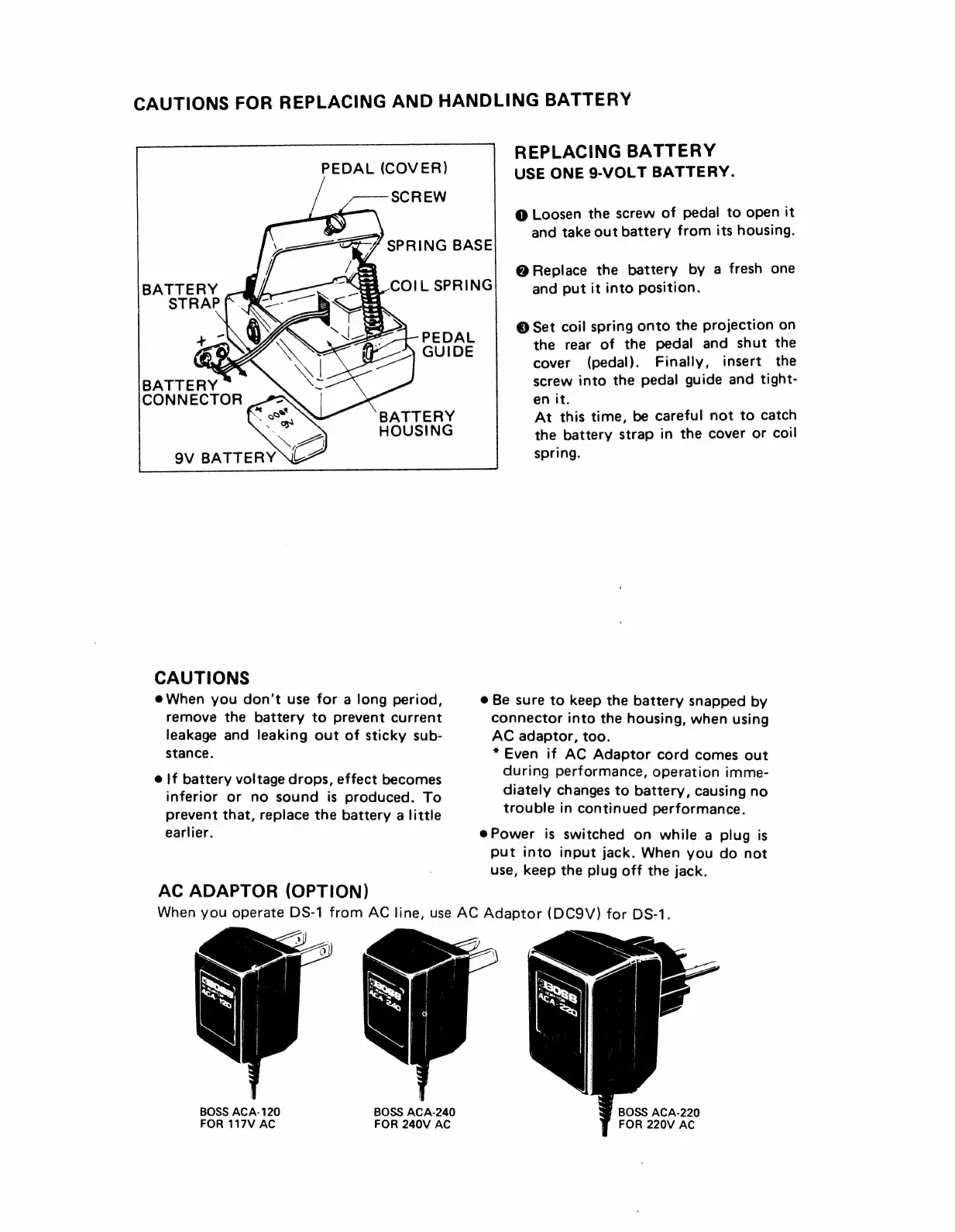

CAUTIONS
FOR
REPLACING
AND
HANDLING
BATTERY
REPLACING BATTERY
USE ONE 9-VOLT BATTERY.
PEDAL (COVER)
O Loosen the screw of pedal to openit
and take out battery from its housing.
SPRING BASE
© Replace the battery by a fresh one
COIL SPRING and put it into position.
©
Set
coil
spring
onto
the
projection
on
the
rear
of
the
pedal
and
shut
the
cover
(pedal).
Finally,
insert
the
screw
into
the
pedal
guide
and
tight-
en
it.
At
this
time,
be
careful
not
to
catch
the
battery
strap
in
the
cover
or
coil
spring.
HOUSING
9V BATTERY
CAUTIONS
e When you don't use for a long period,
remove the battery to prevent current
leakage and leaking out of sticky sub-
stance.
e If battery voltage drops, effect becomes
inferior or no sound is produced. To
prevent that, replace the battery a little
earlier.
AC ADAPTOR (OPTION)
e Be sure to keep the battery snapped by
connector into the housing, when using
AC adaptor, too.
* Even if AC Adaptor cord comes out
during performance, operation imme-
diately changes to battery, causing no
trouble in continued performance.
ePower is switched on while a plug is
put into input jack. When you do not
use, keep the plug off the jack.
When you operate DS-1 from AC line, use AC Adaptor (DC9V) for DS-1.
BOSS ACA-120
FOR 117V AC
BOSS ACA-240
FOR 240V AC
BOSS ACA-220
FOR 220V AC

Boss DS-1 Distortion Specifications

General

Effect Type	Distortion
Controls	Tone, Level, Distortion
Input Impedance	470 kOhms
Output Impedance	1 kOhms
Current Draw	4 mA
Power Supply	9V battery or DC adapter
Dimensions	73 mm (W) x 129 mm (D) x 59 mm (H)
Weight	400 g
Connectors	INPUT Jack, OUTPUT Jack, AC Adaptor Jack
Inputs	1/4 inch phone jack
Outputs	1/4 inch phone jack
