Making the Connections

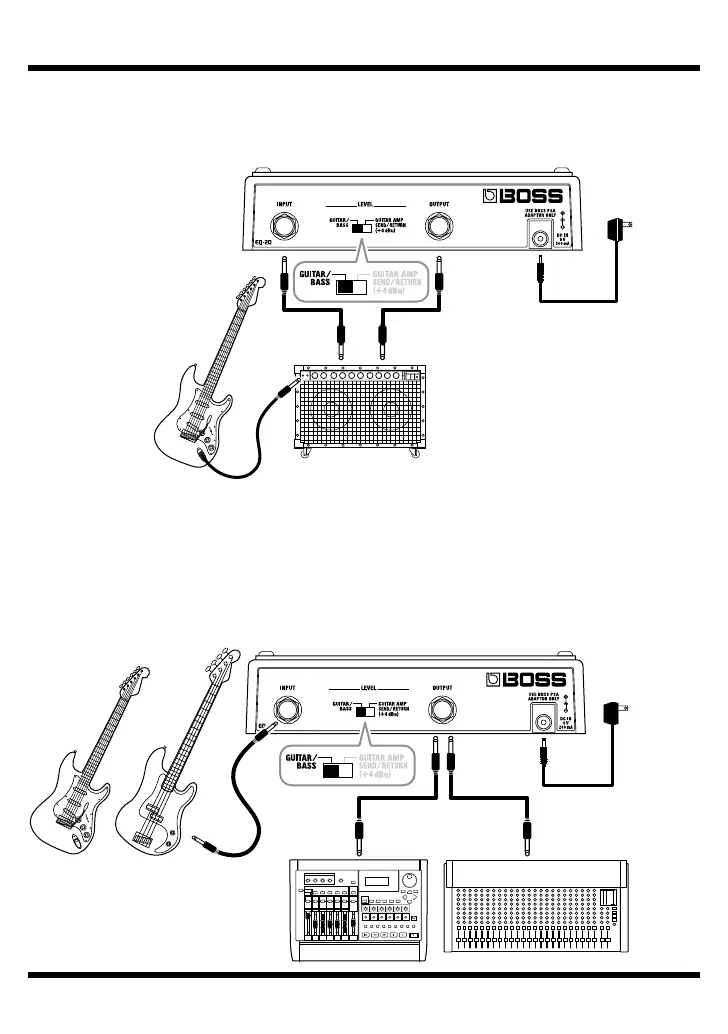

Connecting to SEND/RETURN on the Guitar Amp
The unit’s equalization effects are obtained after the preamp.
fig.02
* Match the send output level on the guitar amp and the level setting on the unit. If the
PEAK indicator lights up frequently, turn down the output on the guitar amp.
* When the guitar amp’s SEND/RETURN pedal is at +4 dBu, set the LEVEL switch on
the rear panel of the unit to +4 dBu.
Connecting to an MTR or Mixer
fig.03
Guitar Amplifier
RETURNSEND
Electric
Guitar
AC Adaptor
PSA-series
(option)
MixerMTR
Electric
Guitar
Electric
Bass
or
AC Adaptor
PSA-series
(option)
To Next Page
