15
Part Names and Functions

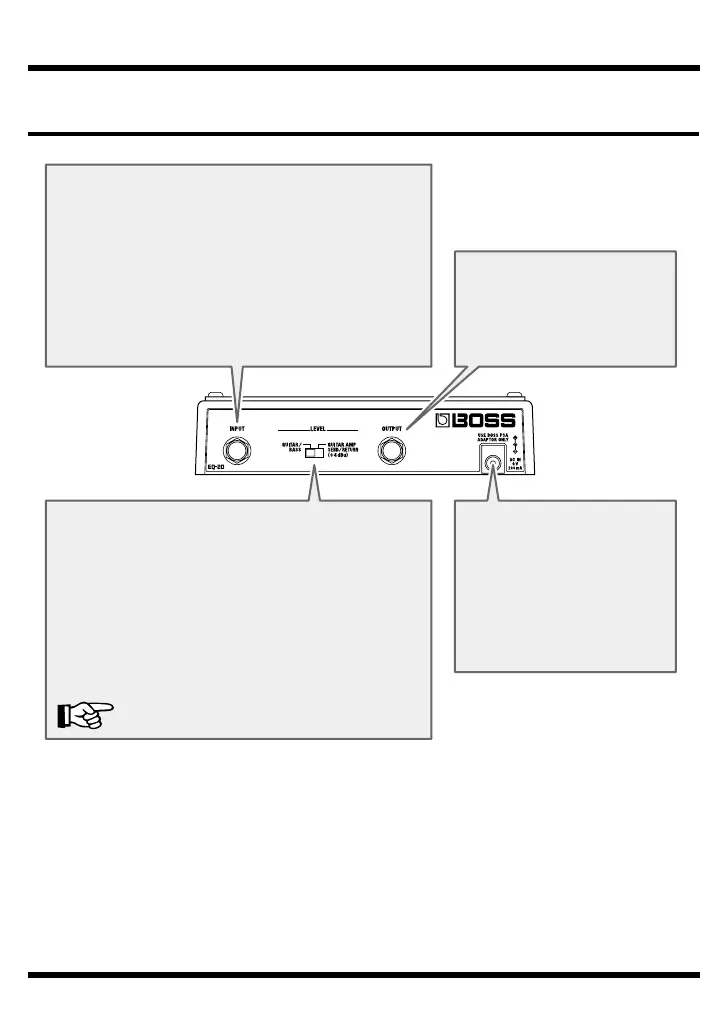

Rear Panel
fig.20
LEVEL Switch
This switch sets the input level to correspond to the
device connected to the INPUT jack.
GUITAR/BASS:
When using an electric guitar or bass guitar
GUITAR AMP SEND/RETURN:
When connected to send or return on a guitar
amp or the like, or when connected to a large-
volume output device
AC ADAPTOR Jack
This jack is for connecting an
AC adaptor (BOSS PSA-
series, sold separately).
Using an AC adaptor makes
possible long performances
with no worry about
batteries going dead.
INPUT Jack
This is the input jack for connecting to the output of
an electric guitar/bass or other instrument or effects
processor.
* The INPUT jack also doubles as the power switch when
the unit is running on battery power. The power comes
on when a plug is inserted into the INPUT jack, and
goes off when it is unplugged. Unplug any connected
cords when the unit is not in use.
OUTPUT Jack
This jack is for connection to
a guitar/bass amp, another
effects processor, mixer,
MTR, or the like.
“Making the Connections” (p. 5–6)
