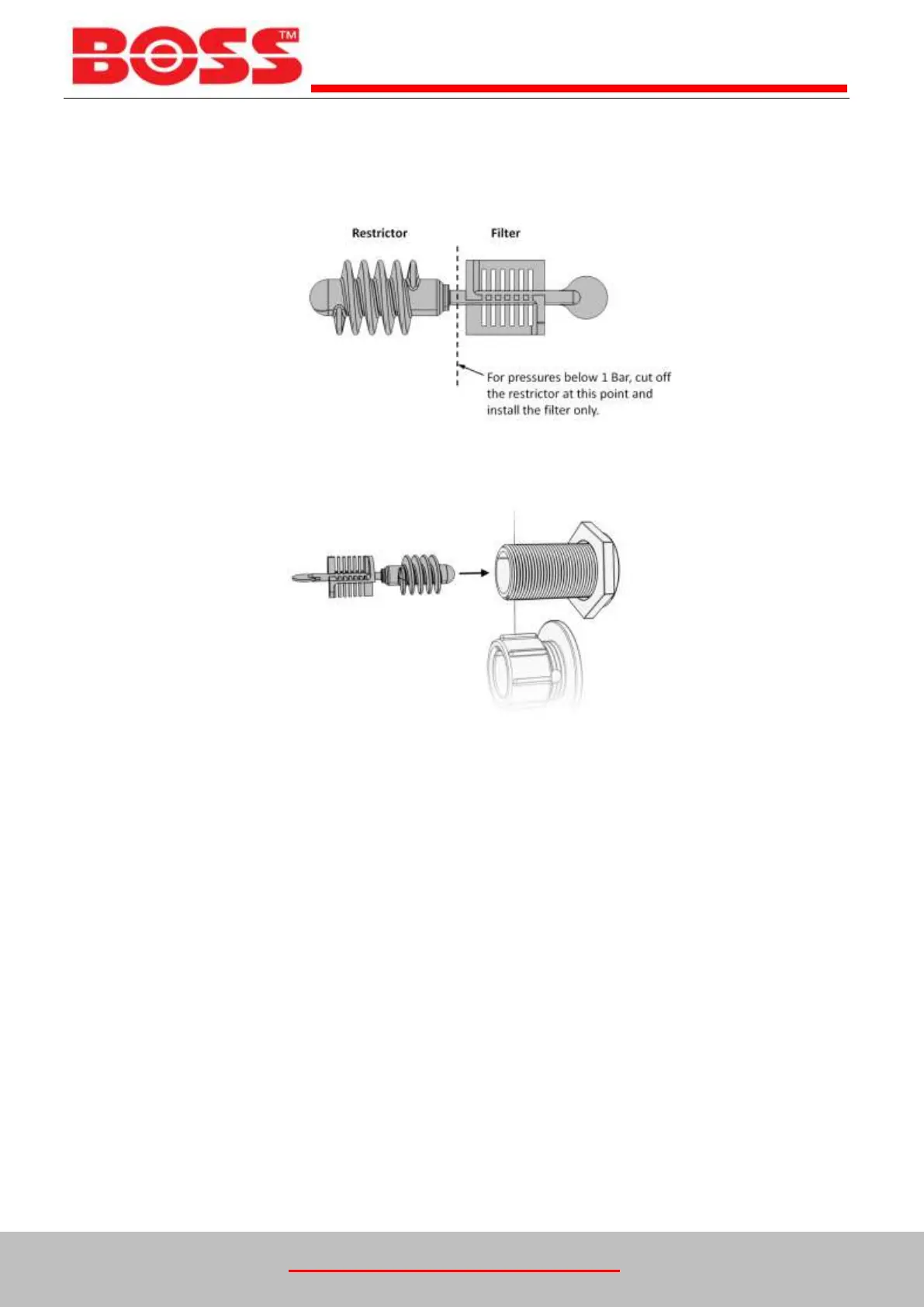

If no restrictor is required, the filter must be removed from one of the restrictors and installed on its own. The
following diagram shows how to remove the filter:
To install the flow restrictor/filter, hold it by the tab and push it into the opening of the float valve connection,
as shown in the diagram below:
