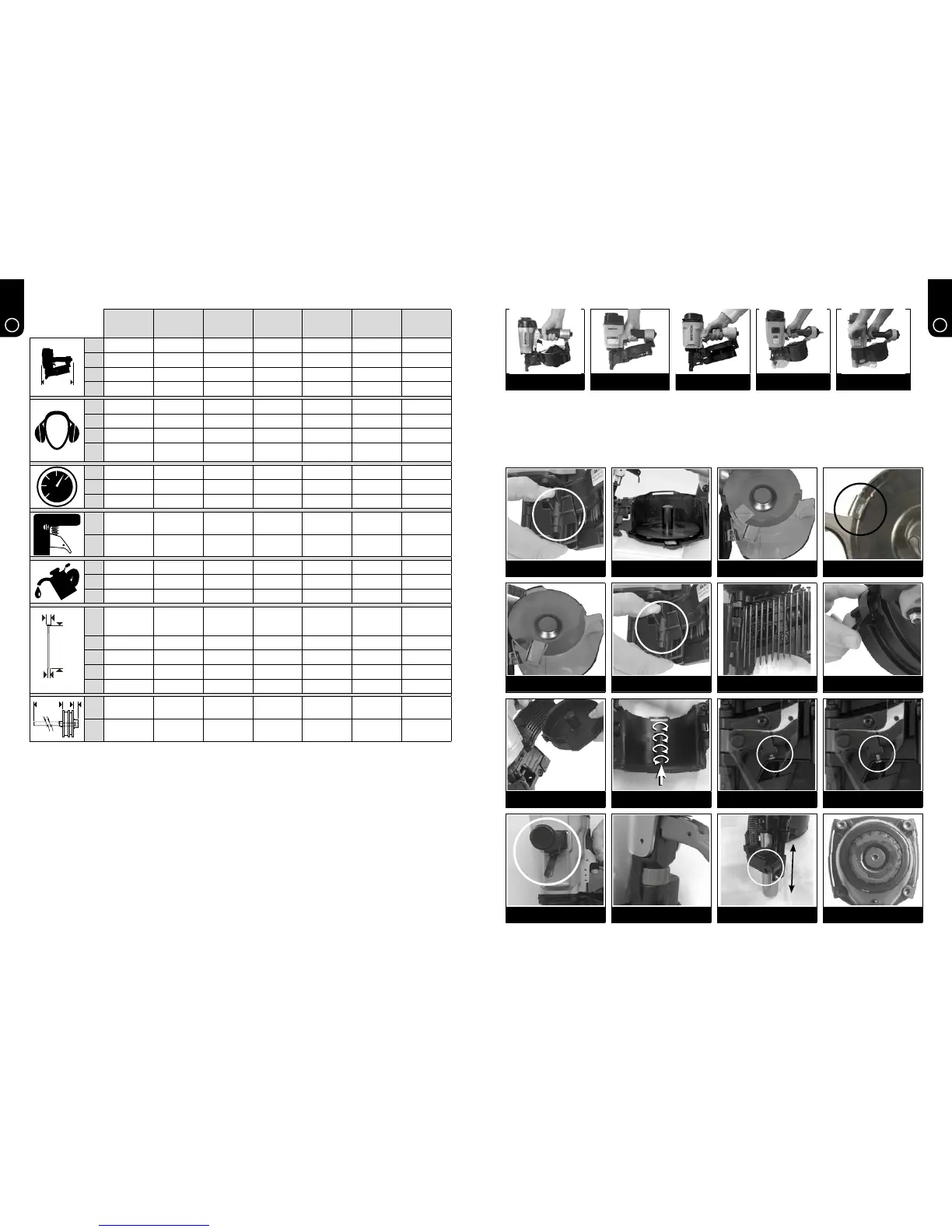

Bostitch IC50-2-E - Page 2

! !
IC50-2-E
Type 1
IC50-1-E
Type 1
IC60-1-E
Type 1
IC70-1-E
Type 1
IC90-1-E
Type 1
IC90P-1-E
Type 1
IC90C-1-E
Type 1
Xmm
A 305 mm 305 mm 270 mm 306 mm 386 mm 386 mm 386 mm
B 285 mm 285 mm 280 mm 322 mm 413 mm 413 mm 413 mm
C 128 mm 128 mm 133 mm 140 mm 182 mm 182 mm 310 mm
D 2.0 kg 2.0 kg 2.6 kg 3.6kg 5.3 kg 5.3 kg 6.3 kg
E 91.9 dB / 2.5 dB 91.9 dB / 2.5 dB 91.9 dB / 4 dB 90.1 dB / 4 dB 88.0 dB / 2.5 dB 88.0 dB / 2.5 dB 88.0 dB / 2.5 dB
F 95.5 dB / 2.5 dB 95.5 dB / 2.5 dB 96.0 dB / 4 dB 98.8 dB / 4 dB 97.5 dB / 2.5 dB 97.5 dB / 2.5 dB 95.8 dB / 2.5 dB
G 82.5 dB / 2.5 dB 82.5 dB / 2.5 dB 83.1 dB / 4 dB 85.8 dB / 4 dB 84.5 dB / 2.5 dB 84.4 dB / 2.5 dB 82.8 dB / 2.5 dB
H 2.7 / 1.4 m/s
2
2.7 / 1.4 m/s
2
2.5 / 1.3 m/s
2
3.2 1.6 m/s
2
2.9 / 0.1 m/s
2
2.9 / 0.1 m/s
2
<2.5 / 0.1 m/s
2
BAR/
LTR
I 8.4 Bar 8.4 Bar 7.0 Bar 7.0 Bar 8.3 Bar 8.3 Bar 8.3 Bar
J 4.9 Bar 4.9 Bar 4.9 Bar 4.9 Bar 4.9 Bar 4.9 Bar 4.9 Bar
K 1.6 Ltr 1.6 Ltr 1.3 Ltr 2.2 Ltr 7.0 Ltr 7.0 Ltr 7.1 Ltr
L(a) 2 1 1 1 1 1 1
L(b) 1 1 1 1 1 1 1
M BC602 BC602 BC602 BC602 BC602 BC602 BC602
N BC603 BC603 BC603 BC603 BC603 BC603 BC603
O O-lube O-lube O-lube O-lube O-Lube O-Lube O-Lube
Q(b)
R
Q(a)
P
N203-N250 (15º)
/ MPC
N203-N250 (15º)
/ MPC
N F F EPAL F
Q(a) 1.6-2.5 mm 1.6-2.5 mm 2.0-2.65 mm 2.5-3.1 mm 2.5-3.1 mm 3.3 mm 2.5-3.1 mm
Q(b) 25-50 mm 25-50 mm 25-60 mm 38-70 mm 45-90 mm 45-90 mm 45-90 mm
R 4.2-5.6 mm 4.2-5.6 mm 4.3-5.9 mm 6.0-7.2 mm 7.2 mm 8.7 mm 7.2 mm
S 300-350 300-350 300-350 225-300 225 225 225
T U
T N/A N/A 129.6-130.2 mm 143-143.5 mm 187 mm 187 mm 187 mm
U N/A N/A 4.0 mm 9.5 mm 12.6 mm 12.6 mm 12.6 mm
IC50-2-E / IC50-1-E IC60-1-E IC70-1-E IC90-1-E / IC90P-1-E IC90C-1-E
FIG. 1 FIG. 2 FIG. 3 FIG. 4
FIG. 5 FIG. 6 FIG. 7 FIG. 8
FIG. 9 FIG. 10 FIG. 11 FIG. 12
FIG. 13 FIG. 14 FIG. 15 FIG. 16
