Air losses
These can be caused by poor tightness of a union - check all unions, wetting them with soapy water.
Compressor not starting
If the compressor has trouble starting, check the following :
-Does mains power match that of the data-plate? (fig. 5)
-Are power cable extensions of adequate diameter or length?
-Is the work environment too cold? (under 0°C)
-Is there oil in the housing to ensure lubrication?
-Is power supplied to the electrical line? (sockets well connected, thermal- breaker, fuses in good condition).
Compressor not stopping
-If the compressor does not stop when maximum pressure is reached, the tank safety valve comes into operation. To
repair the valve, contact your nearest service centre.
IMPORTANT
-Do not on any account unscrew any connection while the tank is pressurised
-Always check if the tank is pressure free.
-Do not drill holes, weld or purposely deform the compressed air tank.
-Do not do any jobs on the compressor unless you have disconnected the power plug.
-Temperature in operating ambient: 0°C +35°C.
-Do not aim jets of water or inflammable liquids on the compressor.
-Do not place flammable objects near the compressor.
-During down-times, turn the pressure switch to position “0” (OFF).
-Never aim the air jet at people or animals
-Do not transport the compressor while the tank is pressurised.
-Be careful with regard to some parts of the compressor such as the head and delivery tubes, as they can reach high
temperatures. Do not touch these parts to avoid burns.
-Transport the compressor, lifting or pulling it with the appropriate grips or handles
-Keep children and animals well away from the machine operating area.
-If using the compressor for painting: a) Do not work in closed environments or near to naked flames b) Make sure
there is adequate exchange of air at the place of work c) Protect your nose and mouth with an appropriate mask.
Consult the tool / accessory manual and adhere to any safety requirements.
-If the electrical cable or plug are damaged, do not use the compressor and contact an authorised service centre to
replace the faulty element with an original spare part.
-If the compressor is located on a shelf or on a top above floor height, it must be secured to prevent it falling while in
operation.
-Do not put objects or your hands inside the protective grilles to avoid injury to yourself or damaging the compressor.
-Do not use the compressor as a blunt object toward things or animals, to avoid serious damage.
-When you have finished using the compressor, always remove the plug from the power socket.
ELECTRO-COMPRESSOR MODELS
For the European market, the compressor tanks are manufactured to meet Directive 2009/105/EC For the European
market, the compressors are manufactured to meet Directive 2006/42/EC.
Acoustic pressure measured free-field at a distance of 4m at maximum operating pressure.
Model MRC6 C24 C24-U110 C50 RC-10 RC-10-U110 PS20 PS20-U110
Tank Size (Ltr) 6 24 24 50 10 10 20 20
Horse Power / Kilo Watts Peak 1.5 / 1.1 2.5 / 1.8 2.5 / 1.8 2.5 / 1.8 2.0 / 1.5 2.0 / 1.5 2.5 / 1.8 2.5 / 1.8
Horse Power / Kilo Watts Running 1.5 / 1.1 2.2 / 1.6 2.2 / 1.6 2.2 / 1.6 1.85 / 1.4 1.85 / 1.4 2.3 / 1.7 2.3 / 1.7
Running Amps 5.5 7.5 14 7.5 6 6 8 15
Pump Type Oil-Free Oil Lubricated Oil Lubricated Oil Lubricated Oil-Free Oil-Free Oil Lubricated Oil Lubricated
Lwa dB(A) @ 4m 96.0 94.0 94.0 94.0 97.0 97.0 96.0 96.0
Lp dB(A) @ 4m 74.0 72.0 72.0 71.2 75.5 75.5 74.8 74.8
Maximum Working Presure (BAR / PSI) 8 / 116 10 / 145 10 / 145 10 / 145 10 / 145 10 / 145 10 / 145 10 / 145
Air Displacement (Ltr/Min / CFM) 170 / 6.0 233 / 8.2 233 / 8.2 233 / 8.2 216 / 7.6 216 / 7.6 240 / 8.5 196 / 6.9
Air Delivery ((Ltr/Min / CFM) @ 7 Bar) 75 108 100 108 82 82 138 100
Volts 230v 230v 110v 230v 230v 110v 230v 110v
Weight (Kgs) 10.5 25 25 36 18 18 35 35

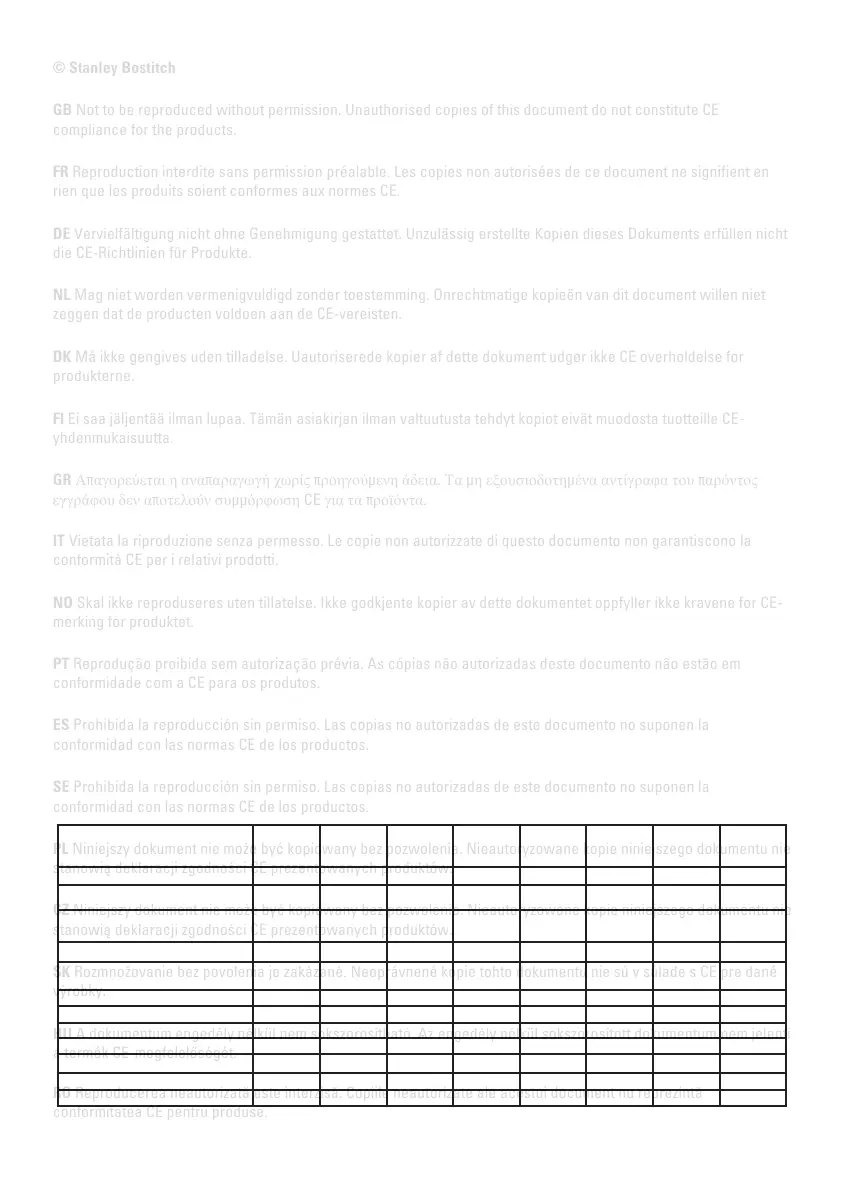

© Stanley Bostitch
GB Not to be reproduced without permission. Unauthorised copies of this document do not constitute CE
compliance for the products.
FR Reproduction interdite sans permission préalable. Les copies non autorisées de ce document ne signifient en
rien que les produits soient conformes aux normes CE.
DE Vervielfältigung nicht ohne Genehmigung gestattet. Unzulässig erstellte Kopien dieses Dokuments erfüllen nicht
die CE-Richtlinien für Produkte.
NL Mag niet worden vermenigvuldigd zonder toestemming. Onrechtmatige kopieën van dit document willen niet
zeggen dat de producten voldoen aan de CE-vereisten.
DK Må ikke gengives uden tilladelse. Uautoriserede kopier af dette dokument udgør ikke CE overholdelse for
produkterne.
FI Ei saa jäljentää ilman lupaa. Tämän asiakirjan ilman valtuutusta tehdyt kopiot eivät muodosta tuotteille CE-
yhdenmukaisuutta.
GR Απαγορεύεται η αναπαραγωγή χωρίς προηγούμενη άδεια. Τα μη εξουσιοδοτημένα αντίγραφα του παρόντος
εγγράφου δεν αποτελούν συμμόρφωση CE για τα προϊόντα.
IT Vietata la riproduzione senza permesso. Le copie non autorizzate di questo documento non garantiscono la
conformità CE per i relativi prodotti.
NO Skal ikke reproduseres uten tillatelse. Ikke godkjente kopier av dette dokumentet oppfyller ikke kravene for CE-
merking for produktet.
PT Reprodução proibida sem autorização prévia. As cópias não autorizadas deste documento não estão em
conformidade com a CE para os produtos.
ES Prohibida la reproducción sin permiso. Las copias no autorizadas de este documento no suponen la
conformidad con las normas CE de los productos.
SE Prohibida la reproducción sin permiso. Las copias no autorizadas de este documento no suponen la
conformidad con las normas CE de los productos.
PL Niniejszy dokument nie może być kopiowany bez pozwolenia. Nieautoryzowane kopie niniejszego dokumentu nie
stanowią deklaracji zgodności CE prezentowanych produktów.
CZ Niniejszy dokument nie może być kopiowany bez pozwolenia. Nieautoryzowane kopie niniejszego dokumentu nie
stanowią deklaracji zgodności CE prezentowanych produktów.
SK Rozmnožovanie bez povolenia je zakázané. Neoprávnené kópie tohto dokumentu nie sú v súlade s CE pre dané
výrobky.
HU A dokumentum engedély nélkül nem sokszorosítható. Az engedély nélkül sokszorosított dokumentum nem jelenti
a termék CE-megfelelőségét.
RO Reproducerea neautorizată este interzisă. Copiile neautorizate ale acestui document nu reprezintă
conformitatea CE pentru produse.
